ReadyLiftSKU: BSD-RLS-69-3496

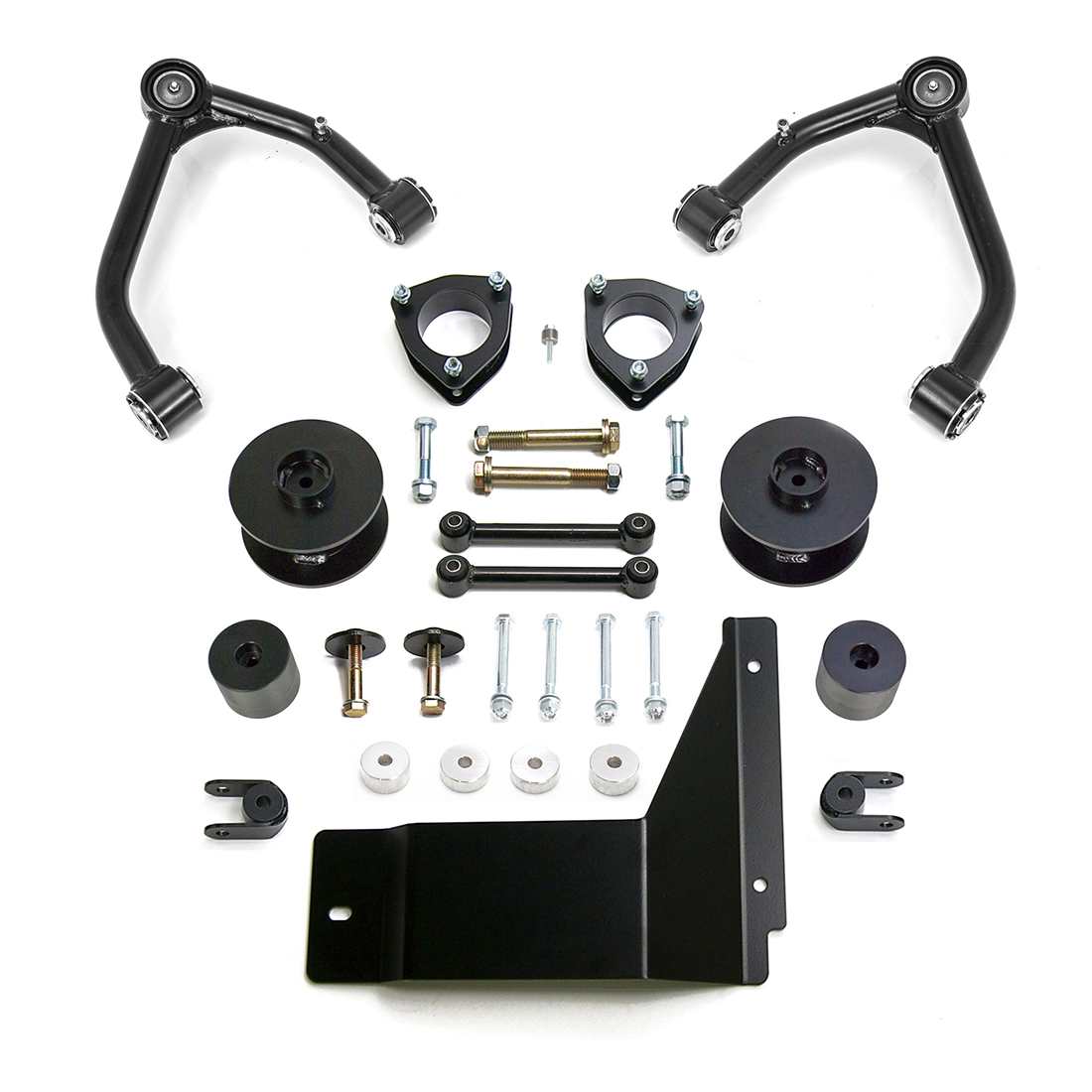

4 Inch SST Lift Kit GM Full-Size SUV 2WD/4WD (w/ Cast Al Or Stamped Steel Upper Control Arms) 2015-2020 - ReadyLIFT - 69-3496
$1,910.94
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Introducing the NEW ReadyLIFT 4.0-Inch SST Lift Kit for 2015-2020 1500-series GM 6-lug 4WD SUV/SUTs with factory Aluminum suspension. This innovative system features ultra-strong TCT free-floating pivot bushings for self-lubrication and friction elimination.
Developed over six months with rigorous on and off-road testing, the goal was to offer a true 4.0-Inch lift kit that's completely bolt-on, requiring no drilling, cutting, or welding. It increases ground clearance and accommodates up to 33-Inch tires on aftermarket wheels (commonly 33x12.50).
Minimal inner fenderwell trimming may be needed for 33x12.50 with aftermarket wheels. Compatible with 22x9.5 (5.5-Inch backspacing) and 17x9 (+0 offset) on 285/70R17 (no rubbing, minor trimming for 295/70r17).
Designed for aftermarket wheels, not AWD vehicles. The ReadyLIFT 4.0-Inch SST Lift Kit raises 2015-2020 Chevy Suburban, Chevy Tahoe, and GMC Yukon 1500 4WD SUVs 4.0-Inch in front with durable powder-coated steel strut extensions, preserving factory integrity without irreversible modifications.
It includes a 100 Percent DOM tubular upper control arm with OEM-style ball joints and TCT polyurethane bushings. Patent-pending CNC-machined 6061-T6 billet Aluminum differential drop brackets maintain front axle and CV angles, reducing installation time and ensuring no driveline problems.
A powder-coated plate steel skid plate provides differential protection. For the rear, 3.0-Inch powder-coated steel coil spring spacers maintain the factory ride, with longer rear sway bar end links, bump stop extensions, and steel rear shock extensions.
The kit is backed by a Limited Lifetime Warranty and ReadyGuard PowerTrain Warranty. Note: Designed for use with aftermarket wheels.
If using stock wheels and tires, a wheel spacer is required to prevent contact with the control arm at full locked turn. Installation may cause rear axle shift, requiring an adjustable rear track bar or drop bracket.
Not compatible with rear airbag suspension.
Features and Benefits:
New Tubular Upper Control Arms
GM SST Lift Kit
Max Lift: 4.0 InchF/3.0 InchR
Max Tire Dia: 33
For use with Factory Aluminum Knuckle Suspension or Stamped Steel Front Suspension
Not for use on cast steel suspension
Not for use on AWD vehicles
Fits 2015-2020 Tahoe, Suburban, Yukon Escalade
Note: Will not work with rear airbag suspension
Solid Mount and even load distribution
Press in 10.9 grade Hardware
OEM Style Cast Blocks
Will not deform or change shape
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 4.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Lift Height: 4.0 Inch
Material: Steel
Max Tire Size: 33 Inch
Rear Lift Component: Coil Spring Spacer
Rear Lift Height: 3.0 Inch
Shocks Included: No
Developed over six months with rigorous on and off-road testing, the goal was to offer a true 4.0-Inch lift kit that's completely bolt-on, requiring no drilling, cutting, or welding. It increases ground clearance and accommodates up to 33-Inch tires on aftermarket wheels (commonly 33x12.50).
Minimal inner fenderwell trimming may be needed for 33x12.50 with aftermarket wheels. Compatible with 22x9.5 (5.5-Inch backspacing) and 17x9 (+0 offset) on 285/70R17 (no rubbing, minor trimming for 295/70r17).
Designed for aftermarket wheels, not AWD vehicles. The ReadyLIFT 4.0-Inch SST Lift Kit raises 2015-2020 Chevy Suburban, Chevy Tahoe, and GMC Yukon 1500 4WD SUVs 4.0-Inch in front with durable powder-coated steel strut extensions, preserving factory integrity without irreversible modifications.
It includes a 100 Percent DOM tubular upper control arm with OEM-style ball joints and TCT polyurethane bushings. Patent-pending CNC-machined 6061-T6 billet Aluminum differential drop brackets maintain front axle and CV angles, reducing installation time and ensuring no driveline problems.
A powder-coated plate steel skid plate provides differential protection. For the rear, 3.0-Inch powder-coated steel coil spring spacers maintain the factory ride, with longer rear sway bar end links, bump stop extensions, and steel rear shock extensions.
The kit is backed by a Limited Lifetime Warranty and ReadyGuard PowerTrain Warranty. Note: Designed for use with aftermarket wheels.
If using stock wheels and tires, a wheel spacer is required to prevent contact with the control arm at full locked turn. Installation may cause rear axle shift, requiring an adjustable rear track bar or drop bracket.
Not compatible with rear airbag suspension.
Features and Benefits:
New Tubular Upper Control Arms
GM SST Lift Kit
Max Lift: 4.0 InchF/3.0 InchR
Max Tire Dia: 33
For use with Factory Aluminum Knuckle Suspension or Stamped Steel Front Suspension
Not for use on cast steel suspension
Not for use on AWD vehicles
Fits 2015-2020 Tahoe, Suburban, Yukon Escalade
Note: Will not work with rear airbag suspension
Solid Mount and even load distribution
Press in 10.9 grade Hardware
OEM Style Cast Blocks
Will not deform or change shape
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 4.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Lift Height: 4.0 Inch
Material: Steel
Max Tire Size: 33 Inch
Rear Lift Component: Coil Spring Spacer
Rear Lift Height: 3.0 Inch
Shocks Included: No
