Out of Stock
ReadyLiftSKU: BSD-RLS-69-3414

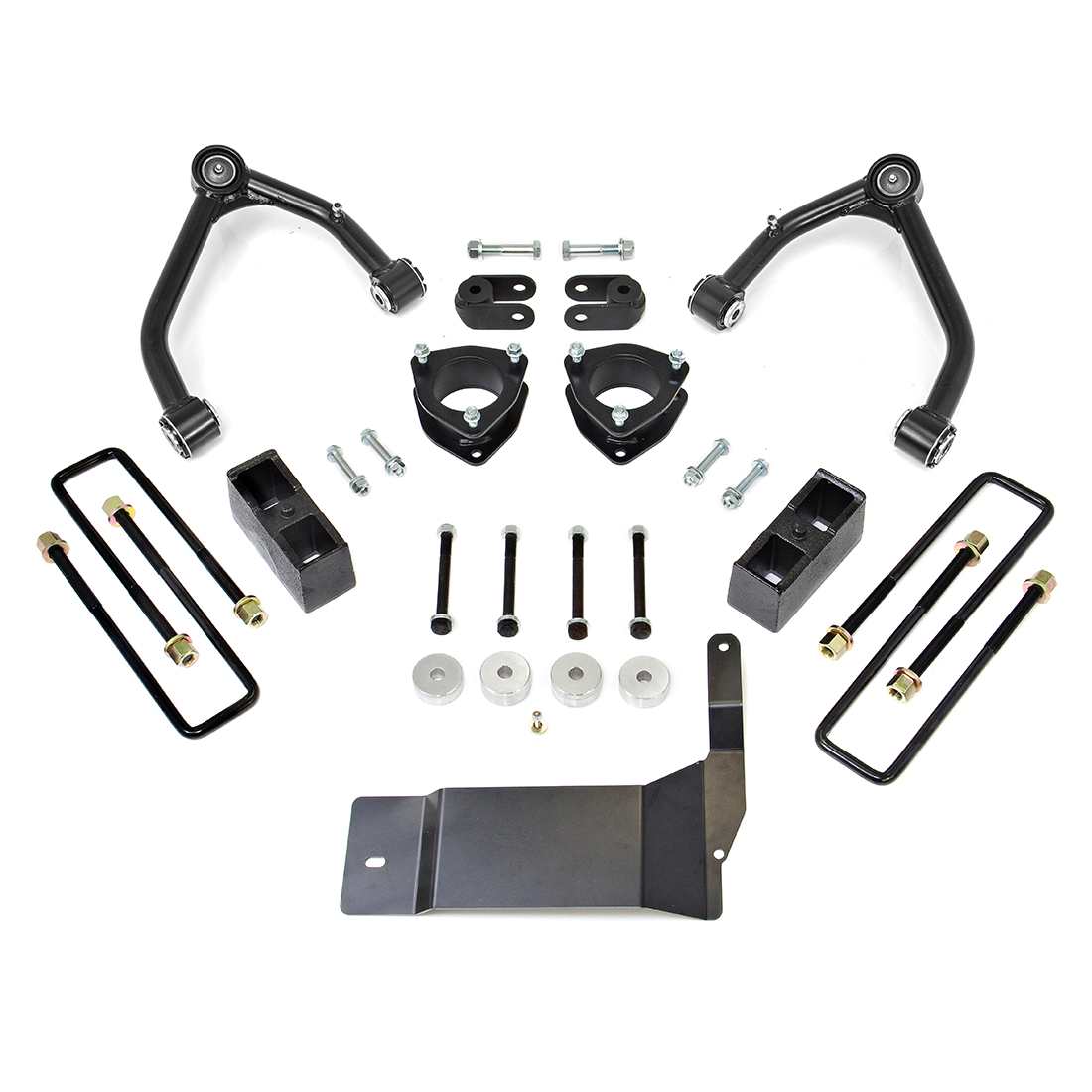

4 Inch SST Lift Kit 2014-2018 Silverado/Sierra 1500 2WD/4WD & Z71 (w/ Cast Al Or Stamped Steel Upper Control Arms) - ReadyLIFT - 69-3414
$1,364.94
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
New - now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. ReadyLIFT 69-3414 4-Inch SST Lift Kit is designed for the 2014-2018 GM 1500 4WD and Z71 trucks.
ReadyLIFT 69-3414 4-Inch SST Lift Kit combines many of the great features of our time-tested and very popular 4-Inch SST Lift Kit for the 2007-2013 trucks with new innovative features. Some features implemented into this system include a completely differential drop mounting system which utilizes machined billet circular spacers which allows for just the right amount of differential drop without interfering with the rear-mounted electric steering rack.
A rugged skid plate accompanies our differential drop system. Our 4-Inch SST Lift Kit uses the heavy duty ball joint found on the GM 2500 HD series trucks -- these ball joints are vastly superior and are already installed into the tubular steel upper Control Arms provided in the kit.
This kit also includes premium Tct uca inner bushings and new washer backing spacer sleeves which greatly prolong the life of the bushings. Our engineering testing has shown this 4-Inch SST Lift Kit is extremely versatile and strong allowing the customer to install up to a 33X11.50 tire (max) on 5.25-Inch backspacing wheel.
The kit is for use on trucks with the factory Aluminum or stamped steel upper and lower Control Arms. Not for use on trucks with cast steel upper Control Arms.
Z71 standard suspension okay. Note: The ReadyLIFT 69-3414 SST Lift Kit is designed for use with Aftermarket Wheels with a backspacing of 5.25 Inch.
If you intend to run the stock wheels with an aftermarket larger tire, a wheel spacer is required to prevent the tire from touching the control arm at full-locked turn. ReadyLIFT has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels.
To run the OE/Factory wheels AND tires, you will need to use the ReadyLIFT 1/2-Inch Billet Wheel Spacers. Note: Use of Auto 4 Hi feature not recommended.
Features and Benefits:
Fits 2014-2018 GM1500 2WD/4WD trucks
UCA Assembly with maximum lift of 4.0-Inch in the front and 1.75-Inch in the rear
Can accommodate tires up to 33
Not compatible with pre 2014 GM 1500 trucks
Not suitable for AWD Denali trucks
Designed for use with Aluminum alloy or stamped steel front suspension only
Not compatible with cast steel suspension
Features solid mount and even load distribution
Includes pressin 10.9 grade hardware
OEM style cast blocks that will not deform or change shape
No cutting or welding of OEM parts required
Maintains factory ride quality
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 4.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Lift Height: 4.0 Inch
Material: Steel
Max Tire Size: 33 Inch
Rear Lift Component: Block and U-bolt
Rear Lift Height: 1.75 Inch
Shocks Included: No
