3.5 Inch SST Lift Kit 2009-2013 Ford F-150 - ReadyLIFT - 69-2302

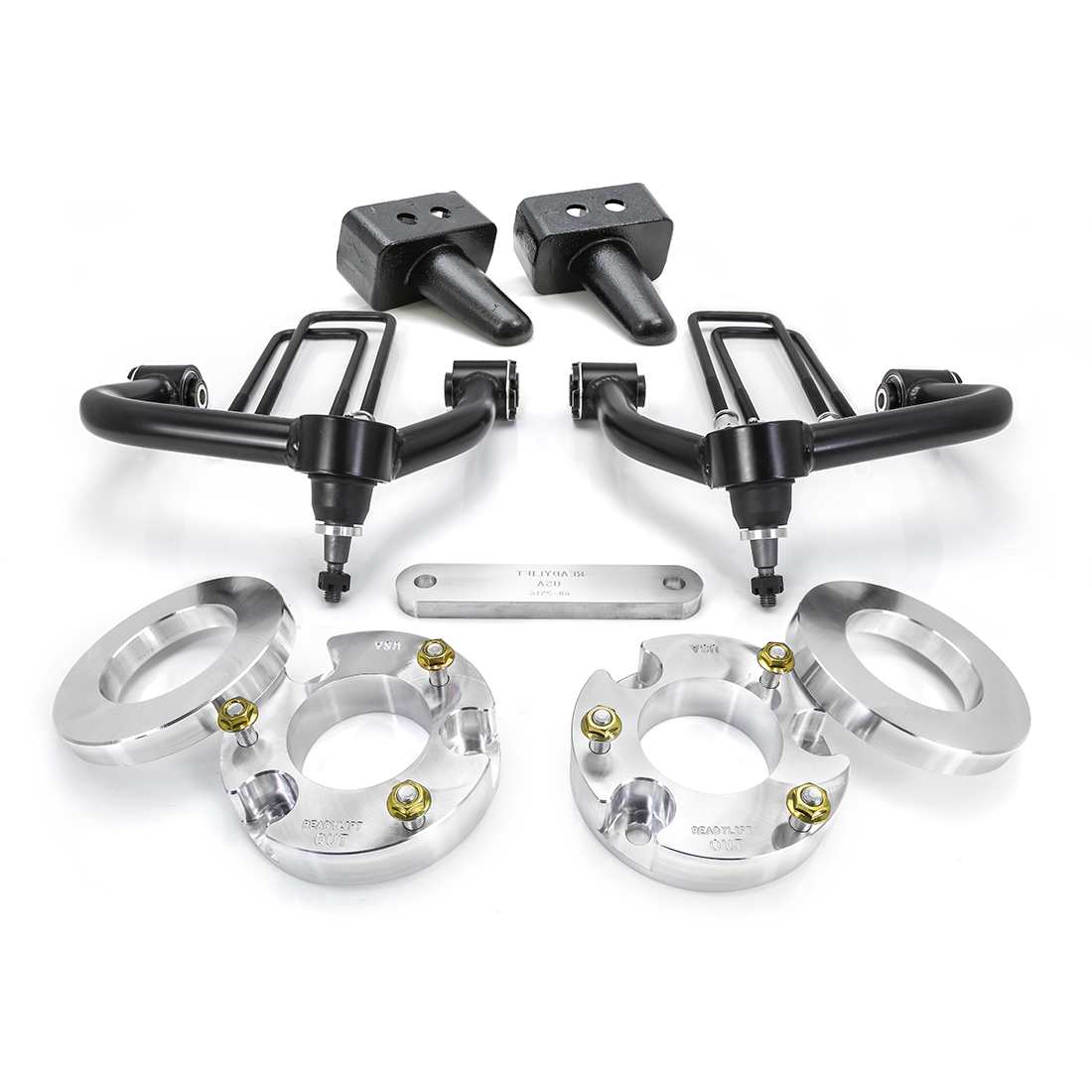

The ReadyLIFT 3.5-Inch SST Lift Kit is now equipped with ultra-strong TCT free-floating pivot bushings for self-lubrication and friction elimination. This kit is designed for F-150 owners, providing a front/rear lift option that raises the front of the vehicle by 3.5 inches and the rear by 2 inches, creating a popular lifted stance suitable for 35x11.50 tires.

These lift systems build upon the success of our tubular control arm design SST lift kits and offer advanced features while remaining easy to install. Key components of this kit include our DOM tubular steel Upper Control Arms, featuring a 14-degree ball joint cup for proper geometry and alignment, leading to longer tire life and excellent handling.

Each arm includes our proprietary ReadyLIFT ball joint, known for its durability. The arms also feature new TCT polyurethane bushings.

Achieving the 3.5-inch lift height is made possible through CNC-machined billet aerospace-grade Aluminum lift spacers with an offset top mount design that positions the strut correctly for proper suspension clearance. A machined billet pre-load spacer is included to preload the spring and act as a droop limiter, ensuring the durability of CV axles on 4WD models without exceeding OEM tolerances.

For rear lifting, OEM-style 3-inch tall cast rear lift blocks are provided, complete with built-in bump stop landing pads and dual locator pins. Additionally, a carrier bearing spacer is included for trucks with a two-piece driveshaft.

All these components work together to enhance your Ford F-150 truck's driving and handling, providing a true upgrade. Please note that this kit is not intended for use on factory pre-lifted/leveled trucks or those with the off-road package.

It's essential to check your truck's factory height before ordering or installing the kit.

Trucks with more than 22 inches of wheel hub to fender lip height may require less lift.

Features and Benefits:


Fits 2009-13 Ford F150 2WD/4WD

3.5-Inch SST Lift Kit

Includes strong tubular steel Control Arms with heavy duty ball joints

Includes OEM style cast iron rear block for correct driveshaft angle

Allows for up to 35-Inch tall tires

Solid Mount and even load distribution

Will not deform or change shape

No Cutting of OEM Parts or Welding

Maintains Factory Ride

Limited Lifetime Warranty

Note: Not for use on trucks that are factory prelifted/leveled or that have the off-road package

Check factory height prior to ordering or installing


Details:


Fitment: Direct Fitment

Front Lift Component: Spacer

Front Lift Height: 3.5 Inch

Front or Rear: Front and Rear

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 3.5 Inch

Max Tire Size: 35 Inch

Rear Lift Component: Block and U-bolt

Rear Lift Height: 2.0 Inch

Shocks Included: No
