High Clearance Anti-Intrusion Beams 2019-2025 Ford Ranger 2WD/ 4WD - ReadyLIFT - 67-2900

ReadyLIFT now offers a solution for Ford Ranger trucks, specifically the 2019-2023 2WD/4WD models, looking to accommodate larger wheels and tires. Our 67-2900 Ranger replacement High-Clearance Anti-Intrusion Beams are designed to address the challenge of running larger tires without interfering with the factory offset intrusion beams (commonly referred to as crash bars).

These factory beams serve a vital role in collision safety, but they limit tire clearance when using ReadyLIFT Ranger leveling and lift kits. Our high-clearance beams are engineered for precision using heavy-duty laser-cut and robot-welded steel, meeting the engineering specifications of the factory anti-intrusion beams, as confirmed by Finite Element Analysis.

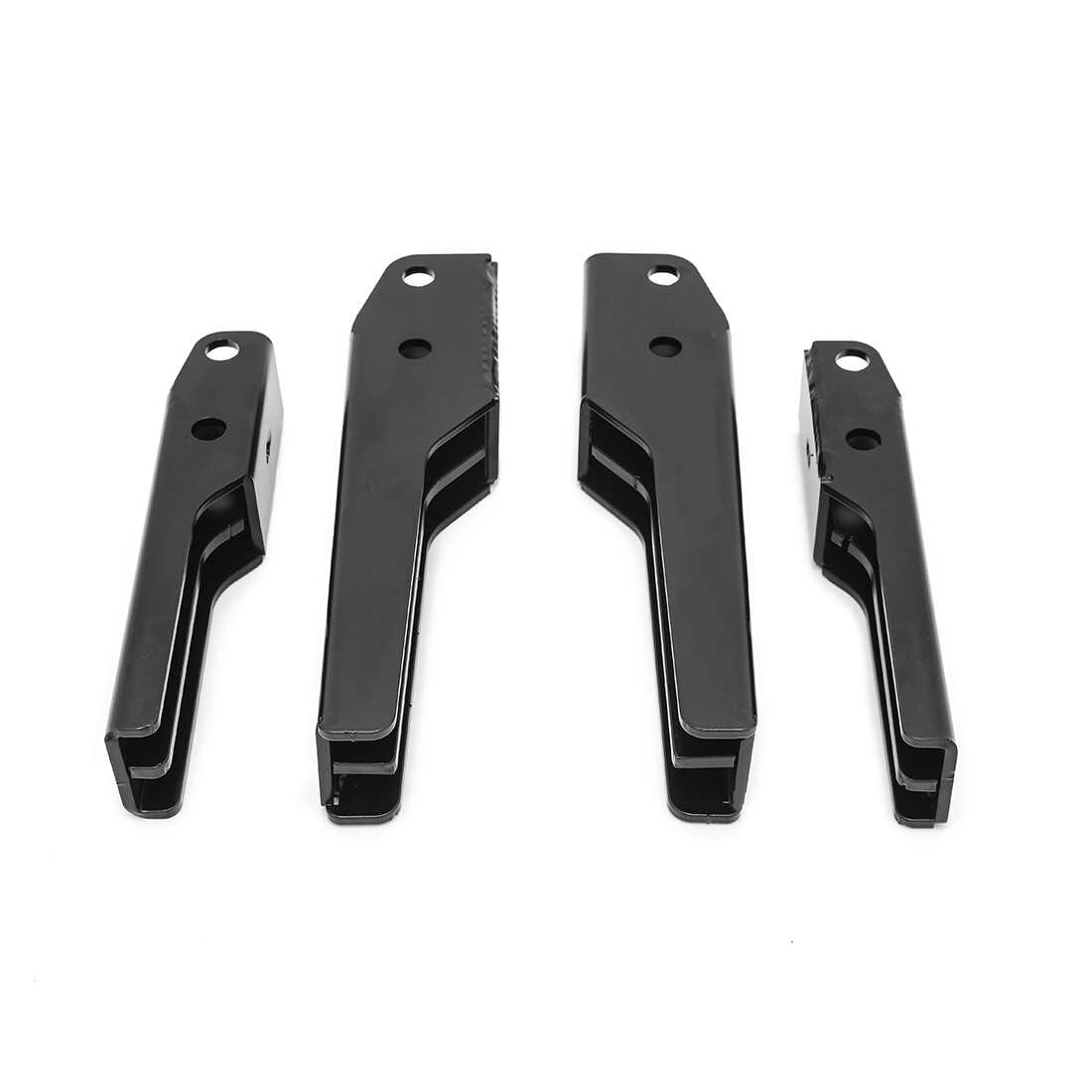

This accessory kit, designated as 67-2900, is tailored exclusively for the 2019-UP Ford Ranger front suspension. It includes two forward and two rearward replacement high-clearance anti-intrusion beams.

Installation is a straightforward process involving minor disassembly to remove the factory beams and replace them with the ReadyLIFT high-clearance beams. Notably, the notched design of these beams ensures increased tire turning clearance, enabling the use of up to a 285/70-17 tire (33 Inch) on vehicles equipped with ReadyLIFT 3-Inch lift kits.

The entire installation can be completed in approximately 2 hours, whether your Ford Ranger is lifted, leveled, or in its stock configuration. Throughout this process, the safety and security features that protect occupants are retained, providing peace of mind to Ford Ranger owners seeking improved tire clearance for their vehicles.

Features and Benefits:


High clearance antiintrusion beams

Compatible with 2019-2023 Ford Ranger 2WD/4WD

Easy installation with minor disassembly and trimming

Retains safety and security benefits of occupant protection

Replaces factory antiintrusion beams

Notched design increases tire turning clearance

Allows for up to 285/7017 tire (33 Inch) on ReadyLIFT 3-Inch lift kit equipped vehicles


Details:


Cutting Required: Yes

Fitment: Direct Fitment

Install Difficulty: Easy Do It Yourself (DIY)

Installation Time: 2 Hours

Material: Welded Steel
