2.25 Inch Front Leveling Kit W/ Control Arms GM 1500 Truck / SUV 6-Lug 2017-2018 - ReadyLIFT - 66-3086

ReadyLIFT offers a solution for leveling 2014-2018 GM 1500 trucks. GM modified the upper control arms to stamped steel, which lacks support for the factory ball joint in lifted scenarios.

GM prohibits lift or leveling kits for these vehicles. This kit is compatible with GM 1500 trucks with stamped steel or aluminum control arm suspension (not cast steel).

You can identify your control arms [here]( ReadyLIFT solution includes a CNC machined billet aircraft-grade aluminum 2.25-Inch leveling kit and durable DOM-tube steel upper control arms.

These arms replace the factory stamped steel ones, featuring heavy-duty ball joints and maintenance-free anti-resistance bushings. This combination (PN 66-3086) levels 2017-2018 GM 1500 trucks, maintaining the factory ride and preventing stamped steel control arm failure.

It allows up to 33x11.50 tires. Some vehicles may need the 15-3485 1/2-Inch front wheel spacer with certain factory wheels.

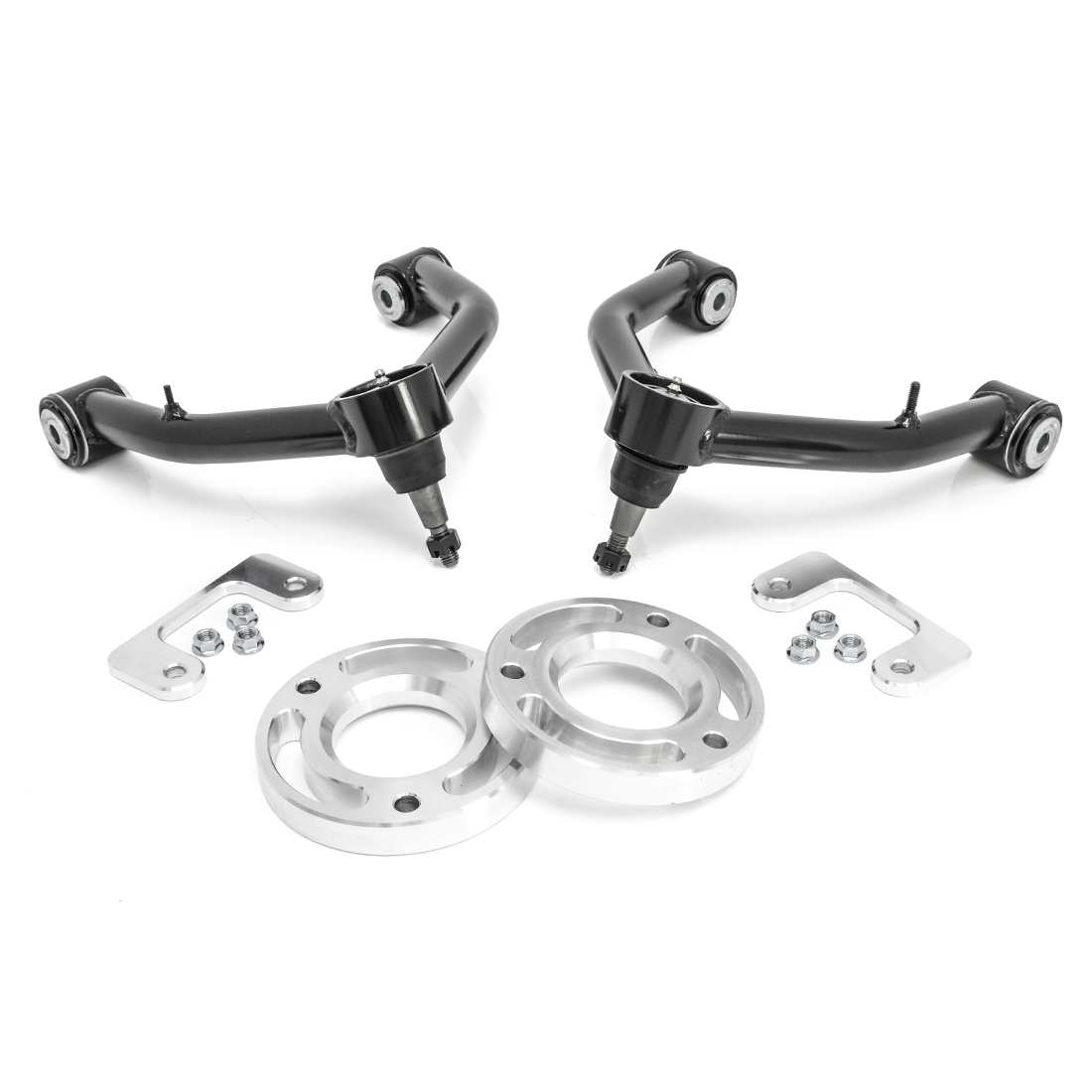

The kit includes CNC machined billet aluminum construction leveling kit, DOM tube steel upper control arms, heavy-duty ball joints, and maintenance-free bushings with side biter splined washers for alignment. To ensure proper fitment, measure from the wheel hub center to the fender's bottom edge at 12 o clock while the wheels face forward.

If it's over 22 Inch, the truck has pre-installed lift. Install the ReadyLIFT leveling kit without the lower horseshoe spacer for correct front lift height and suspension geometry.

Incorrect use on trucks with over 22-Inch may result in component interference and excessive wear. For more information, visit [here]( or watch the [video](youtu.be/mGWolZSgu4k) about this kit.

Some vehicles may require the 15-3485 1/2-Inch front wheel spacer when using factory wheels, depending on wheel options and backspacing. To fit a 285 or larger tire on factory wheels, you may need 1/2-Inch wheel spacers in front.

Features and Benefits:


Max lift of 2.25 inches

Compatible with 2014-2018 Silverado/Sierra 1500 trucks

High quality and welldesigned for proper leveling lift on new body style GM 1500 trucks

Made from CNC machined aircraft 6061T6 billet construction

Heavy-duty tubular steel upper control arms with heavy duty ball joints and maintenance free bushings

Not compatible with vehicles equipped with factory AirRide

Vehicles with Magnetic Ride Control will require recalibration

1/2 inch wheel spacers may be required when using 285 or larger tires on factory wheels

For use on 2017 and newer models with stamped steel upper control arms


Details:


Fitment: Direct Fitment

Front Lift Height: 2.25 Inch

Front or Rear: Front

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 2.25 Inch

Max Tire Size: 33 Inch
