4 Inch Coil Spring Lift Kit With Falcon Shocks And Radius Arms 2017-2022 Ford F-350/F-250 Super Duty Diesel 4WD - ReadyLIFT - 49-27421

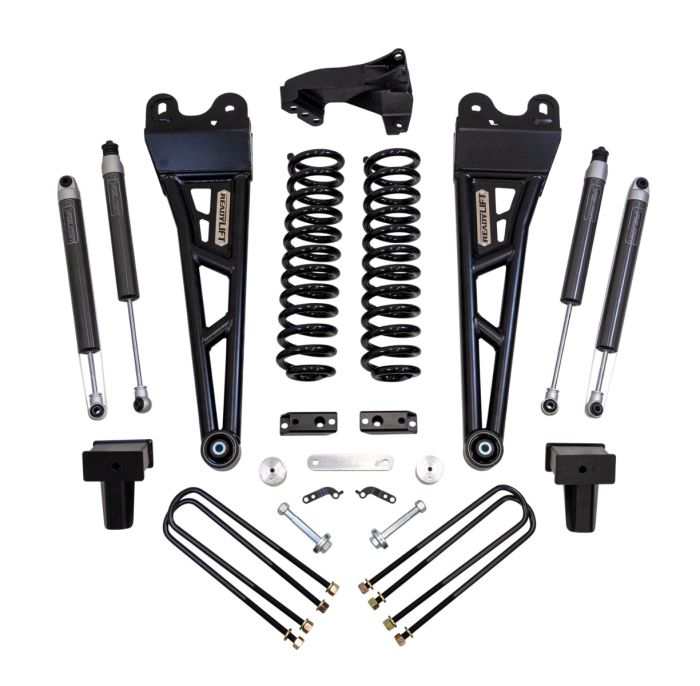

ReadyLIFT Suspension now offers its first 4-Inch Coil Spring Lift Kit for 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke trucks equipped with new Tubular Radius Arms. This kit, designated as 49-27421, comprises front and rear Falcon 1.1 Monotube series performance shocks, a front track bar relocation bracket, tubular radius arms, and rear fabricated blocks.

It provides an excellent solution for lifting F250/F350 Super Duty trucks to accommodate larger tires, with the coil spring system enabling increased tire sizes and widths while enhancing ground clearance. This lift height strikes the ideal balance for Super Duty driving dynamics and maximum tire size while retaining everyday practicality.

The newly designed Radius Arms address suspension geometry correction for lifted models. These heavy-duty radius arms are engineered to withstand the rigors expected from Super Duty trucks and surpass factory radius arms with added support gussets.

Their inward formation allows for increased tire clearance and the installation of oversized tires, all through a direct bolt-on design that ensures quick and easy installation. This optimal lift height accommodates tires up to 37-Inch in height, delivering an exceptional ride and handling performance.

The key components for improving your ride include specially engineered coil springs, Falcon shocks, and track bar relocation. This combination transcends a mere lift kit, offering both enhanced performance and ride quality on and off-road.

The ReadyLIFT 4-Inch Coil Spring lift kit for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, proven bump-stop extension brackets, and new front sway bar frame mount extension brackets to maintain the factory sway bar's correct position. If you seek a rugged appearance and a smooth yet controlled ride, the new Super Duty 4-Inch Coil Spring Suspension Kit System is your answer.

Features and Benefits:


Fits 2017-2022 Ford Super Duty Power Stroke 4WD

4-Inch coil spring lift kit

(4) Monotube Falcon 1.1 shocks included

Eyecatching HD tubular radius arms for improved caster angle

Bolton installation, no structural modifications required

Allows for up to 37-Inch tall tires on 9-Inch wide wheels with +18 offset

Designed for diesel trucks with rear singlewheel only

Not recommended for 2WD or gas trucks

May result in slightly lower ride height for 2017-2019 models

Not validated for fitment and drivability on single cab configurations by ReadyLIFT


Details:


Fitment: Direct Fitment

Front Lift Component: Coil Spring

Front Lift Height: 4.0 Inch

Front Shocks: Falcon 1.1 Monotube

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 4 Hours

Lift Height: 4.0 Inch

Max Tire Size: 37 Inch

Rear Lift Component: Block

Rear Lift Height: 4.0 Inch

Rear Shocks: Falcon 1.1 Monotube

Shocks Included: Yes
