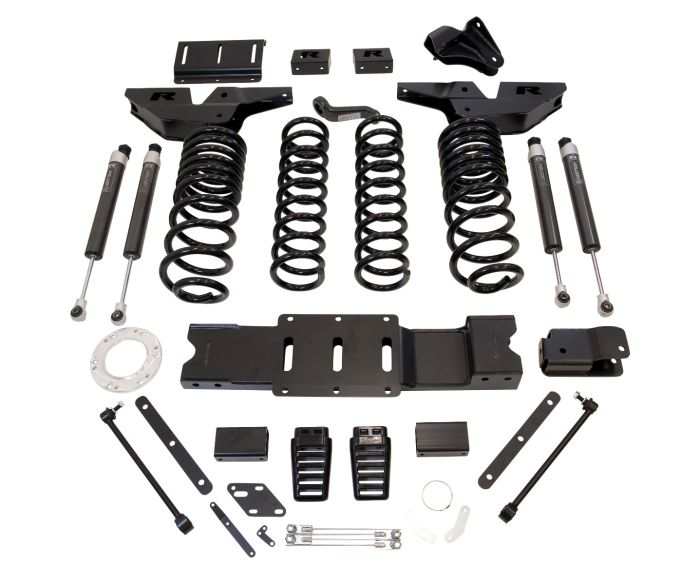

6 Inch Lift Kit 2019-2024 Ram 2500 W/ Falcon Shocks And Ring And Cross Member Standard Output Diesel Motor - ReadyLIFT - 49-19610

ReadyLIFT is excited to announce PN: 49-19610, an all-new 4-corner coil spring 6-Inch lift kit with Falcon 1.1 Monotube shocks for the 2019-2023 Ram 2500 HD trucks equipped with the Standard Output Cummins turbodiesel engine providing plenty of clearance for an aggressive 37x12.5 tire and up to -18 offset wheel with no rubbing; delivering a beefy, tough look. The 49-19610 is specifically designed for Ram Heavy Duty applications with proprietary front and rear coil springs, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, forged dropped pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front and rear shocks that are included in this premium kit.

This kit includes a unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case aligning the front output shaft for improved driveline angles. Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

ReadyLIFT 6-Inch lift kit with the Drive Line Indexing System (DIS) addresses this condition by re-clocking [indexing] the transfer case and providing a stout heavy-duty steel cross member that accommodates the new T-case position, all resulting in a smooth driving experience on or off-road.

Features and Benefits:


Designed for Ram Heavy Duty applications

Proprietary front and rear coil springs

Heavy-duty radius arm drop brackets

Heavy-duty fabricated steel front and rear track bar brackets

Forged dropped pitman arm

Front/rear sway bar relocation brackets

Bump stop extensions

Prevents overcompression of new Falcon 1.1 Monotube front and rear shocks

Premium kit includes Falcon 1.1 Monotube front and rear shocks

Only available for 2500 HD Standard Output Motor and 68RFE Transmission

Note: Single Cab configuration not validated for fitment and drivability by ReadyLIFT


Details:


17 Inch Wheel Max Backspacing: 4.8 Inch

18 Inch Wheel Max Backspacing: 4.8 Inch

20 Inch or Larger Wheel Max Backspacing: 4.8 Inch

Average Installation Time: 120 Minutes / 1.5 Minutes

Bushings Included: No

Fitment: Direct Fitment

Front Lift Component: Coil Spring

Front Lift Height: 6.0 Inch

Front Shocks: Falcon 1.1 Monotube

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 6.0 Inch

Max Tire Diameter Custom Fit: 37 Inch

Max Tire Diameter Sure Fit: 35 Inch

Max Tire Size: 37 Inch

Maximum Lift: 6.0 Inch

Mounting Hardware Included: Yes

Rear Lift Component: Coil Spring

Rear Lift Height: 6.0 Inch/4.0 Inches

Rear Shocks: Falcon 1.1 Monotube

Shock Brand: Falcoln

Shocks Included: Yes
