Out of Stock
ReadyLiftSKU: BSD-RLS-49-1961
6 Inch Lift Kit 2019-2024 Dodge Ram 2500 4WD W/ Bilstein Shocks With Driveline Indexing Kit - ReadyLIFT - 49-1961
$3,249.94
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
The new Ram HD trucks are more popular than ever and our ReadyLIFT 6-Inch lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2023 Ram HD 6-Inch lift kit and make it better?
How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.
Our new 49-1961 6-Inch lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission cross-member. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6-Inch lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road.

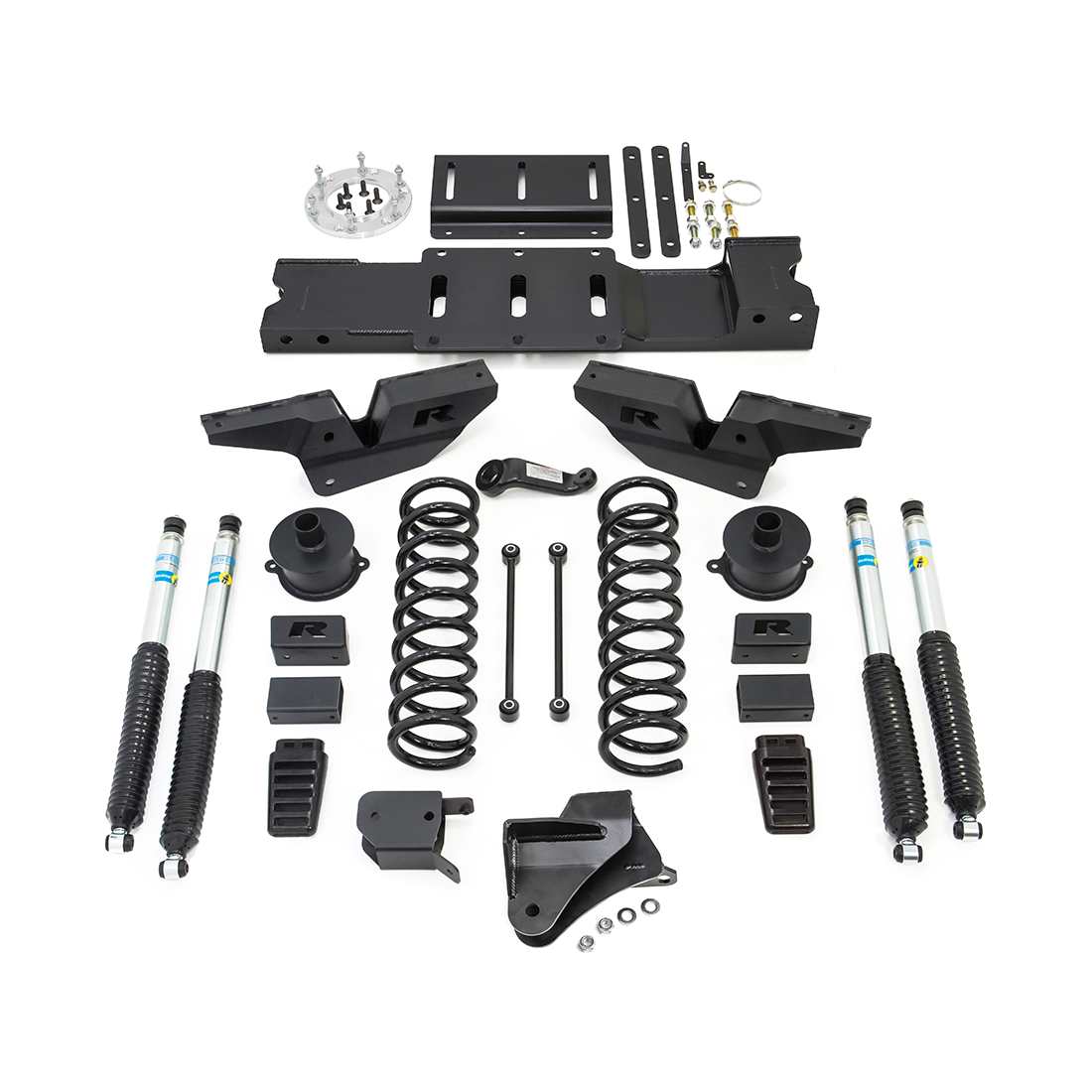

Kit 49-1961 includes everything in our popular 49-1960 6-Inch lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6-Inch lift front springs, 3.5-Inch lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit.
For use on diesel 2500 trucks only.
Features and Benefits:
2019-2023 Ram 2500 4WD HD 6-Inch lift kit
6inch front/3.5inch rear lift
Includes all-new transfer case clocking ring
New heavy-duty transmission cross-member
4 Bilstein 5100 series shocks tuned specifically for Ram 2500 HD
For use on Diesel engine Ram 2500 4WD HD trucks only
Allows for up to 37x13.50 tires on 9.5-Inch wide wheels with 18 offset
Does not work with Factory Air suspension or Auto Level system (factory helper bags)
Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT
Details:
Fitment: Direct Fitment
Front Lift Component: Coil Spring
Front Lift Height: 6.0 Inch
Front Shocks: Bilstein 5100
Front or Rear: Front and Rear
Fuel Type: Diesel
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Lift Height: 6.0 Inch
Max Tire Size: 37 Inch
Rear Lift Component: Coil Spring Spacer
Rear Lift Height: 3.5 Inch
Rear Shocks: Bilstein 5100
Shocks Included: Yes
