4.5 Inch Coil Spring Lift Kit 2019-2024 Ram 3500 Diesel 4WD - ReadyLIFT - 49-19430

The all-new 4.5-Inch Coil Spring Lift Kits allow for even more ground clearance while going to a 37-Inch tire. Springing up to the new 4.5-Inch lift yields all the bells and whistles of a big 6-Inch kit but at a slightly lower, garage-able stance.

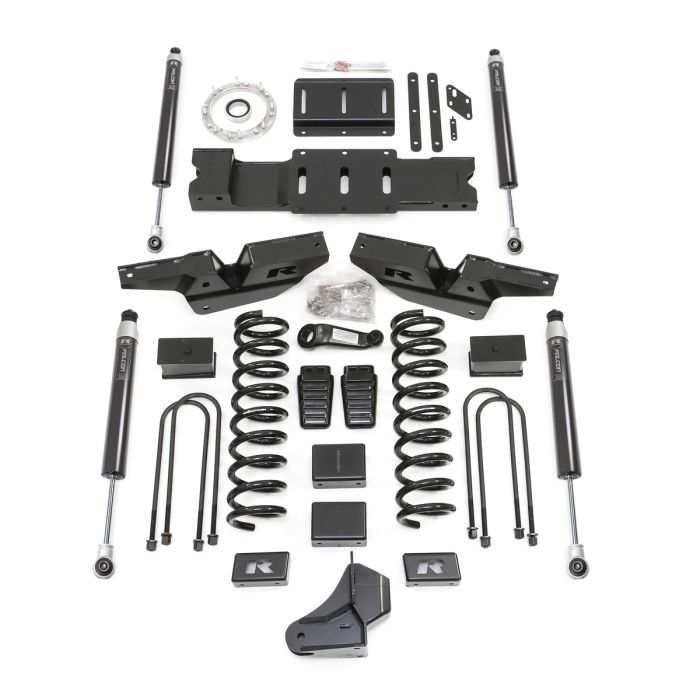

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front and rear shocks. The 4.5-Inch Ram HD kit includes our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.

The Ram 3500 HD comes with a high-output diesel engine DIS system. Kit 49-19430 includes the new DIS re-positioning components, heavy-duty and great riding 4.5-Inch lift front springs, 3-Inch lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube front/rear shocks. *Kit will not fit any models with the standard output 6.7L diesel motor, Hemi Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.

Features and Benefits:


2019-2023 Ram 3500 4WD HD 4.5-Inch lift kit

4.5inch front with rear blocks lift kit

Includes all-new transfer case clocking ring and new heavy-duty transmission cross-member

Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD

For use on Diesel engine Ram 3500 4WD HD trucks only

Allows for up to 37x13.50 tires on 20-Inch x 9-Inch wide wheels with 18 offset

Does not work with Factory Air suspension, Auto Level system (factory helper bags), Hemi Gasoline engine, dually models, Classic

4.54.5inch front with rear blocks lift kit


Details:


Fitment: Direct Fitment

Front Lift Component: Coil Spring

Front Lift Height: 4.5 Inch

Front Shocks: Falcon 1.1 Monotube

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 4.5 Inch

Max Tire Size: 37 Inch

Rear Lift Component: Block

Rear Lift Height: 3.0 Inch

Rear Shocks: Falcon 1.1 Monotube

Shocks Included: Yes
