4.5 Inch Coil Spring Lift Kit 2019-2024 Ram 2500 Diesel 4WD - ReadyLIFT - 49-19420

The all-new 4.5-Inch Coil Spring Lift Kits allow for even more ground clearance while going to a 37-Inch tire. Springing up to the new 4.5-Inch lift yields all the bells and whistles of a big 6-Inch kit but at a slightly lower, garage-able stance.

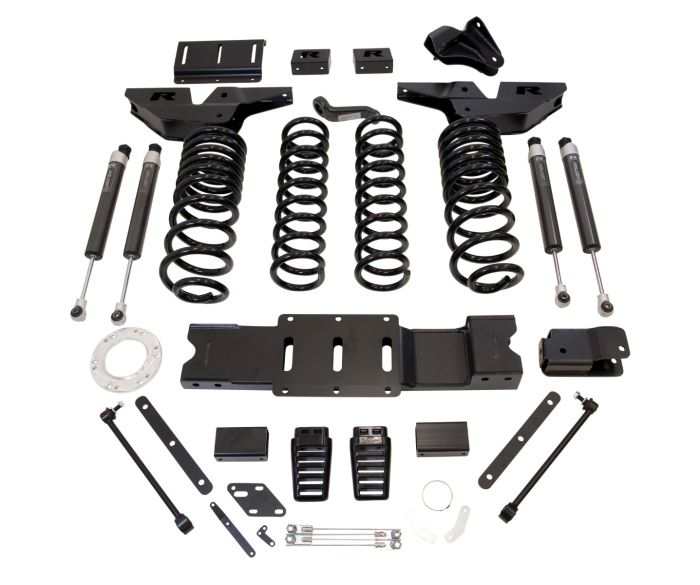

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front and rear shocks. Both 4.5-Inch Ram HD kits include our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.

The Ram 2500 HD comes with the standard output diesel engine DIS system. Kit 49-19420 includes everything in our popular 6 lift kit as well as these new DIS re-positioning components.

Heavy duty and great riding 4.5-Inch lift front springs, 3-Inch lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube shocks front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.

Features and Benefits:


All-new 2019-2023 Ram 2500 4WD HD 4.5-Inch lift kit

4.5inch front/3inch rear spring lift kit

Includes all-new transfer case clocking ring and new heavy-duty transmission cross-member

Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD

For use on Diesel engine Ram 2500 4WD HD trucks only

Allows for up to 37x13.50 tires on 20-Inch x 9-Inch wide wheels with 18 offset

Does not work with Factory Air suspension or Auto Level system (factory helper bags)

Single Cab configuration has not been validated

4.54.5inch front/3inch rear spring lift kit


Details:


Fitment: Direct Fitment

Front Lift Component: Coil Spring

Front Lift Height: 4.5 Inch

Front Shocks: Falcon 1.1 Monotube

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 4.5 Inch

Max Tire Size: 37 Inch

Rear Lift Component: Coil Spring Spacer

Rear Lift Height: 3.0 Inch

Rear Shocks: Falcon 1.1 Monotube

Shocks Included: Yes
