6 Inch Big Lift Kit 2022-2025 Toyota Tundra W/ Rear Coil Springs 2WD/4WD - ReadyLIFT - 44-52620

ReadyLIFT announces two new suspension solutions for the 2022-UP Toyota Tundra with rear coil spring and factory air configurations: 6-inch lift kits. These kits, successful following the Tundra product line, feature Falcon 1.1 monotube shocks, designed for the 2022-Up Toyota Tundra.

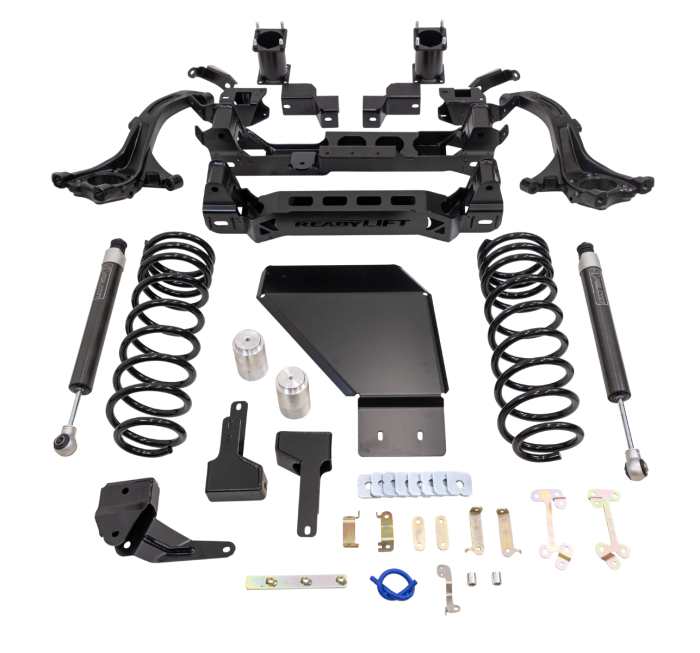

The kits include strong, laser-cut, CNC bent, welded, boxed sub-frame drop assemblies for increased ground clearance and suspension geometry maintenance. The cast iron front knuckles, precision-designed, retain factory tie rods with minimal trimming.

The innovative differential drop system ensures easy installation and correct positioning to maintain CV axle and driveline angles. Kits 44-52620 (non-rear air) and 44-52660 (with rear air) prevent premature tire wear by maintaining alignment and geometry.

The system includes bump stop extensions and sway bar frame mount brackets for factory geometry retention. These features ensure superior driving and handling.

The 6-inch Big Lift allows for 5.75-Inch backspace (18-20mm Offset) on 20x9 with 35-Inch tires and, with trimming, 5.5-Inch backspace (10-13mm Offset) on 20x9 with 37-Inch tires. It includes two Falcon 1.1 monotube rear shocks, retains the factory turning radius, and is compatible with stock 20-inch wheels.

Not suitable for the 2022-Up Tundra TRD Pro with Bilstein coilover shocks or the TRD rear sway bar option. The kits work only with factory 20-Inch wheels (not 18-Inch wheels), but most aftermarket wheels fit (confirm before installation).

Features and Benefits:


Allows for 5.75-Inch backspace (1820mm Offset) on 20x9 with 35-Inch tires

Max tire with trimming 5.5-Inch backspace (1013mm Offset) on 20x9 with 37-Inch tires

Includes two Falcon 1.1 monotube rear shocks

Retains factory turning radius

Allows for use of stock 20-Inch wheels

Works with auto adjust headlights

Not compatible with 2022-Up Tundra TRD Pro w/ Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with LoadLeveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)


Details:


Fitment: Direct Fitment

Front Lift Component: Spacer

Front Lift Height: 6.0 Inch

Front Shocks: None

Front or Rear: Front and Rear

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 6.0 Inch

Max Tire Size: 35 Inch

Rear Lift Component: Coil Spring

Rear Lift Height: 6.0 Inch

Rear Shocks: Falcon 1.1 Monotube

Shocks Included: Yes
