7-8 Inch Lift Kit 2011-2019 Silverado/Sierra 2500HD/3500HD W/ Bilstein Shocks - ReadyLIFT - 44-3072

The ReadyLIFT 7-Inch to 8-Inch Adjustable Lift Kit Systems are specifically designed for 2011-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD trucks. This kit includes four Bilstein 5100 Series Performance Shocks tailored for this system.

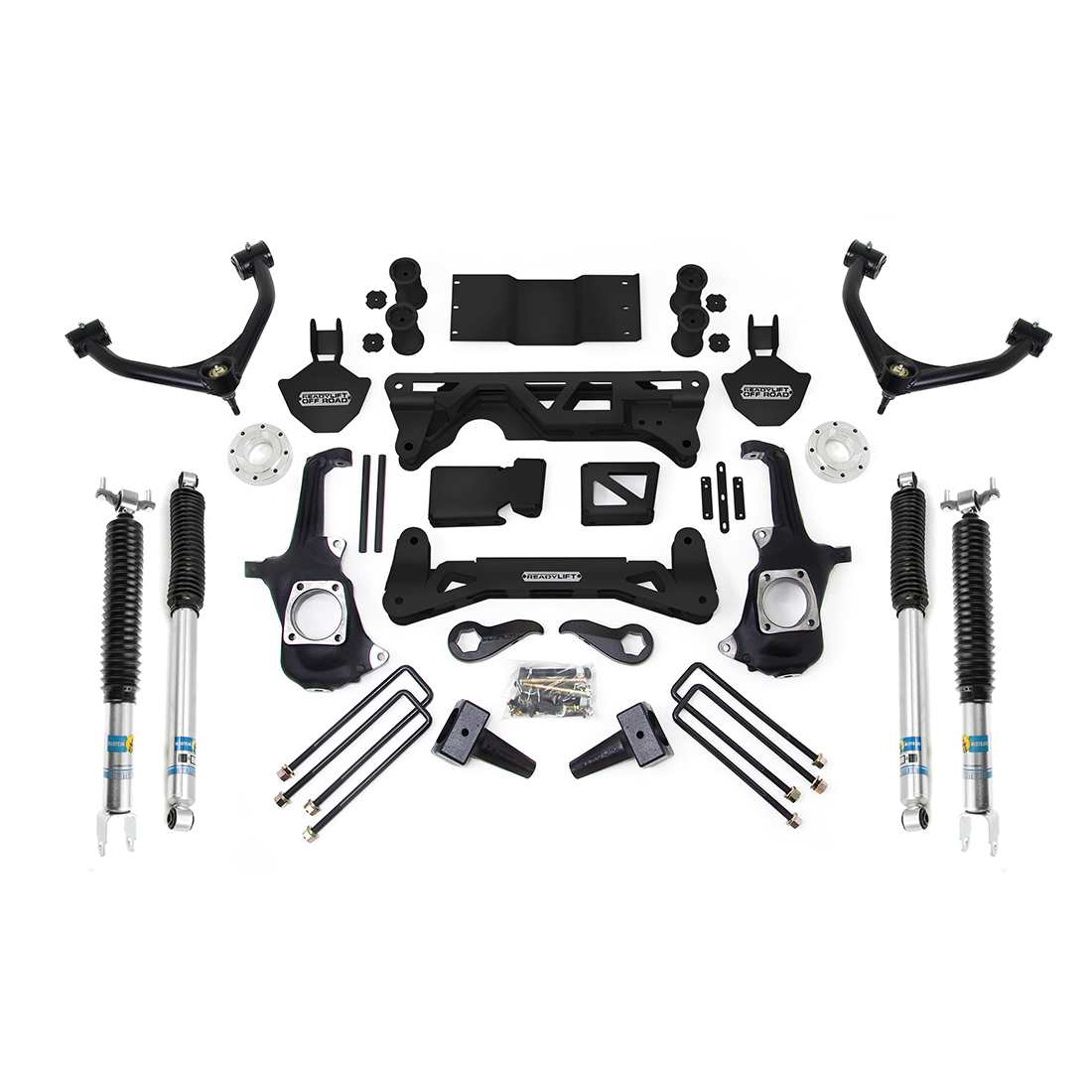

This kit is designed to provide a quality lift and off-road durability while preserving the factory ride on the street. The kit, known as 44-3072, comprises precision-engineered laser-cut and CNC-formed sub-frame assemblies that bolt directly in place.

It incorporates custom-formed nodular iron knuckles for ideal geometry and handling performance. Additionally, there's an integrated differential drop bracket system to maintain correct CV axle angles on 4WD setups and enhance 4WD performance.

For the front lift, the ReadyLIFT Forged Torsion keys are utilized, allowing for adjustable lift from 7-Inch to 8-Inch while keeping the factory ride quality. In the rear, an OEM-quality cast iron 5.0-Inch tall rear block is included to maintain ride comfort.

The kit also features steel bump stop extensions, a skid plate, and sway bar end links. Please note that this kit is compatible with stock 20-Inch wheels or 9-Inch wheels with 4.75 Inch - 5.5-Inch backspacing.

However, it cannot be used with stock 17-Inch or 18-Inch wheels. The sub-frame and other components are coated with Plascoat finish, a durable polymer alloy coating designed to withstand stress cracking, abrasion, impact, and factors like weather conditions, detergents, salt spray, and pollutants.

Please be aware that Single Rear Wheel (SRW) models may require custom U-Bolts to accommodate the factory tow package, and the installation of this kit may reduce towing capacity. This kit is primarily intended for 2WD use at speed on public roads, and 4WD should only be used off-road or in adverse slow-speed conditions due to potential driveline vibrations at high speeds.

In some cases, a double cardan driveshaft may be necessary to mitigate high-speed 4WD front driveline vibrations for kits ranging from 5-Inch to 8-Inch in height.

Features and Benefits:


Adjustable lift height of 7 Inch8

Compatible with 2011-2019 GM 2500HD/3500HD 2WD/4WD models

Complete front and rear lift system

Includes (4) Bilstein 5100 Series Shocks

Comes with Tubular Upper Control Arms

Can accommodate up to 37-Inch tall tires

Made in the U.S.A.

Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT


Details:


Fitment: Direct Fitment

Front Lift Component: Torsion Key

Front Lift Height: 8.0 Inch

Front Shocks: Bilstein 5100

Front or Rear: Front and Rear

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 8.0 Inch

Max Tire Size: 37 Inch

Rear Lift Component: Block

Rear Lift Height: 5.0 Inch

Rear Shocks: Bilstein 5100

Shocks Included: Yes
