5-6 Inch Lift Kit 2011-2019 Silverado/Sierra 2500HD/3500HD W/ Bilstein Shocks - ReadyLIFT - 44-3052

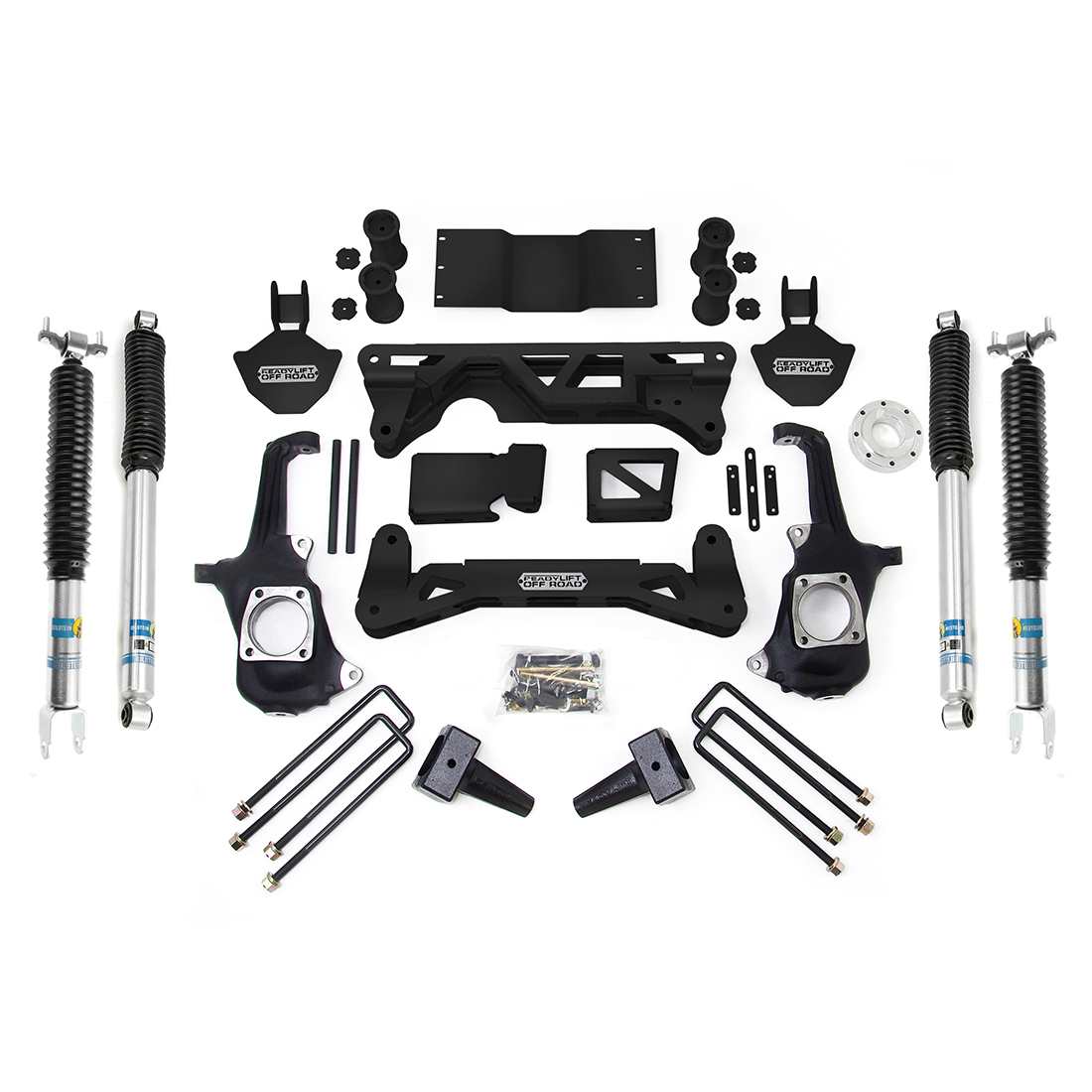

The ReadyLIFT 5-Inch to 6-Inch Adjustable Lift Kit Systems are designed for 2011-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD trucks. This comprehensive kit includes four Bilstein Performance Shocks specifically tailored for this application.

It offers a premium 5 Inch-6-Inch adjustable height front Lift Kit that ensures both quality lift and robust off-road capabilities while maintaining the factory ride quality on the street. The kit comprises precision-designed laser-cut and CNC formed sub-frame assemblies that easily bolt in.

It also features custom-formed nodular iron knuckles engineered for perfect geometry, ride comfort, and handling performance. For 4WD applications, an integrated differential drop bracket system is included to ensure correct CV axle angles and optimal performance.

Front lift is achieved using ReadyLIFT Forged Torsion keys, allowing for adjustable lift from 5-Inch to 6-Inch without sacrificing the factory ride. In the rear, OEM quality cast iron rear blocks are used to maintain ride quality.

The kit comes complete with tough steel bump stop extensions, a skid plate, and sway bar end links. Please note that this system is compatible with stock 20-Inch wheels or 9-Inch wheels with 4.75 Inch - 5.5-Inch backspacing, but it cannot be used with stock 17-Inch or 18-Inch wheels.

Additionally, SRW (Single Rear Wheel) models may require custom U-Bolts to accommodate the factory tow package, and it will not fit DRW (Dual Rear Wheel) applications without custom U-bolts. Installing this kit may reduce towing capacity.

It's important to note that this kit is primarily designed for use in 2WD mode at speed on public roads, and 4WD should only be used off-road or in adverse slow-speed conditions due to driveline vibrations at high speeds. In some cases, a double cardan driveshaft may be required to help eliminate high-speed 4WD front driveline vibrations when the lift kits are 5-8-Inch high.

Features and Benefits:


Adjustable lift height of 5 Inch6

Specifically designed for 2011-2019 GM 2500HD/3500HD 4WD vehicles

Complete front and rear off-road suspension system

Includes (4) Bilstein 5100 Series Shocks

Can accommodate up to 35-Inch tall tires

Utilizes OEM factory torsion keys

Made in the USA

Compatible with most tow packages (see details for specific notes)

Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.


Details:


Fitment: Direct Fitment

Front Lift Component: Torsion Key

Front Lift Height: 6.0 Inch

Front Shocks: Bilstein 5100

Front or Rear: Front and Rear

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 6.0 Inch

Max Tire Size: 35 Inch

Rear Lift Component: Block

Rear Lift Height: 6.0 Inch

Rear Shocks: Bilstein 5100

Shocks Included: Yes
