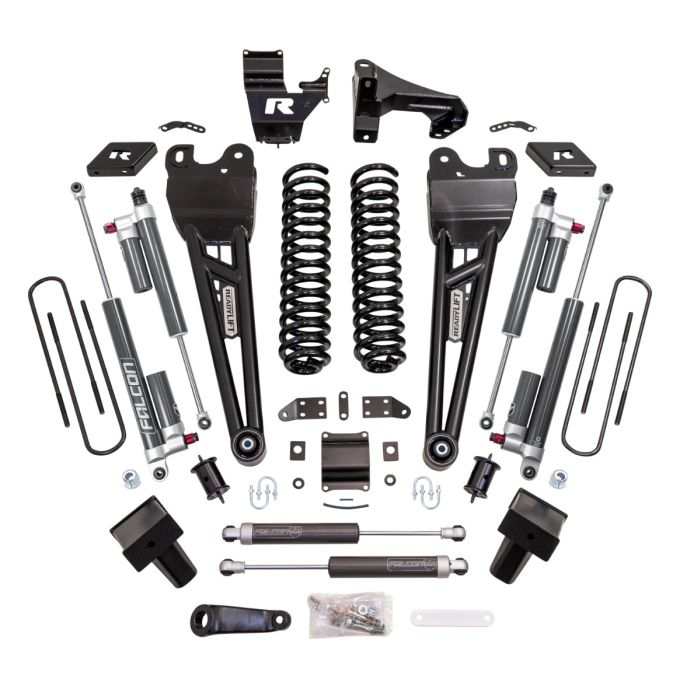

6 Inch Coil Spring Suspension System With Falcon MAX3.3 Shocks And Radius Arms 2023-2025 Ford F-250/F-350 Super Duty4WD - ReadyLIFT - 43-23660

ReadyLIFT is proudly expands our industry-leading Super Duty lineup with the release of the all-new 6-Inch MAX3.3 Coil Spring Suspension System for 2023, 2025 Ford F250/F350 diesel 4WD trucks.This high-performance kit is engineered for customers demanding premium ride quality, larger tire fitment, and daily drivability, all backed by ReadyLIFT's reputation as the go-to brand for Ford truck lifts.

Key Features:Dual Falcon Steering Stabilizer, Adds control and confidence with oversized tires on solid axles. Heavy-Duty Tubular Radius Arms, Built to correct suspension geometry and withstand Super Duty abuse.

Bolt-on Installation, No cutting, welding, or fabrication required. 37-Inch Tire Fitment, On 9-Inch wide wheels with +18 offset.

Falcon 3.3 Fast Adjust Piggyback Shocks, Terrain-tuned dampers with on-the-fly compression adjustability (Soft, Custom, Firm) and 8-position micro dial. o 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.o 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer rideo 8-Position Micro Adjust Dial offers refined damping adjustmentso Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.o Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.o VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.o Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.

This lift height reaches new heights for off-road performance and everyday utility, delivering improved ground clearance, aggressive stance, and outstanding ride quality both on and off-road.Diesel 4WD only. Tremor models will not achieve full lift height.

Not validated for 2WD, gasoline powertrains, or single-cab configurations.

Features and Benefits:


Fits 2023-2025 Ford Super Duty Power Stroke 4WD.

- 6-Inch Coil Spring Lift Kit with (4) Monotube Falcon 3.3 Shocks.

- 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

- 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride.

- Tubular Radius Arms correct the caster angle included

- Falcon Dual Steering Stabilizer included

- Bolt-on lift kit - no structural modifications required.

- Allows for up to 37-Inch tall tires on 9-Inch wide wheels with +18 offset.

- Diesel trucks with rear single-wheel only.

***Trucks equipped with the Onboard Scale option will require the Auto-Leveling Headlight Bracket.***

PN: 67-23610 - Ford Super Duty Auto-Leveling Headlight Bypass Bracket Kit

Note: Tremor versions will not gain the full 6 inches over stock ride height. Not recommended for 2WD or gas trucks. Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.


Details:


Color: Black

Fitment: Direct Fitment

Front Lift Component: Shocks with Spindle

Front Lift Height: 6.0 Inch

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 6.0 Inch

Max Tire Size: 37 Inch

Rear Lift Component: Block and U-bolt

Rear Lift Height: 5.0 Inch

Shocks Included: Yes
