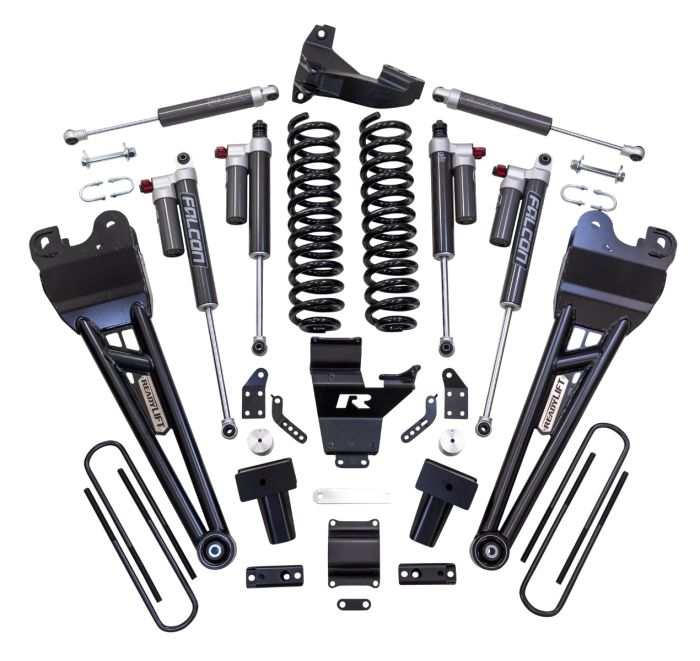

4 Inch Coil Spring Suspension System With Falcon MAX3.3 Shocks And Radius Arms 2023-2025 Ford Super Duty F-250/F-350 4WD - ReadyLIFT - 43-23440

ReadyLIFT Suspension is pleased to announce a new Super Duty lift kit. We are now offering our first 4-Inch Coil Spring Kit including Tubular Radius Arms, Falcon Dual Steering Stabilizer and the new Falcon 3.3 piggyback shocks.

This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance!

Many consider this lift height the sweet spot for Super Duty driving dynamics and maximum tire size while maintaining everyday usefulness.The all-new Radius Arms are designed to correct the suspension geometry on lifted models. These new radius arms are heavy duty and are built to handle the use and abuse demanded out of Super Duty trucks.

The new radius arms hold up to the abuse and surpass the factory radius arms and support gussets. The arms are formed inward, allowing for additional tire clearance, and providing the ability to install oversized tires.

The direct bolt-on design promotes quick and easy installation.With the help of Falcon steering dampers ReadyLIFT's new Dual Steering Stabilizer provides superior truck stability which is crucial for any solid front axle vehicle equipped with oversized-sized tires. Falcon steering stabilizers allow for more confident handling over the road and in challenging terrain.

They reduce bump steer and improve steering feed contributing to overall truck comfort and security thanks to the increased truck maneuverability and control.This optimum lift height allows for up to 37-Inch tall tires. The coil spring kit delivers a great ride and handling performance!

The key ingredients to improving Super Duty ride and handling are the new, specially engineered coil springs teamed with Falcon 3.3 shocks and a track bar relocation bracket! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.

Features and Benefits:· 4-Inch Coil Spring Lift Kit with Vehicle-specific performance-tuned Falcon Shocks.· Tubular Radius Arms help to correct the caster angle in· Falcon Dual Steering Stabilizer· Bolt-on lift kit - no structural modifications required.· Allows for up to 37-Inch tall tires on 9-Inch wide wheels with +18 offset.· Diesel trucks with rear single-wheel only.· Falcon 3.3 monotube dampers on all four corners.o 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.o 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer rideo 8-Position Micro Adjust Dial offers refined damping adjustmentso Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.o Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.o VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.o Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.Note: Tremor versions will not gain the full 4 inches over stock ride height.

Kits are designed for diesel applications only. Not recommended for 2WD or gas trucks.

Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.

Features and Benefits:


Fits 2023-2024 Ford Super Duty Power Stroke 4WD.

4-Inch Coil Spring Lift Kit with (4) Monotube Falcon 3.3 Shocks.

3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride.

Tubular Radius Arms correct the caster angle included

Falcon Dual Steering Stabilizer included

Bolt-on lift kit - no structural modifications required.

Allows for up to 37-Inch tall tires on 9-Inch wide wheels with +18 offset.

Diesel trucks with rear single-wheel only.

Trucks equipped with the Onboard Scale option will require the Auto-Leveling Headlight Bracket.

Note: Tremor versions will not gain the full 4 inches over stock ride height. Not recommended for 2WD or gas trucks. Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.


Details:


Color: Black

Fitment: Direct Fitment

Front Lift Component: Coil Spring

Front Lift Height: 4.0 Inch

Front Shocks: Falcon 3.3

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Intermediate Requires some Automotive knowledge

Installation Time: 5+ Hours

Lift Height: 4.0 Inch

Material: Steel

Max Tire Size: 37 Inch

Rear Lift Component: Block

Rear Lift Height: 4.0 Inch

Rear Shocks: Falcon 3.3

Shocks Included: Yes
