8 Inch MAX3.3 Suspension System W/ Falcon 3.3 Shocks And Fab Upper Control Arms Arms 2020-2025 Silverado/Sierra 2500HD/3500HD - ReadyLIFT - 42-30840

Some GM HD trucks equipped with Tow Package may require custom-length U-bolts purchased separately. Custom U-bolt length may vary by vehicle application.

If the ReadyLIFT kit standard U-bolts are too short, ReadyLIFT recommends locally sourcing custom U-bolts built to each truck specifications.ReadyLIFT delivers a performance game changer for the popular 2020-2024 Chevy Silverado and GMC Sierra 2500/3500 HD trucks with the release of our new premium 8-Inch MAX3.3 Suspension with 3.3 Falcon shocks. Designed to improve stance, performance, and capability, this kit includes everything necessary to clear larger wheels and tires.

With vehicle-specific performance-tuned Falcon dampers on all four corners of our kit, these lift kits provide a better-than-factory feel. The 8-Inch kit includes a new system that pairs front 3.3 Fast Adjust shocks with rear adjustable piggyback shocks.

The new 3.3 Falcon's are Fast Adjust Dampers offering a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference. Falcon Performance Shocks improve performance and comfort regardless of the terrain.

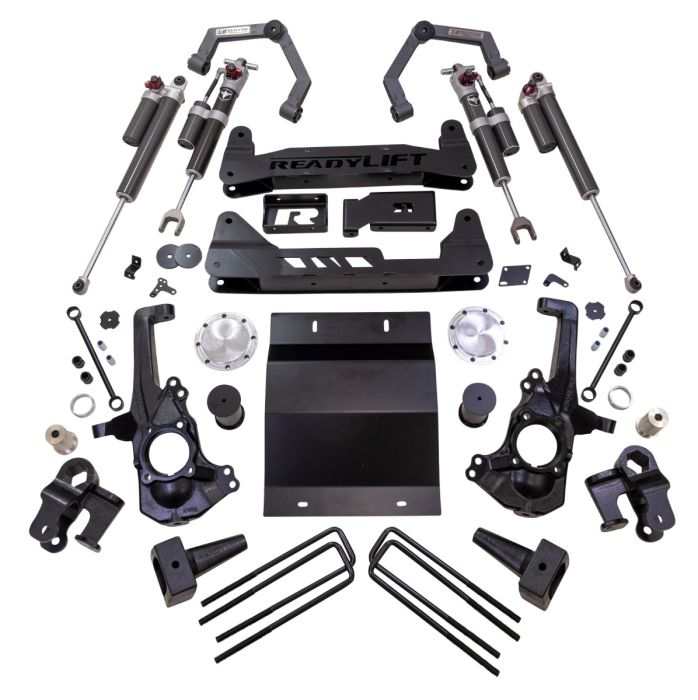

The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties.These new kits include laser-cut, fabricated heavy-duty steel cross-members, new cast iron OE-style knuckles with the perfect geometry built-in, torsion arm brackets, taller cast style rear lift blocks, new forged torsion keys with the proper amount of indexing, and the 8-Inch includes our popular fabricated steel upper control arms with corrected ball joint angles.

These new torsion bar relocation brackets eliminate the traditional lowering of the torsion bars, which can inhibit ground clearance and help to improve the overall driving experience. Additionally, each kit includes crucial differential drop brackets and CV axle spacers, sway bar end links, bump stop extensions, OE style cast rear lift blocks, heavy-duty steel skid plate, and finally, Falcon shocks.-

8-Inch Lift Kit GM HD Trucks- Heavy-duty fabricated steel components utilizing 3/16-Inch and 1/4-Inch steel plate- Full-coverage differential skid plate constructed from 3/16-Inch steel plate- Laser cut, CNC formed heavy-duty front/rear drop crossmembers.- Allow up to 37x12.50 with a 20Р§9-Inch with a 0 offset wheel- Xtreme-Duty fabricated 4130 chromoly steel upper control arms- 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.- 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride- 8-Position Micro Adjust Dial offers refined damping adjustments- Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.- Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.- VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.- Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.

Features and Benefits:


8-Inch Lift Kit GM HD Trucks

Heavy-duty fabricated steel components utilizing 3/16-Inch and 1/4-Inch steel plate

Full-coverage differential skid plate constructed from 3/16-Inch steel plate

Laser cut, CNC formed heavy-duty front/rear drop crossmembers.

Allow up to 37x12.50 with a 20Р§9-Inch with a 0 offset wheel

Xtreme-Duty fabricated 4130 chromoly steel upper control arms

3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride

8-Position Micro Adjust Dial offers refined damping adjustments

Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.

Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT. Some GM HD trucks equipped with Tow Package may require custom-length U-bolts purchased separately.

Custom U-bolt length may vary by vehicle application. If the ReadyLIFT kit standard U-bolts are too short, ReadyLIFT recommends locally sourcing custom U-bolts built to each truck specifications.


Details:


Color: Black

Fitment: Direct Fitment

Front Lift Component: Strurt with Crossmember

Front Lift Height: 8.0 Inch

Front Shocks: Yes

Front or Rear: Front and Rear

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 8.0 Inch

Max Tire Size: 38 Inch

Rear Lift Component: Block and U-bolt

Rear Lift Height: 6.0 Inch

Rear Shocks: Yes

Shocks Included: Yes
