6 Inch MAX3.3 Suspension Systems 2021-2024 Ford F-150 - ReadyLIFT - 42-21640

ReadyLIFT is excited to announce our all-new 6-Inch MAX3.3 Suspension Systems for the 2021-2024 Ford F-150s. The MAX3.3 Suspension Systems deliver first-class ride and handling with plenty of tire clearance and a great-looking lifted stance in our all-new family of high-performance big lift suspension systems for Ford F-150 4WD models.

The all-new Ford F-150 6-Inch MAX3.3 kits come with the new Falcon 3.3 Fast Adjust Dampers providing unrivaled on and off-road utilizing Falcon's exclusive Fast Adjust technology. The Falcon 3.3 Fast Adjust Dampers have the ability to quickly adjust the ride from Soft to Firm with a quick flip of the Fast Adjust Knob, or anywhere in between using the 8-position Micro Adjust Dial.

The Mico Adjust Dial is a unique feature for fine-tuning your ride easily between the primary Fast Adjust settings to create a true multi-purpose vehicle that excels in every category. Whether you are cruising to work in the morning or towing to camp in the afternoon followed by exploring in the evening, the Falcon 3.3 Fast Adjust Dampers will provide miles of smiles.

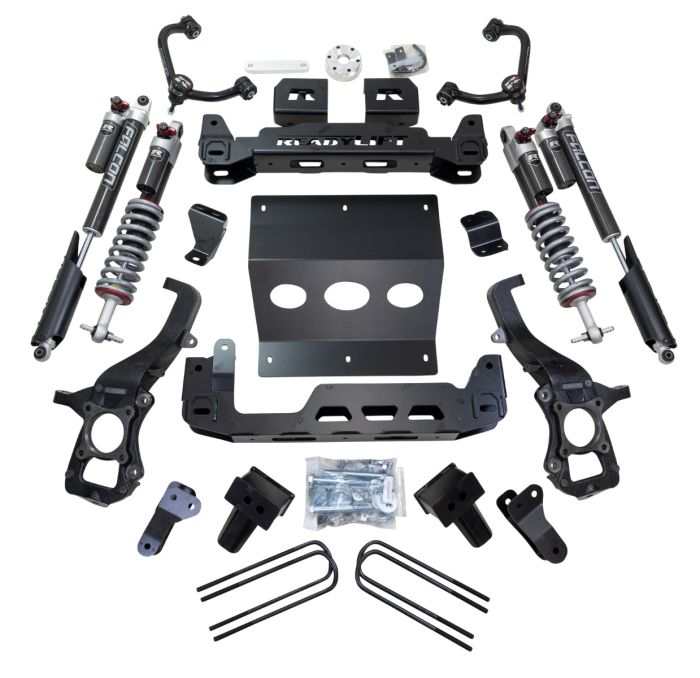

The new ReadyLIFT Ford F-150 6-Inch kits are equipped with heavy-duty 1/4-Inch steel plate construction front and rear crossmembers that offer unmatched strength for all driving conditions. Featuring a set of durable lifted knuckles and strut spacers, you gain enough ride height to run up to 35-inch tires with the right wheel!

The new 6-Inch system includes everything necessary to correct suspension, steering, and driveline geometry to maintain on-road handling while improving strength and off-road capability. Fabricated steel 4-Inch tall rear block offers the correct amount of rear lift while the factory-style U-bolts aid in ease of installation.

Topping off this premium suspension system is ReadyLIFT's all-new Upper Control Arms. These new arms offer increased strength and travel, with corrected geometry and alignment for your newly lift truck.

Features and Benefits:


3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference

3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride

8-Position Micro Adjust Dial offers refined damping adjustments

Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges

Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance

VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit

Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents

DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint

Heavy-duty fabricated steel components utilizing 3/16-Inch and 1/4-Inch steel plate

Full-coverage differential skid plate constructed from 3/16-Inch steel plate

Includes HD alignment cam bolts for proper front-end alignment

Tire size 295/65R20 with a 20Р§9-Inch with a 0 offset wheel

Max tire with trimming 37Р§12.50-Inch with a 20Р§9-Inch with a 0 offset wheel

*Does not fit vehicles equipped with CCD, 2WD, and Raptor. Does not fit F150 equipped with the Diesel engine.


Details:


Color: Black

Fitment: Direct Fitment

Front Lift Component: Strurt with Crossmember

Front Lift Height: 6.0 Inch

Front Shocks: Yes

Front or Rear: Front and Rear

Fuel Type: Diesel

Install Difficulty: Difficult Requires Professional Installation

Installation Time: 5+ Hours

Lift Height: 6.0 Inch

Max Tire Size: 37 Inch

Rear Lift Component: Block and U-bolt

Rear Lift Height: 4.0 Inch

Rear Shocks: Yes

Shocks Included: Yes
