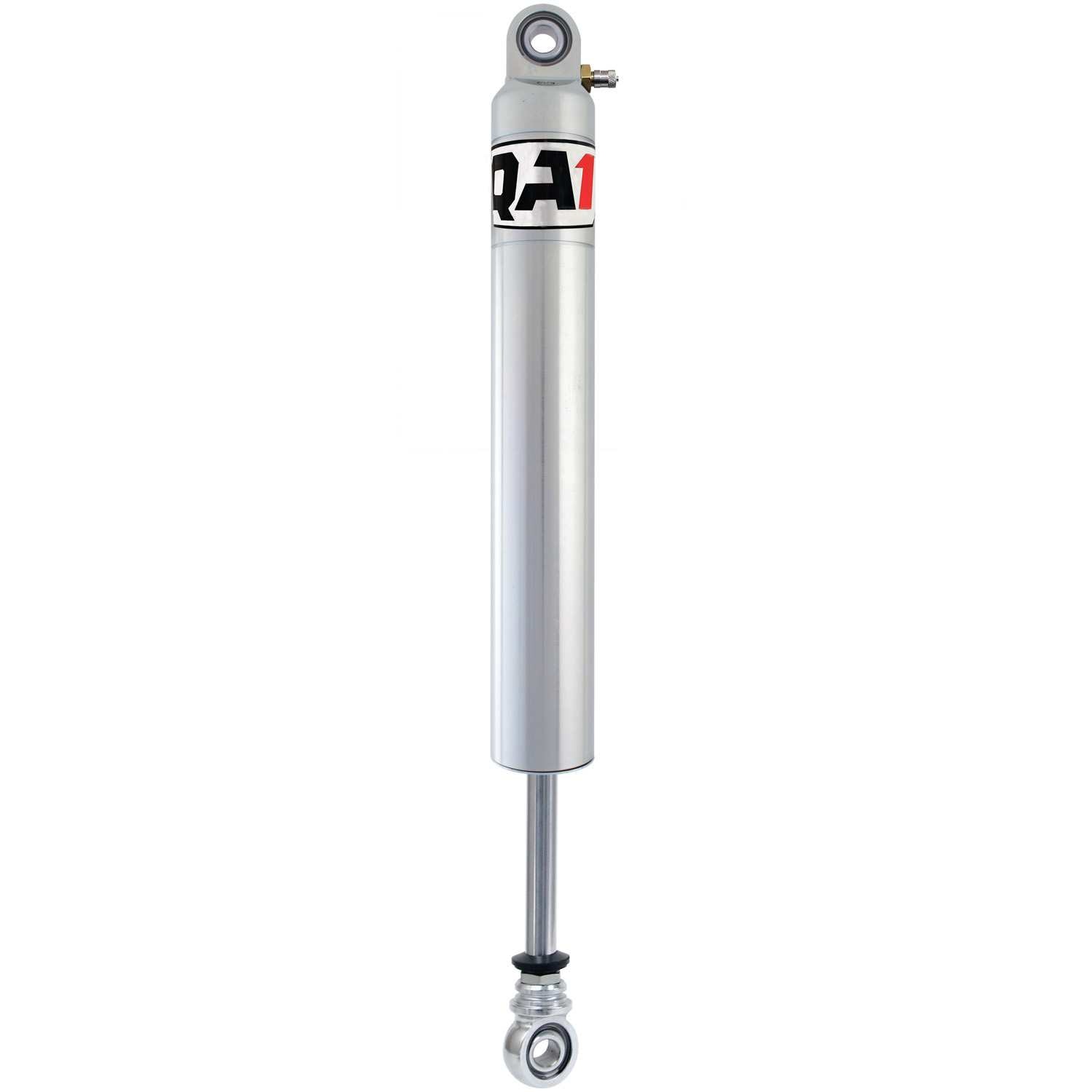

Shock Mono Lrg Steel Schrader 13.7 20.7 Eye-B/Eye-B V7-3M - QA1 - 26V77-3M

The 26 Series shock is a one piece monotube shock that is well suited for a variety of track conditions or as a traction shock in various applications. Constructed with a zinc plated body for corrosion resistance this shock is a popular choice for modifieds late models super stocks and various other classes. Works best on rough tracks and as an easy-up shock on many dirt cars and on bumpy asphalt tracks in all banking types. Made with a 2'' O.D. zinc plated steel monotube body and available with hyperscrew sealed Hyperscrew (IMCA Legal) or Schrader valve configurations the 26 Series shocks use deflective disc valving with either linear digressive or linear/digressive valving. The hyperscrew equipped shocks have a threaded round port near the bearing end of the shock body. This hole is then sealed with a small screw that has an O-ring built into it sealing the nitrogen gas pressure inside the shock. The gas pressure of the sealed hyperscrew configurations is only adjustable by QA1 and QA1 Authorized Rebuilders per sanctioning body like IMCA and track rules. With a Schrader valve you can easily adjust your gas pressure. Much like adding air to your car tires the Schrader valve allows you to make ''on the fly'' gas pressure adjustments between heat races and features to adjust for varying track conditions. The 46 MM piston allows for maximum car control at all shaft velocities. They are racer rebuildable and revalveable for unparalleled repeatability. Made in the USA and 100% dyno tested and serialized. Racer rebuildable and revalveable; Multiple valving curve and gas charging options; Made in the USA; Every QA1 shock is dyno-tested and serialized to guarantee peak performance
Upper Mount Sleeve Inside Diameter: 0.5 IN
Lower Mount Sleeve Inside Diameter: 0.5 IN
Upper Mount Sleeve Overall Length: 0.625 IN
Lower Mount Sleeve Overall Length: 0.625 IN
Color: Natural
Finish: Zinc Plated
Shaft Material: Carbon Steel
Type: Telescopic
Mounting Hardware Included: No
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Stroke: 7 IN
Lower Mount Type: Loop (Eyelet) Bearing
Upper Mount Type: Loop (Eyelet) Bearing
Boot Included: No
Gas Charged: Yes
Body Diameter: 2 IN
Body Material: Carbon Steel
Remote Reservoir: No
Includes Bump Stop: No
Brand: QA1
Manufacturer Part Number: 26V77-3M
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
Title: QA1 Shock Absorber 26V77-3M
UPC: 806990073150
