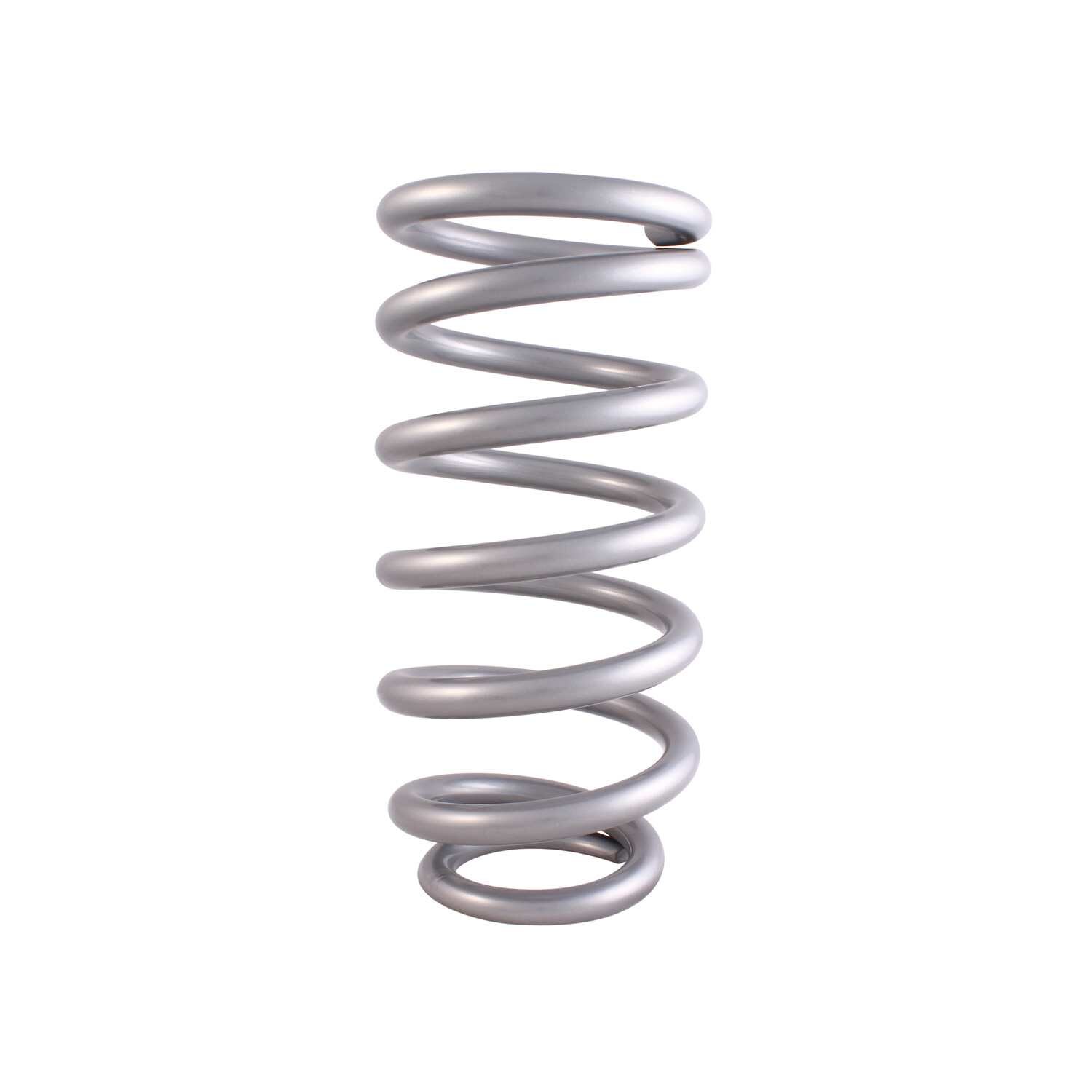

Spring, Cr-Si Ht High Travel 3.570" 10" X 500 Lbs/In. Pigtail Silver Pc - QA1 - 10HTSP500

Available in 7" 9" 10" 12" 14" and 16" lengths QA1 offers an assortment of high travel springs with a silver powder coated finish. Made in the USA these 2" I.D. high travel springs are manufactured from specially designed high-tensile chrome silicon alloy spring wire which allows them to have fewer coils and a smaller wire diameter. As a result these springs are lighter and have increased travel due to the larger distance between the coils. These lighter springs reduce unsprung weight and react faster optimizing suspension performance. In addition this high-grade material along with careful heat-treating and post-processing allows for greatly improved fatigue life and the coil design allows the springs to be compressed to coil-bind without affecting spring rate or free height. These new high travel springs are silver powder coated and ground at both ends for straight consistent and accurate operations. In addition all QA1 springs are lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions. Chrome Silicon Steel All QA1 springs are manufactured using the highest quality materials for high strength consistency and long life. Cold Wound - Heat Treated - Shot Peened All QA1 springs go through intensive manufacturing processes to ensure consistency accuracy and durability. Squared Ends All QA1 springs are ground at both ends to ensure straight consistent and accurate operation. Lengths and Rates Marked All QA1 springs are clearly marked with the free length of the spring and spring rate for quick and easy identification. Made in the USA QA1's high travel springs are proudly made in the USA. LIFETIME GUARANTEE All QA1 springs are lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions. Lifetime guarantee to remain within 2% of their original free height; Designed to be as light as possible with maximum travel and superb performance; Durable powdercoated finish; Made in the USA
Material: Chrome Silicon Alloy
Spring Rate: 500 PPI
Color: Silver
End 1 Type: 3.5in ID Pigtail
End 2 Type: 2.5in ID Flat
Finish: Powder Coated
Seat Included: No
Free Height: 10 IN
Maximum Inside Diameter: 2.5 IN
Suspension Grade Type: Performance
Grade Type: Performance
Spring Type: Tapered Spring Powder Coated
Brand: QA1
Manufacturer Part Number: 10HTSP500
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
Title: QA1 Coil Spring 10HTSP500
UPC: 806990119803
