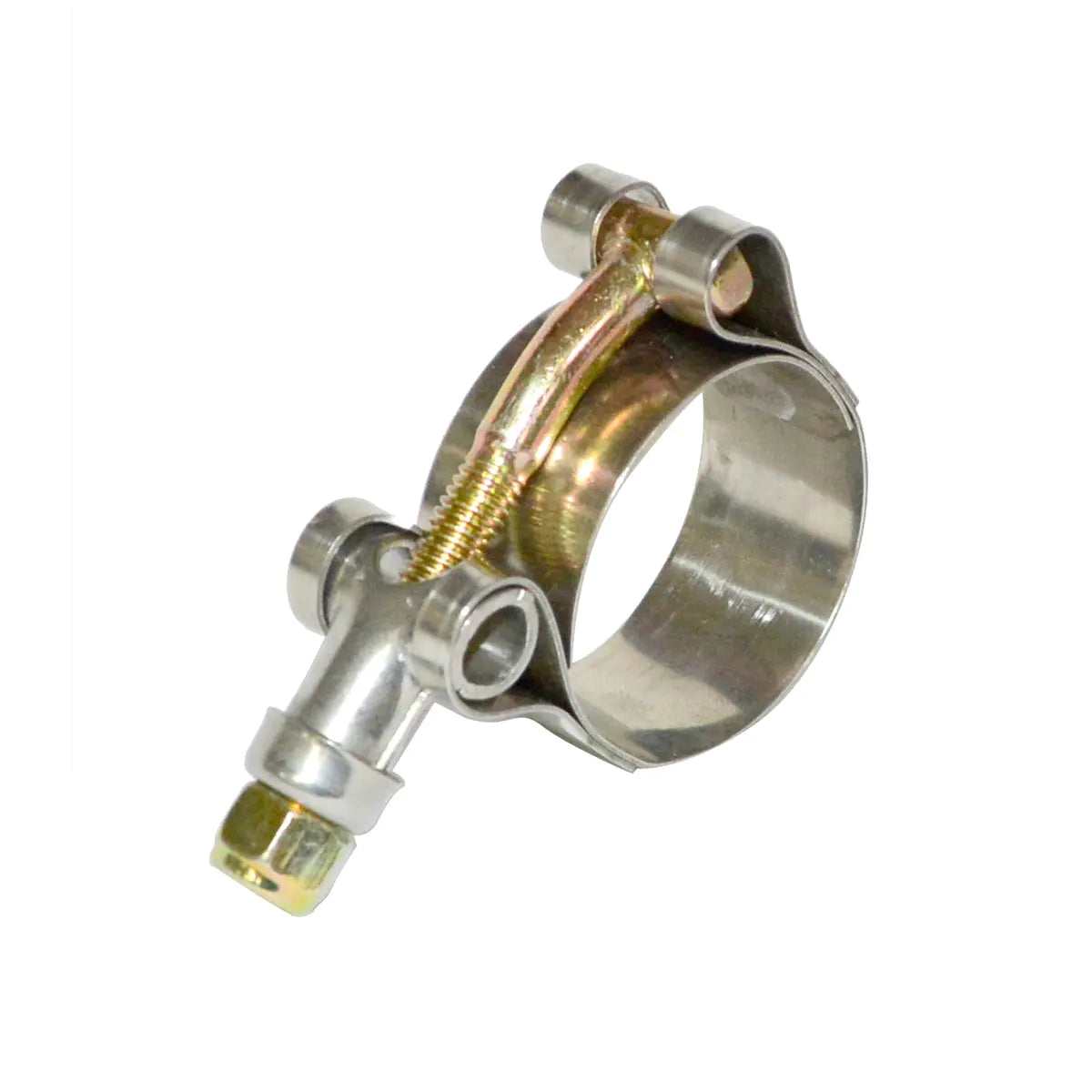

T-Bolt Clamps - 304 Stainless Steel - 1.5 in - Pacific Performance Engineering - 515150100

T-Bolt Clamps made from 304 Stainless Steel
Manufactured for added strength and reliability using 304 stainless steel T-Bolt and a Nyloc nut these clamps are easy to install and offer excellent clamping power for both stock and high-performance applications.
Note: The Hose ID and Hose OD are provided for reference, assuming a 1/4" hose wall thickness. For best results, measure the actual installed hose OD and refer to the Clamp Range columns.
PPE Part No.
UPC
Clamp ID
Hose ID
Clamp Range
515150100
840171210941
1.5"
1"
37-42
515175125
840171210774
1.75"
1.25
43-49
515200150
840171210743
2"
1.5"
47-55
515225175
840171210620
2.25"
1.75"
54-62
515250200
840171210606
2.5"
2"
60-68
515262212
840171210453
2.625"
2.125"
63-71
515275225
840171210347
2.75"
2.25"
67-75
515287237
840171210330
2.875"
2.375"
70-78
515300250
840171210309
3"
2.5"
73-81
515325275
840171210026
3.25"
2.75"
79-87
515350300
840171210002
3.5"
3"
84-92
515375325
840171209808
3.75"
3.25"
92-100
515400350
840171209785
4"
3.5"
98-106
515425375
840171209525
4.25"
3.75"
105-113
515450400
840171209501
4.5"
4"
108-116
515475425
840171209310
4.75"
4.25"
114-122
515500450
840171209297
5"
4.5"
121-129
515525475
840171209167
5.25"
4.75"
127-135
515550500
840171209150
5.5"
5"
133-141
515575525
840171208962
5.75"
5.25"
140-148
515600550
840171208948
6"
5.5"
146-154
515625575
840171208665
6.25"
5.75"
152-160
515650600
840171208658
6.5"
6"
159-167
