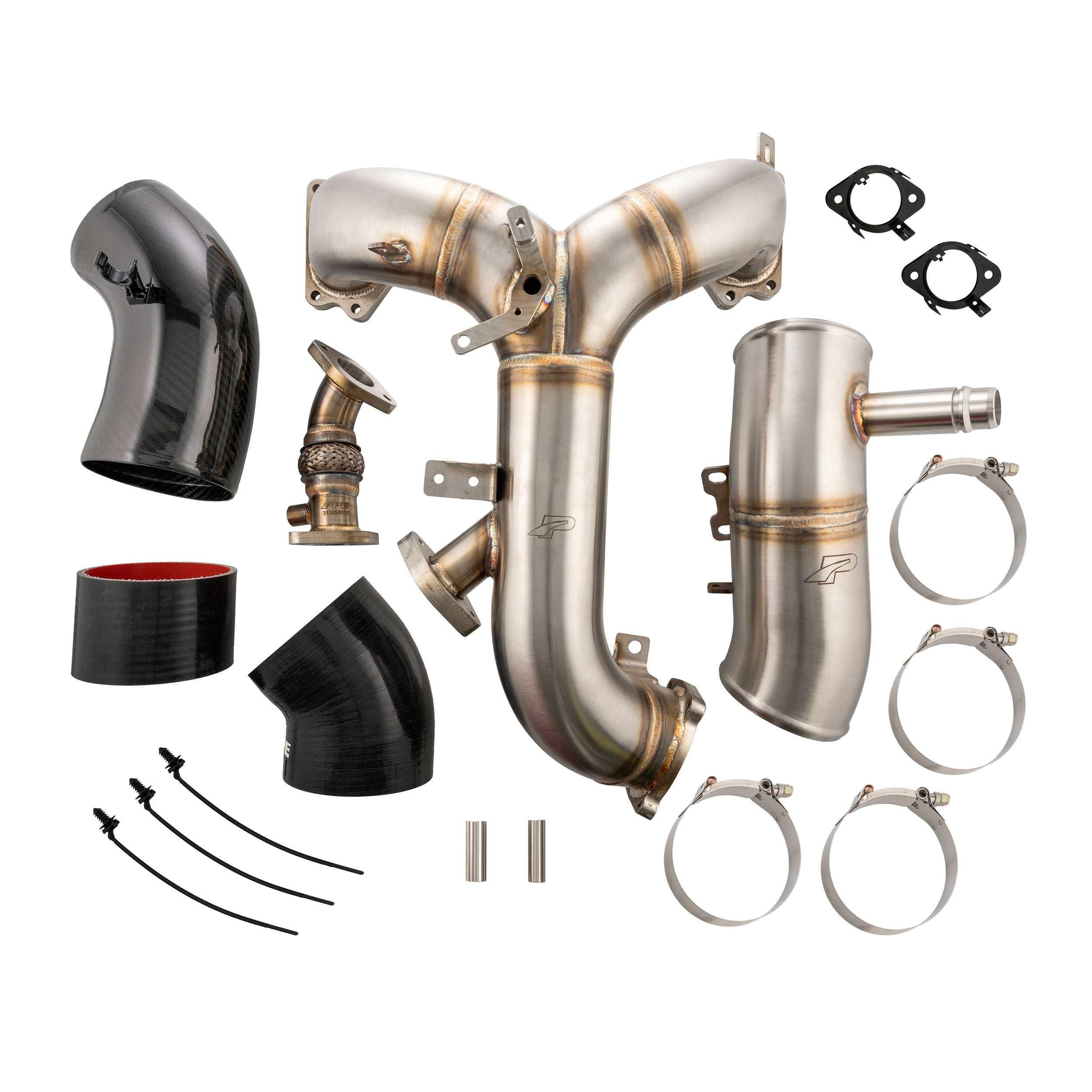

2020-2026 Ford 6.7L Power Stroke Zilla Intake Manifold and Turbo Inlet Kit - Polished - Pacific Performance Engineering - 315054030

Intake Manifold and Turbo Inlet Kit
The stock cast aluminum intake bridge manifold on the Ford 6.7L Power Stroke is a well-known performance bottleneck. Certain design characteristics of the stock manifold restrict fresh air intake, which is particularly unfavorable for engine performance. Some sections of the stock manifold’s internal passage are even narrower than a 2.5-inch-diameter tube, severely limiting airflow. Additionally, the EGR inlet swirl is positioned directly in the center of the flow path, creating significant turbulence and flow disruption. This turbulence reduces both the intake air velocity and the volume of air entering the cylinder heads.
The PPE Performance Intake Manifold effectively eliminates these stock bottlenecks by utilizing large 3.25-inch stainless steel tubing, combined with hydroformed runners that seamlessly direct airflow into both cylinder heads. The problematic, flow-restricting EGR boss has been eliminated, creating unobstructed flow passages. Furthermore, the EGR inlet port has been carefully repositioned and angled to ensure even distribution of fresh air and EGR gases to both banks, thereby maximizing volumetric efficiency. To support this, the kit includes a redesigned stainless steel EGR pipe and gaskets. With these enhancements, the PPE Performance Intake Manifold achieves a 69% higher maximum flow rate than the stock component.
On the turbo inlet side, the system features a four-inch stainless steel turbo inlet, paired with a dry-carbon-fiber airbox duct. Unlike the stock components, which transition from circular shape to oval shape and then back to circular shape, both PPE components maintain a fully round design. This ensures higher flow efficiency and reduces frictional losses. Additionally, the factory plastic two-chamber turbo resonator has been removed, reducing air turbulence and weight, while enhancing turbo sound.
The best part of this kit is its hassle-free installation and OEM-like fitment. All stock mounting points - including sensor clips, dipstick brackets, and coolant hose connections - are retained. Not a single wiring harness or coolant line is left unsupported. The MAP sensor port is positioned in the exact same location as the stock manifold, with MAP sensor shield provisions.
Upgrade today and get the most out of your Power Stroke.
Note: For 6.7L High-Output applications, PPE Turbo Coolant Lines Relocation Kit (SKU 319010000, available separately) is required.
