2001-2010 GM 2500/3500 Extreme-Duty Forged Pitman Arm - Pacific Performance Engineering - 158050000

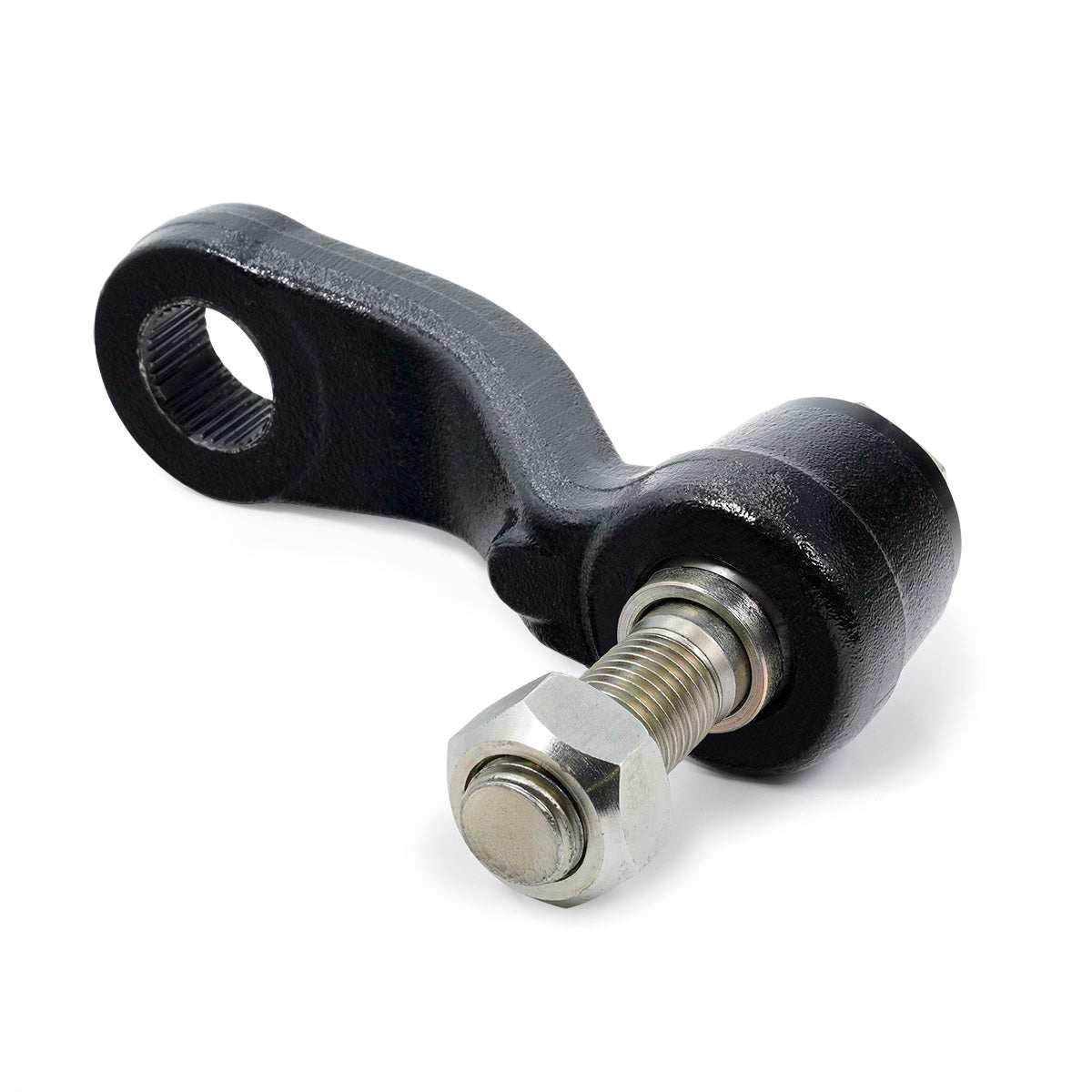

PPE Extreme-Duty Forged Pitman Arm for 2001-2010 GM 2500/3500
The PPE Extreme-Duty Pitman Arm features robust forged steel design to handle the abuse of racing / off-road applications. Out Pitman Arm is equipped with replaceable dual spherical bearings and large 7/8” bolt to withstand extreme radial loads and increase durability. It’s intended to work with PPE Extreme-Duty Forged Idler Arm and PPE 7/8” Drilled HD Forged Center Link. It can also be used with factory center link when the tapered perch is modified to match the 7/8’’ bolt.
OEM P/N for reference: 19168473, 85603333, 19434290
Note: The three-slot-spline pitman is for the 33-spline gear box and the four-slot-spline pitman is for the 32-spline gear
Learn more about the 2001-2010 GM Sierra 2500/3500 7-8" Extreme-Duty Forged Pitman Arm from Truck Tech's SuperMax Project.
