BRAVO Wireless Air Controls Combo Kit - 2.5 Gallon Air Tank - Pacbrake - HP30040-CB2

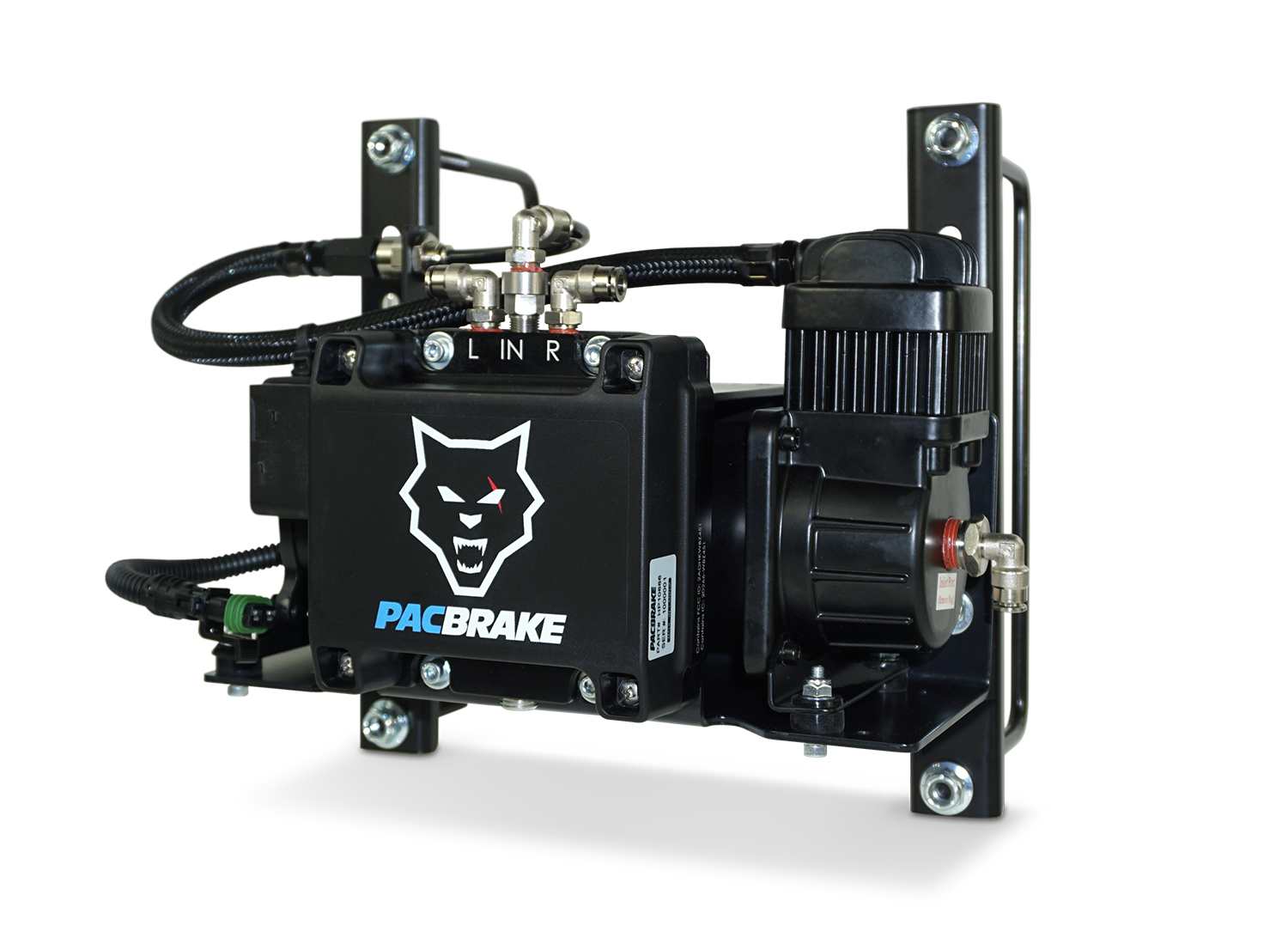

WHAT'S INCLUDEDand#x0D; HP30040-QM - Wireless Air Control Kit with 425 Series compressor. Up to 150 PSI 1.75 CFM and 100% duty cycle at 100 PSI. IP67-sealed for total weatherproof durability.and#x0D; HP10719 - 2.5-Gallon Air Tank Kit. Carbon steel construction with black powder-coated finish internal anti-rust coating and quick-mount bracket. Built for users who need greater air reserve and faster response under heavier loads.and#x0D; HP10720 - Water Separator Kit. Silica bead desiccant with automatic solenoid drain removes moisture from the air system protecting against freeze blockage and extending component life. Maintenance reminders through the BRAVO™ mobile app.and#x0D; HP10723 - Onboard Air Accessory Kit. Includes a 25 ft coiled air hose blow gun with interchangeable nozzles dual-head tire chuck and pressure gauge multiple inflation adapters and a heavy-duty nylon storage bag.; SPECIFICATIONSand#x0D; Ambient Operating Temperature Range: -40°F to +158°F / -40°C to +70°Cand#x0D; Maximum Working Pressure: 150 PSI / 1034 kPaand#x0D; Compressor Duty Cycle: Continuous at 100 PSI / 689.5 kPaand#x0D; Ingress Protection: IP67 (Requires compressor with remote-mounted intake filter)and#x0D; Wireless Connectivity Range: 30 ft / 10 m minimumand#x0D; Air Tank Capacity: 2.5 gallonand#x0D; Air Tank Dimensions: 21" x 6.9" x 8.4" / 534mm x 175mm x 213mmand#x0D; Water Separator Inlet/Outlet: ¼" Push-to-Connect 90° Swivel Desiccant: Silica Bead Drain: Automatic Solenoidand#x0D; Air Accessory Hose Length: 25 ft coiled Quick Connect: ¼" Industrial Interchange; ADD-ONS FOR EVEN MORE CONTROL: Standalone Remote Available - Prefer to keep it simple? Add the HP10660 handheld remote for full air spring control after successful set-up within the mobile BRAVO Wireless Control App. Please note: A mobile app is required for initial set-up servicing and system notifications.; WANT A MORE COMPACT OPTION? HP30040-CB1 (1/2 gallon option): Same complete kit with a ½-gallon air tank ideal for applications where space is limited and a smaller air reserve meets your needs. For Guys Who Expect More from Their Truck and Their Gear. The HP30040-QM is made for truck owners who don’t cut corners. If your pickup sees real work and real weight this is the wireless control system you want backing your air springs. Engineered for maximum output and rock-solid reliability it’s the smart upgrade that delivers serious value.; DOWNLOAD THE APP: Please note: A mobile app is required for initial set-up servicing and system notifications.
The HP30040-CB2 gives you the full BRAVO™ experience without the guesswork of piecing it together. Wireless control stored air capacity DriAir™ moisture protection and a complete accessory kit - all bundled and ready to install.
No drilling no cutting and no sourcing separate components. Just push-to-connect fittings plug-in wiring and a sealed waterproof assembly that's up and running in under an hour.
Meet the HP30040-CB2 - Pacbrake's most complete Wireless Air Control Kit. This combo kit pairs wireless air management with a ½-gallon air tank moisture protection and full accessory capability.
Want an independent remote control in addition to phone app control? Just add an HP10660 remote to your order.
