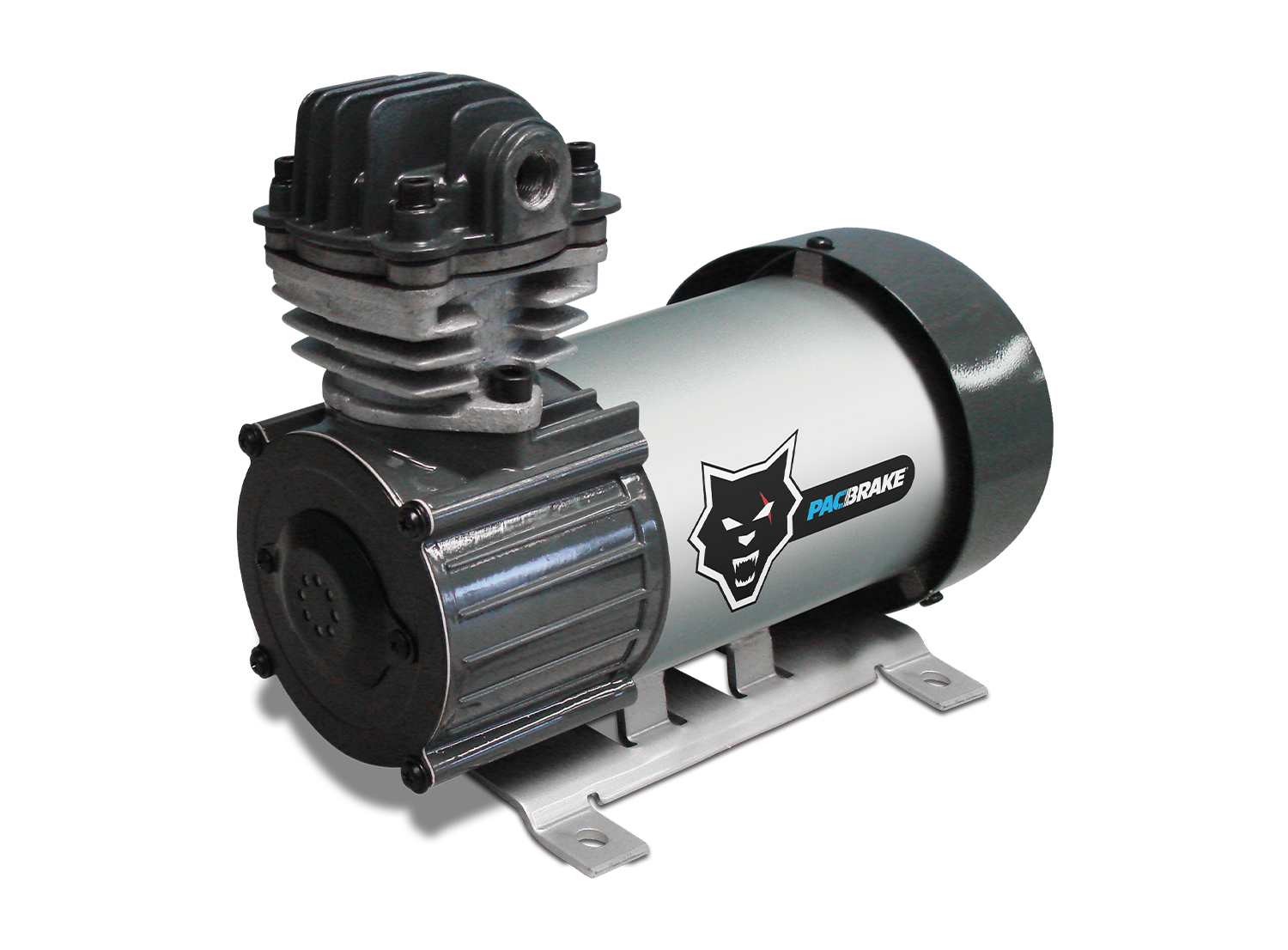

24V HP625 Series Heavy Duty Air Compressor - Vertical Pump Head - Pacbrake - HP10625V-24

Pacbrake's HP625 Series Air Compressors have a 100% duty cycle (60 minutes @ 100 psi) and are offered in 24 VDC Vertical Head configuration (HP10625V-24) or 12 VDC in either a Vertical Head configuration (HP10625V) or Horizontal Head configuration (HP10625H).; 18.5 lbs (8.39kg); PLEASE NOTE: HP625 series compressors require the use of the unloader assembly (Part #: HP10116) for use with an air tank. Basic/Replacement kits are available with unloader kit and all required installation hardware included.; These 3/4 horsepower compressors have an oil-less design sealed bearings a PTFE piston ring a copper wire wound permanent magnet motor and a cast steel cylinder with a hard anodized aluminum sleeve.; Kit Details:; Replacement 24VDC HP625 Series Air Compressor - Gunmetal Grey finish; Vertical Head configuration; Raw Compressor only - Does not include installation hardware (See Basic Kit: HP10630); Does not include any pre-built harnesses (See Premium Kit: HP10633); HP625 Series Compressor Specifications:; 11.5 inch x 6 inch x 9.5 inch (LxWxH) / (293mm x 153mm x 242mm)
Get quick and effortless inflation power at your fingertips with Pacbrake's robust heavy duty compressors!
Pacbrake has been in the business of building heavy-duty products for OEMs and the aftermarket for 50 years now so introducing ''just another air suspension'' simply wouldn't do.Pacbrake's dedication to quality and service has given them the experience to develop the number one air management system on the market.
