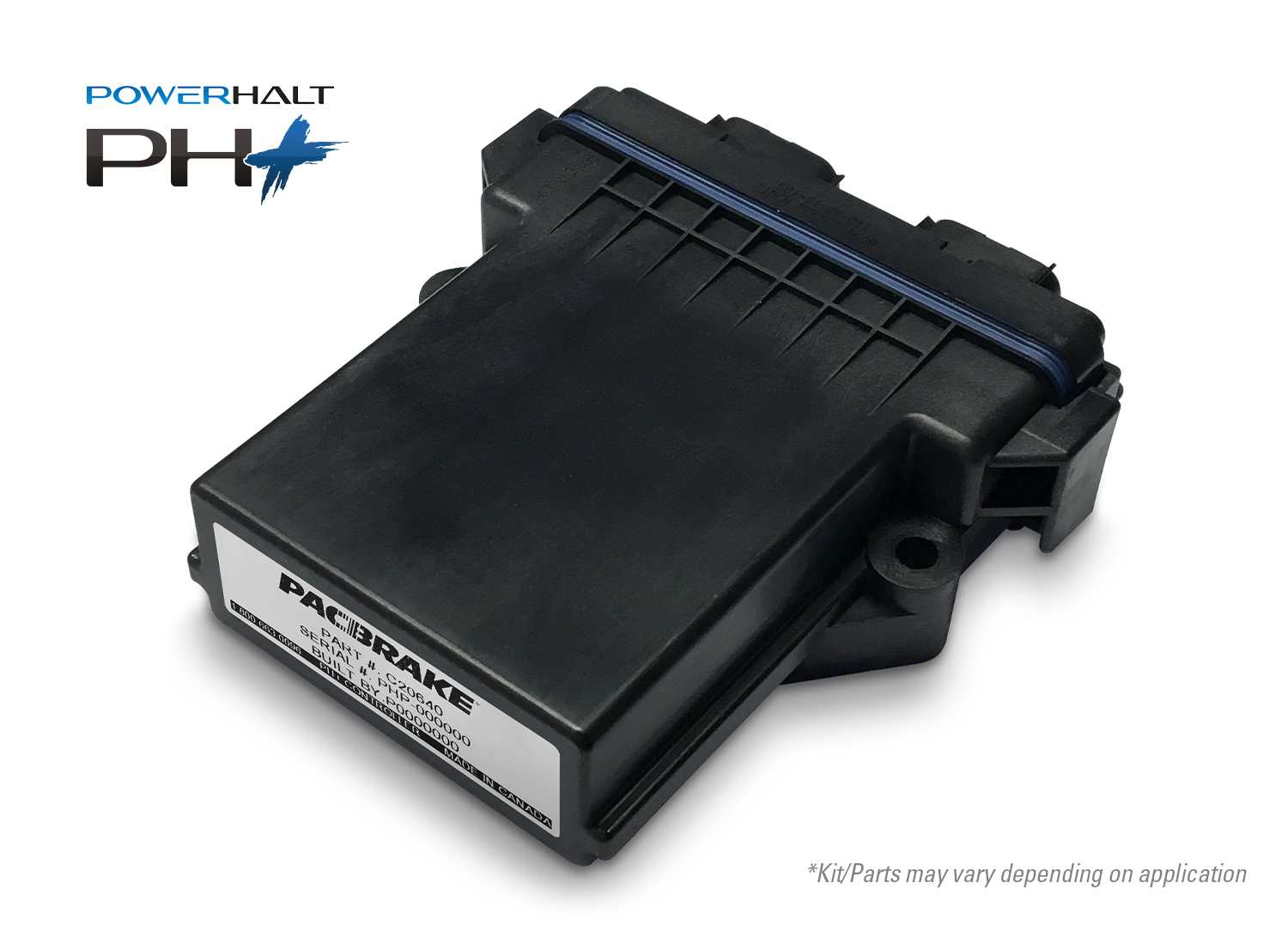

PH+ PowerHalt Electronic Air Shut-off Valve Kit for Duramax 6.6L (LML/LGH) Engine - Pacbrake - C50359A

Pacbrake's PH+ (PowerHalt Plus) Electronic Air Shutoff System is an electronically controlled emergency engine shut down system which forces engine shut down by blocking an engine's air intake path.; Secondary trip speed for PTO and anti-theft applications - providing ground to the Secondary Trip Speed input allows users to engage a second emergency shut-down speed for use while powering auxiliary equipment or to prevent theft. (To prevent accidental shut down while enabling and disabling Secondary Trip Speed a 5 second grace period is applied when switching to a lower trip speed to allow for engine speed to reduce. When switching to a higher trip speed the change is applied immediately.); Kit Contents:; PH+ PowerGuard Controller; Application Specific Harness; Power/Switch Harness; Toggle Switch Assembly; Tie Straps; Self-Tapping Screws; Automatic shutdown is achieved by actuating the engine's existing electronic throttle unit if engine speed exceeds the pre-set speed or by manual override. The valve electronically returns to open position after emergency engine shutdown all while providing feedback to the operator that the valve is held closed via an illuminated switch.; PH+ KEY BENEFITS:; Reliable and safe emergency shut down for diesel engines with electronic throttle body: automatically via overspeed signal or manually via toggle switch (valve remains closed for minimum 15 seconds after tripping and will hold closed until removal of shut-down signal); Capable of shutting down at a secondary trip speed for special applications such as protection of PTO equipment or as an anti-theft device; In-cab switch for manual shutdown included; Auto resets after shutdown; When valve is closed supplied switch light illuminates to indicate system activation; Valve will electronically reset and switch light will extinguish upon removal of engine shut-down signal
Plug play installation factory connectors pre-built wiring harness
Installed in 60 minutes or less
Easily removed
Operator friendly
Multiple built-in shut-off speeds
Will not set ECM trouble codes
IP67 rated seal
Two Year Warranty


Detailed Fitment Results
Year Make Model Engine Size Fuel Body Type 2011-2013, 2015-2016 Chevrolet Silverado 3500 HD DIESEL Standard Cab Pickup / Extended Cab Pickup / Crew Cab Pickup 2011-2013, 2015-2016 GMC Sierra 3500 HD DIESEL Standard Cab Pickup / Extended Cab Pickup / Crew Cab Pickup 2011-2013, 2015-2016 Chevrolet Silverado 2500 HD DIESEL Standard Cab Pickup / Extended Cab Pickup / Crew Cab Pickup 2011-2013, 2015-2016 GMC Sierra 2500 HD DIESEL Standard Cab Pickup / Extended Cab Pickup / Crew Cab Pickup 2013-2016 Chevrolet Silverado 3500 HD 6.6L DIESEL Cab & Chassis 2013-2016 GMC Sierra 3500 HD 6.6L DIESEL Cab & Chassis 2014 Chevrolet Silverado 3500 HD DIESEL Standard Cab Pickup / Crew Cab Pickup 2014 GMC Sierra 3500 HD DIESEL Standard Cab Pickup / Crew Cab Pickup 2014 Chevrolet Silverado 2500 HD DIESEL Standard Cab Pickup / Crew Cab Pickup 2014 GMC Sierra 2500 HD DIESEL Standard Cab Pickup / Crew Cab Pickup
