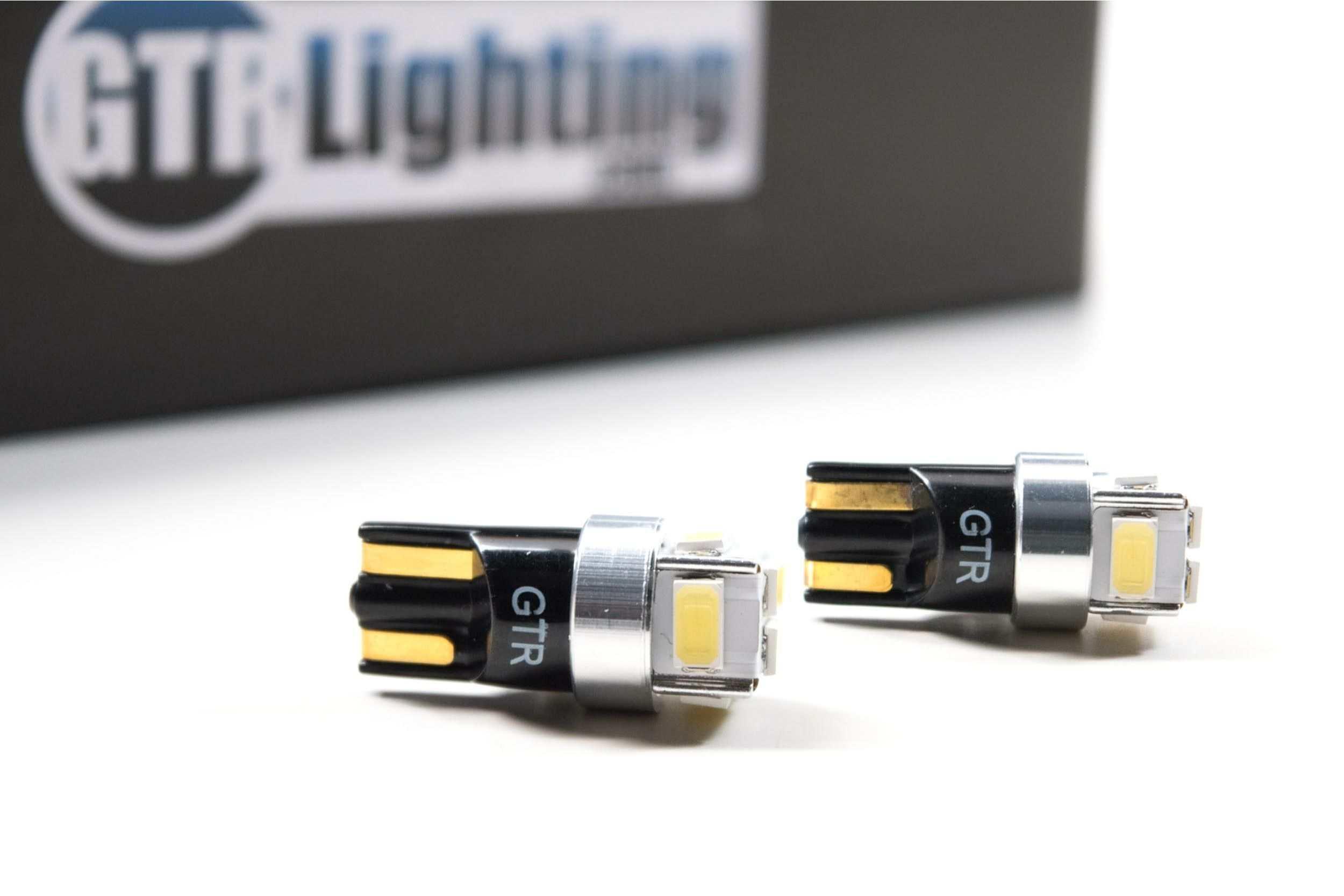

T10/194: GTR 6-Chip Canbus LED (White) - GTR Lighting - GTR.LED315

The newest generation of CANBUS integrating LED bulbs are here!: Our new line: of T10/194 CANBUS LED bulbs are super bright because they utilize the newest Samsung 5630 chips that have a higher efficiency rate than older chips. Our unique ribbon PCB creates a more reliable construction in such a small package. The ribbon-PCB holds the six Samsung 5630 LED chips in the array and stacks them on top of the plastic connector for a low profile and secure design. It's our goal to push the envelope in automotive LED lighting, and this time we came out with a truly impressive bulb! This bulb style: is commonly referred to as T10, and fits the most common applications inside and outside your vehicle. Works great in dome lights, license plate lights, door lights, parking lights, and in some DRL or reverse light applications! We built this bulb to be small enough to fit any application, but also bright enough to be impressive! This bulb: is designed from the ground up to be better than the last bulbs you were using! We used 6 Samsung 5630 SMD LED chips in a 360 degree shape. You'll also see that the molded plastic connector and flat metal pins are of the highest quality around! No cut corners here, truly designed to be the best of the best, you will love them! The other main purpose: of this bulb was to integrate with common CANBUS systems found in most vehicles today. If other bulbs dim when they're supposed to be turned off, or flicker, or give you an error message, then YOU NEED THESE! Our CAN-6 T10 bulbs have a built in CANBUS integration circuit that allows them to work with all late model vehicles where PWM or CANBUS dimming and control circuits are present. These LED bulbs will replace any T10 bulb, more commonly called 194/168. Here is the cross reference for this bulb: W5W, 194, 501, 147, 152, 158, 159, 161, 168, 184, 192, 193, 259, 280, 285, 447, 464, 555, 558, 585, 655, 656, 657, 1250, 1251, 1252, 2450, 2652, 2921, and 2825 Technology: Our CAN-6 T10 LED bulbs feature a high tech CANBUS-Integration-Circuit to work with most vehicles like Dodge, Mercedes, VW, Ram, Chevy, Mercedes and others. Constant Current Integrated Circuit LED Driver: Allows the bulb to regulate the voltage so it works perfectly under varying voltage situations. If your bulb DOES NOT have a constant current IC, it's prone to failure from voltage fluctuations. 30 Volt Surge Protection: Even if your vehicle has a power spike, anything up to 30 volts will be protected from harming the bulb! Non-Polarity Circuit: Many bulbs on the market don't work both ways plugged into the socket, ours do! This ensures easy installation and less headaches down the road. Just plug it in and know it's going to work! Recommended Application: Reverse / Back Up Lights Cargo Lights Interior Lighting
Technical Specifications:
Intensity: 190lm
Power: 2.3W
Current: 195mA @ 12V DC
Dimensions: 1.23in W, 0.44in D
Color Rating: 6000K
What's Included:
Bulb: 1x T10/194 White GTR 6-Chip Canbus LED Bulb
Warranty: 2 Years
