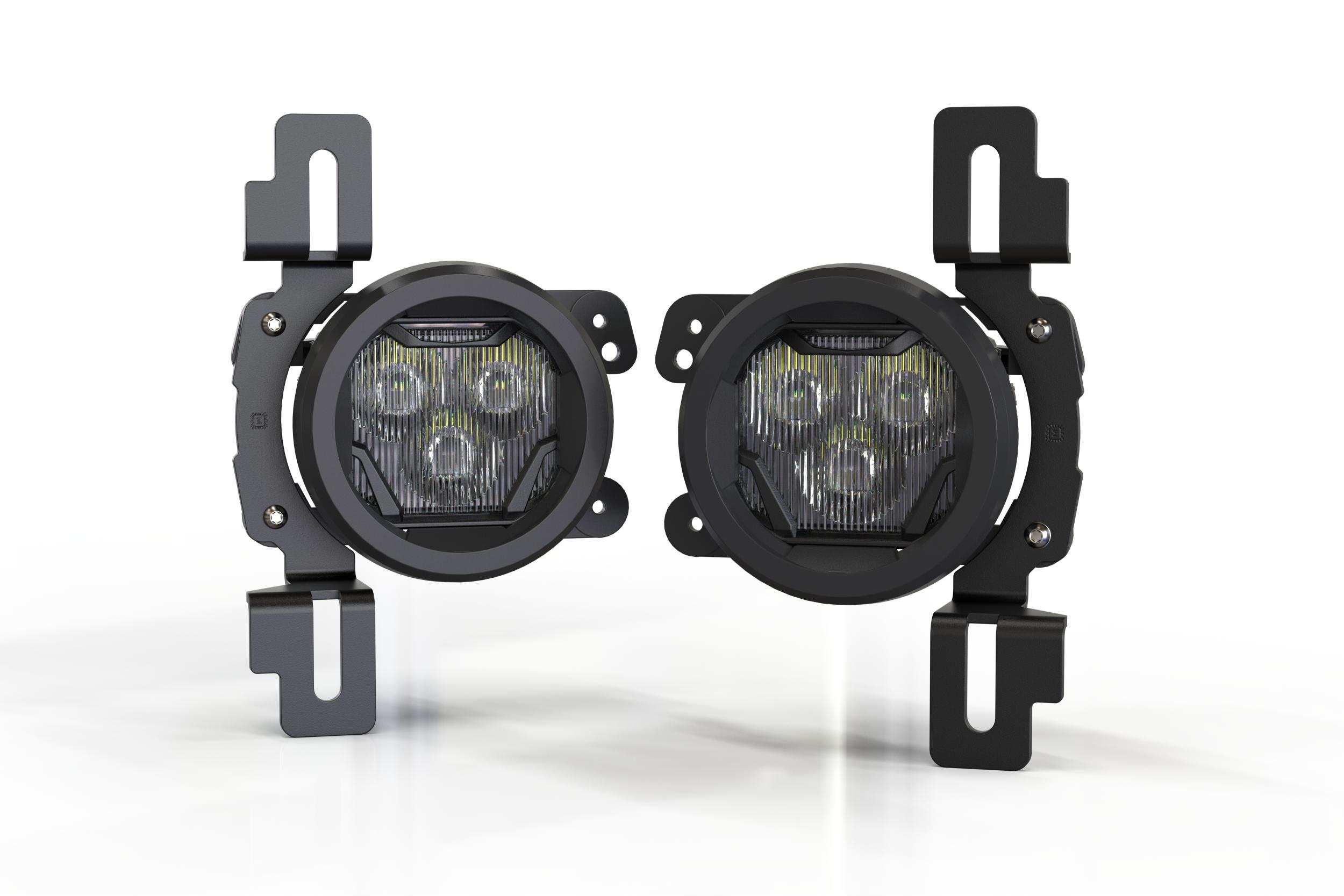

4Banger Fog Light Kit: 18+ JL/JT (NCS / Wide / Yellow / Set) - Morimoto - BAF078Y

SAE Compliant Fog Lights: The Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light. But what's better than producing the best and brightest beam patterns that are safe for use on public roads as a fog light? The best fog-light specific mounting brackets for your Jeep, of course. Engineered Solution: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a Wrangler JL or Gladiator JT owner could ask for. Easy Setup: Everything is designed to bolt-on and plug-n-play for both factory plastic and factory steel bumpers. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights. Fully Adjustable: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic. Air Cooled: As if the style, the fitment, the adjustability aren't enough, we have incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink. All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog --the Yellow-output version will slay in sour weather. NCS Wide Beam: Offers the same super wide beam pattern backed with LEDs from Nichia. Their superior vertical gradient control also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light, making them highly effective on the ground and glare-free for oncoming traffic. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W).
Technical Specifications:
Intensity: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
Input Voltage: 9-18V DC
Power: 15.6w (Each)
Current: 1.5A (Each)
Dimensions: 82mm W, 67mm H, 60mm D
Light Source: 3x Nichia NCSY131F
Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP Rating: IP69K (Dust / High Pressure Water Resistant)
What's Included:
Fog Light Brackets: 2x (One Pair) Morimoto Steel or Plastic Brackets
LED Pods: 2x (One Pair) Morimoto 4Banger NCS Wide (Yellow)
Hardware: Complete Pack (Stainless Steel)
Wiring: Plug N Play Connection Kit
Warranty: Lifetime Limited


Detailed Fitment Results
Year Make Model 2018 Jeep Wrangler 2019 Jeep Wrangler 2020 Jeep Gladiator 2020 Jeep Wrangler 2021 Jeep Gladiator 2021 Jeep Wrangler 2022 Jeep Gladiator 2022 Jeep Wrangler 2023 Jeep Gladiator 2023 Jeep Wrangler 2024 Jeep Gladiator 2024 Jeep Wrangler
