4Banger Universal Kit (NCS / Spot / White) - Morimoto - BAF001UNL

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment and style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patent-pending line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level. Form Meets Function: The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper. Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design. All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather). Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance. Street Legality: When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an for auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, both the NCS and Wide beam models are SAE J583 compliant for use as a street legal fog light. Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods and are a friction + clip fit that installs with ease and can be removed in seconds. Bolt-On: This kit includes a pair of the Gen I 4Banger LED pods, a set of roll bar/ tube mounts for a range of diameters 3/4in to 2in, as well as a set of angle-adjustable U-brackets to make for easy installation in any direction. They can be used together or separately if the tube-clamps are not needed. It also includes a universal harness to make quick work of powering up your new 4Bangers. This switched relay harness has a pair of DT06-2S female outputs with dual seals and gets power via 12V+/ground and toggle switch. All of this at a price less than buying the pods alone, but only available while supplies last!
Technical Specifications:
Note: These specifications are per pod / each!
Intensity (White): 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
Intensity (Yellow): 73,500 Cd (Post Warm-Up) (735lux @ 10m)
Input: Proprietary Overmolded Deutsch DT 2-Pin
Power (stabilized): 15.6w
Current: 1.5A @ 13.5V DC
Peak Luminosity (raw): 1,350lm
Dimensions: 82mm W, 67mm H, 60mm D
Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Light Source: 3x Nichia NCSY131F or NCSW131F
What's Included:

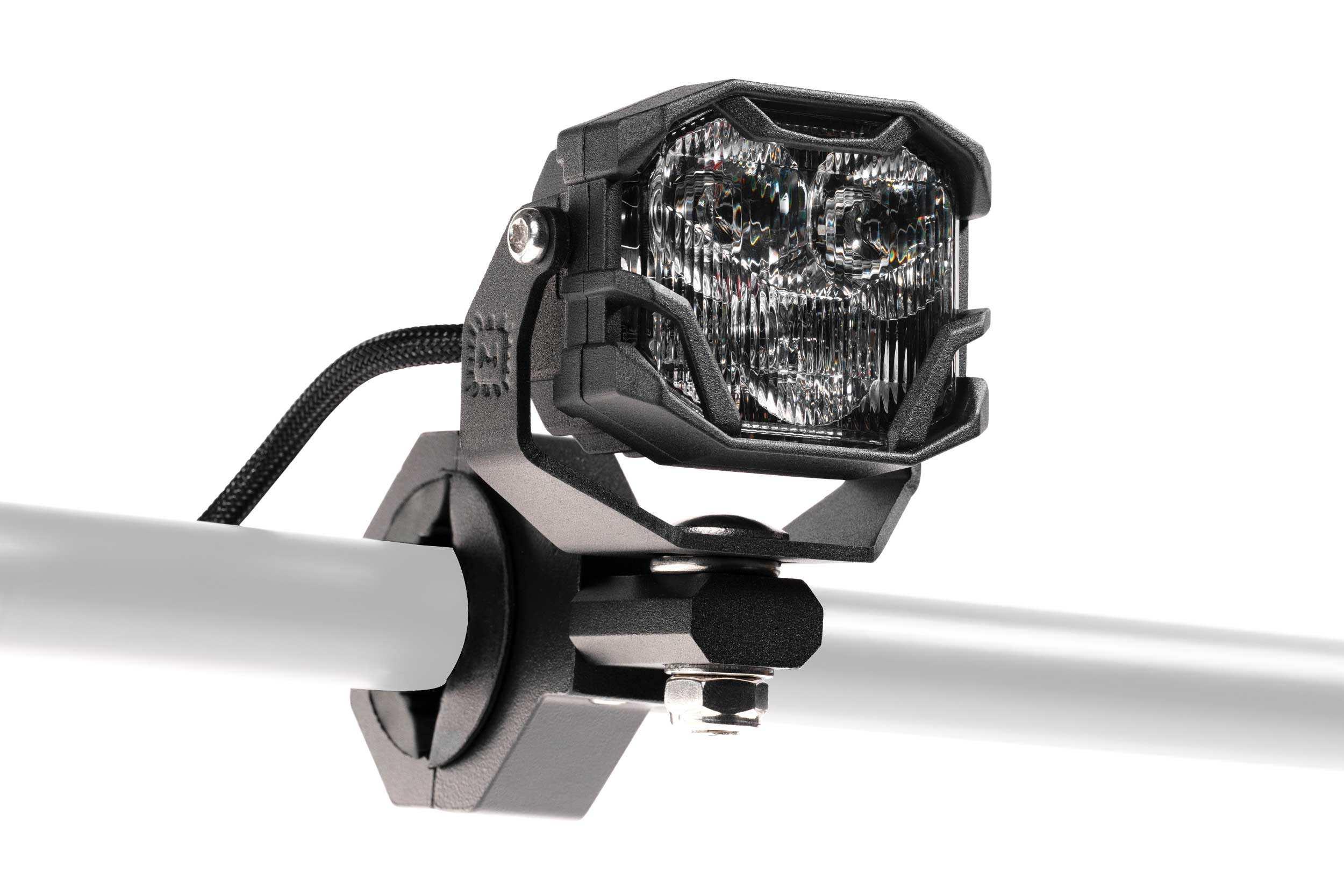

LED Pods: 2x (One Pair) Morimoto 4Banger NCS
Brackets: 2x (One Pair) Universal Tube / Bar Mounts
Hardware: Complete pack (stainless steel)
Wiring: 1x Universal Switched Relay Harness
Warranty: Lifetime Limited
