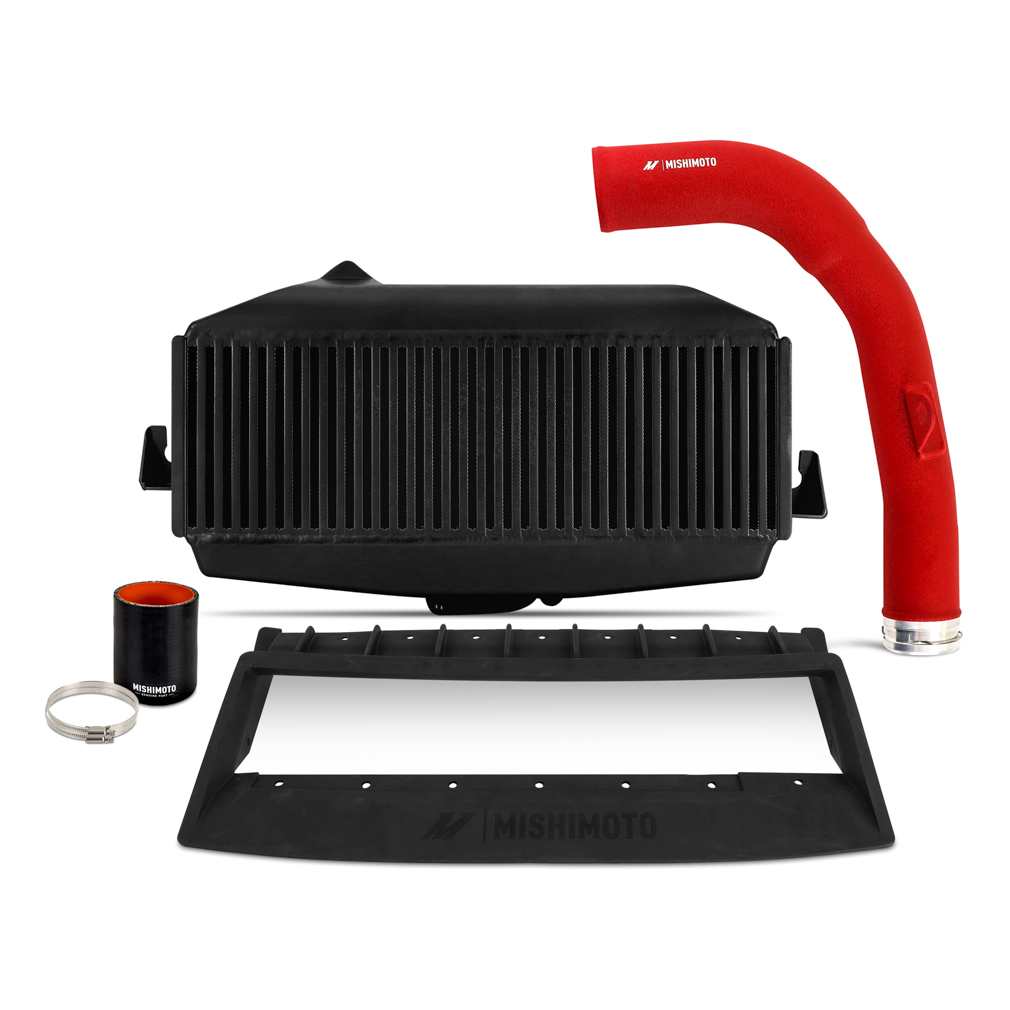

Top-Mount Intercooler Kit, Red Pipe, fits Subaru WRX 2022+ - Mishimoto - MMTMIC-WRX-22KBKRD

The Subaru WRX is a car that begs to be driven at ten-tenths and as enthusiasts we're happy to oblige. At the same time we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler kit. This kit includes everything you need to let your FA24 breathe all the cool boost it could ever want.----Starting at the turbo we've upgraded the stock plastic charge pipe with mandrel-bent and CNC-machined aluminum. Smooth bends and transitions improve flow by 20 percent over stock. The integrated turbo quick disconnect reduces failure points so you never have to worry about a hard-to-access coupler popping off during a pull and the all-aluminum construction resists high boost pressures better than the stock plastic pipe.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not though if we didn't have a way to get cool outside air over the intercooler. To do that we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop.----This kit includes everything needed for installation including new shroud hardware. It's available with a black or silver intercooler and black or red pipes to match any color scheme and with our Mishimoto Lifetime Warranty you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.
Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
35.7 percent less pressure drop than stock means more boost makes it into the engine
Lowers outlet temps to less than 10 degrees over ambient for safe performance
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 7 IN
Core Thickness: 4 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Red
Core Length: 20.5 IN
Inlet Diameter: 0 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 0 IN
Maximum Boost Pressure: 100 PS
Core Color: Black
Maximum Horsepower: 600 HJ
Install Difficulty: 1
OptionLabel: Black Intercooler Red Pipe
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2022+ Subaru WRX
SellingPoint02: Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
SellingPoint03: 35.7 percent less pressure drop than stock means more boost makes it into the engine
SellingPoint04: Lowers outlet temps to less than 10 degrees over ambient for safe performance
SellingPoint05: Integrated turbo quick disconnect eliminates leak points for improved reliability
SellingPoint06: 88 percent increase in core volume for improved cooling efficiency
SellingPoint07: 76 percent increase in fin surface area for superior heat transfer
SellingPoint08: Includes expanded shrouding for maximum airflow and coverage
SellingPoint09: Cold-side tank include 1/8-NPT port for boost or temp sensors
SellingPoint10: Mandrel-bent full aluminum charge pipe for improved flow and durability
SellingPoint11: Cast aluminum end tanks reduce failure points for high boost applications
SellingPoint12: Complete system upgrade allows your FA24 to breathe freely
SellingPoint13: Includes everything needed for installation including shroud hardware
SellingPoint14: Patent Pending
SellingPoint15: Mishimoto Lifetime Warranty
TechSpec Applications: Subaru WRX H4 2.4L Turbo 2022+
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VB
TechSpec Core Height (in): 7
TechSpec Core Length (in): 20.5
TechSpec Core Thickness (in): 4
TechSpec Core Type: Bar-And-Plate
TechSpec Engine Codes: FA24DIT
TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Mishimoto Charge Pipe--(1) Mishimoto Intercooler Shroud--(36) Shroud Plastic Rivets--(11) Shroud Mount Panel Clips--(1) Silicone Coupler--(2) Stainless-Steel Worm Gear Clamps--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: Upon removal of factory intercooler inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.
TechSpec Maximum Recommended Boost Pressure (PSI): 100
TechSpec Maximum Recommended Horsepower: 600
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 12.96
TechSpec Overall Length (in): 24.51
TechSpec Overall Width (in): 4.38
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
