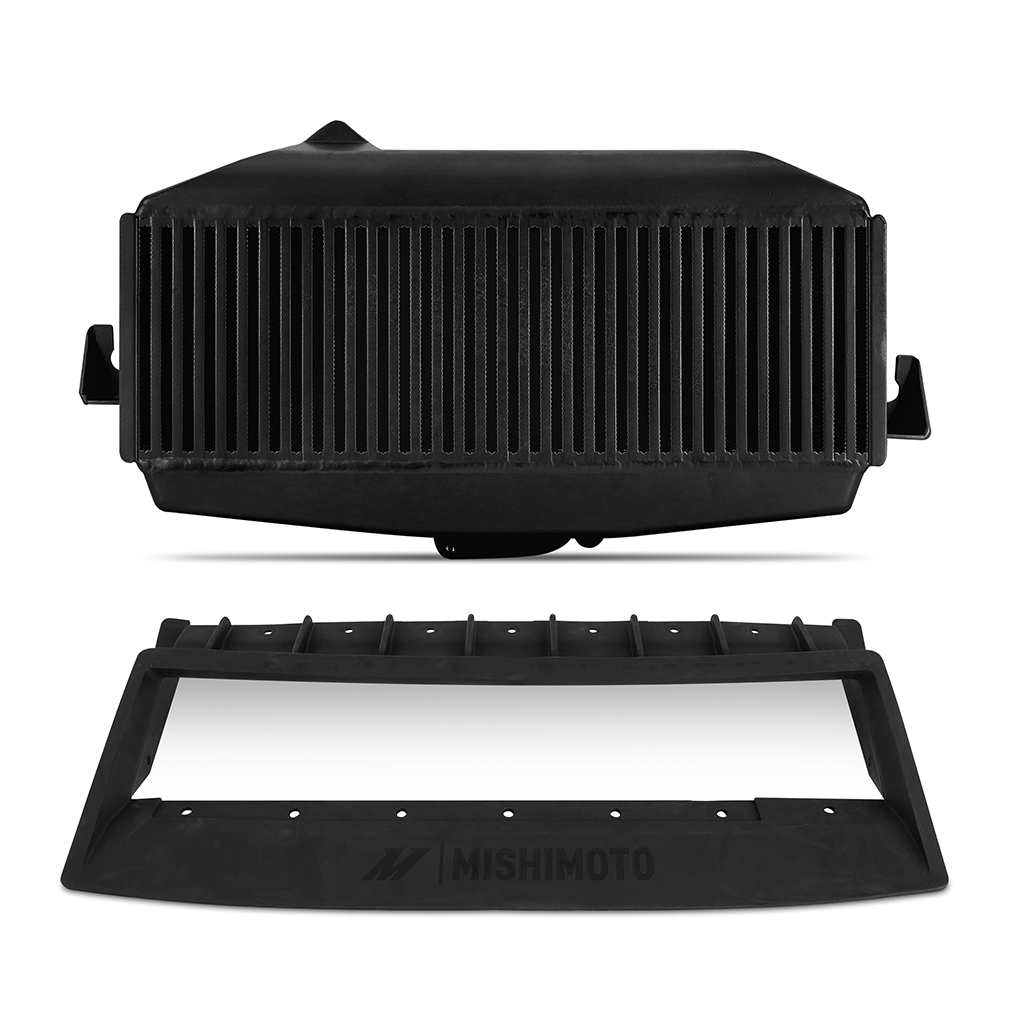

Top-Mount Intercooler, Black, fits Subaru WRX 2022+ - Mishimoto - MMTMIC-WRX-22BK

The Subaru WRX is a car that begs to be driven at ten-tenths and as enthusiasts we're happy to oblige. At the same time we know the WRX is capable of much more with a few well-designed upgrades. One upgrade that's sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler. This top mount intercooler lets your FA24 breathe all the cool boost it could ever want.----The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not though if we didn't have a way to get cool outside air over the intercooler. To do that we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop. A pre-drilled tapped and plugged 1/8-NPT port allow you to easily add temp or boost pressure sensors.----This kit includes everything needed for installation including new shroud hardware. It's available with in black or silver to match any color scheme and with our Mishimoto Lifetime Warranty you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.
Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
88 percent increase in core volume for improved cooling efficiency
Lowers outlet temps to less than 10 degrees over ambient for safe performance
Inlet Outside Diameter: 0 IN
Outlet Outside Diameter: 0 IN
Length: 24.51 IN
Width: 4.38 IN
Type: Bar-and-Plate
Core Height: 7 IN
Core Thickness: 4 IN
Core Material: Aluminum
Height: 12.96 IN
Universal Or Specific Fit: Specific
Grade Type: Performance
Inlet Fitting Gender: Male
Outlet Fitting Gender: Male
Core Length: 20.5 IN
Inlet Tank Material: Aluminum
Core Color: Black
Install Difficulty: 1
OptionLabel: Black
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2022+ Subaru WRX
SellingPoint02: Bar-and-plate core reduces restriction by 40.6 percent for improved efficiency
SellingPoint03: 88 percent increase in core volume for improved cooling efficiency
SellingPoint04: Lowers outlet temps to less than 10 degrees over ambient for safe performance
SellingPoint05: 35.7 percent less pressure drop than stock means more boost makes it into the engine
SellingPoint06: 76 percent increase in fin surface area for superior heat transfer
SellingPoint07: Includes expanded shrouding for maximum airflow and coverage
SellingPoint08: Cold-side tank include 1/8-NPT port for boost or temp sensors
SellingPoint09: Cast aluminum end tanks reduce failure points for high boost applications
SellingPoint10: Includes everything needed for installation including shroud hardware
SellingPoint11: Patent Pending
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Subaru WRX H4 2.4L Turbo 2022+
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VB
TechSpec Core Height (in): 7
TechSpec Core Length (in): 20.5
TechSpec Core Thickness (in): 4
TechSpec Core Type: Bar-And-Plate
TechSpec Engine Codes: FA24DIT
TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Mishimoto Intercooler Shroud--(36) Shroud Plastic Rivets--(11) Shroud Mount Panel Clips--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Installation Notes: Upon removal of factory intercooler inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.
TechSpec Maximum Recommended Boost Pressure (PSI): 100
TechSpec Maximum Recommended Horsepower: 600
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 12.96
TechSpec Overall Length (in): 24.51
TechSpec Overall Width (in): 4.38
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
