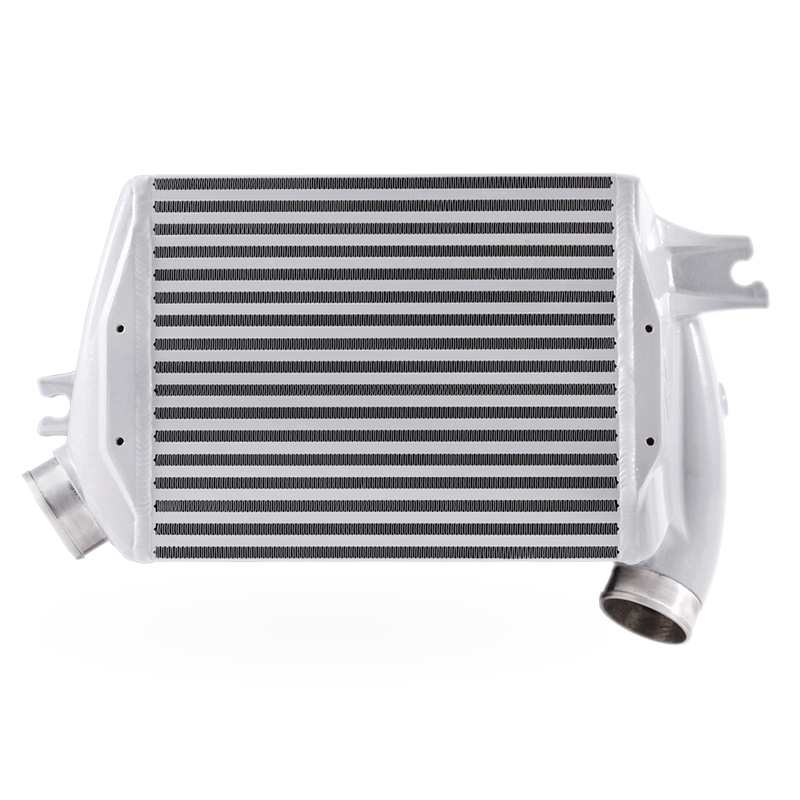

Street Performance Top-Mount Intercooler Kit, fits Subaru WRX 2015-2021 - Mishimoto - MMTMIC-WRX-15XSL

These days It's almost more uncommon to find a 2015-2021 Subaru WRX owner that isn?t looking to push more boost through their FA20DIT and give their morning commute a little more zest. With more boost comes the stock intercooler unit quickly gets in over its head. Mishimoto has the perfect intercooling solution with the Mishimoto 2015-2021 Subaru WRX Street Performance Top-Mount Intercooler. The Mishimoto'street Performance Intercooler takes the place of the stock unit and is specifically designed for use on the stock tune up to stage 2 maps and tunes. Our intercooler features fully cast aluminum end tanks TIG-welded to a robust bar-and-plate core designed for maximum cooling and minimal pressure drop. The new design boasts a 76-percent increase in core volume and 81-percent bump in external fin surface area equating to a 34?F drop in outlet temperatures over the stock unit. The 12-percent increase in flow is another reason why this intercooler the perfect addition to your tuned WRX This intercooler available in black silver or gold with the optional add on of the Mishimoto ducting for increased airflow. Like all of our products the Mishimoto 2015-2021 Subaru WRX Street Performance Top-Mount Intercooler includes the Mishimoto Lifetime Warranty for a worry free installation.
Designed for optimal performance on vehicles using up to stage 2 tuning
Drops intercooler outlet temperature by 34F over stock unit
12-percent increase in flow
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.5 IN
Cold Side Pipe Inside Diameter: 2.5 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 3.94 IN
Core Thickness: 3.9 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Silver
Core Length: 11.7 IN
Inlet Diameter: 2.5 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.5 IN
Maximum Boost Pressure: 0 PS
Core Color: Silver
Maximum Horsepower: 0 HJ
Install Difficulty: 2
OptionLabel: Silver
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2021 Subaru WRX
SellingPoint02: Designed for optimal performance on vehicles using up to stage 2 tuning
SellingPoint03: Drops intercooler outlet temperature by 34F over stock unit
SellingPoint04: 12-percent increase in flow
SellingPoint05: 76-percent increase in core volume over stock
SellingPoint06: 81-percent increase in external fin surface area
SellingPoint07: 100-percent aluminum construction with fully cast end tanks
SellingPoint08: Bar-and-plate core designed for maximum cooling and minimal pressure drop
SellingPoint09: Compatible with stock engine cover and charge pipe
SellingPoint10: Includes pre-drilled and tapped NPT sensor port
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 Subaru WRX--2014-2018 Subaru Forester XT
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VA
TechSpec Core Height (in): 3.94
TechSpec Core Length (in): 11.7
TechSpec Core Thickness (in): 3.9
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: FA20DIT
TechSpec Includes: (1) Mishimoto Intercooler--(2) Stock Engine Cover Adapters--(1) Silicone Throttle Body Adapter--(2) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 2.5
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A
