Performance Top-Mount Intercooler Kit, Black, Race, fits Subaru WRX 2015-2021 - Mishimoto - MMTMIC-WRX-15RBK

Are you looking for a way to reduce high intake temperatures on your stock or modified 2015-2021 Subaru WRX? The solution is the Mishimoto direct-fit 2015-2021 Subaru WRX Race top-mount intercooler kit engineered specifically for your highly modified 2015-2021 Subaru WRX. The stock 2015-2021 Subaru WRX intercooler is prone to heat soak during repeated wide open throttle pulls and during track use. Mishimoto engineers spent months designing the 2015-2021 Subaru WRX parts and testing this top-mount intercooler to ensure optimum performance on your highly modified WRX. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient dense bar-and-plate core. The Mishimoto 2015-2021 Subaru WRX intercooler has a 4in. thick core and a total volume of 625 cubic inches making it one of the largest top-mount intercoolers you can buy.; Thanks to this volume and a very dense offset fin pitch we are able to optimize heat transfer and support your vehicle from stock up to 500 whp. This WRX intercooler endured rigorous testing showing a 35F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 EcuTek tune. Installation is simple requires no modification to any parts in the engine bay and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimoto's innovative 2015-2021 Subaru WRX charge-pipe utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler. The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose an intercooler to throttle body hose and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation and they ensure years of reliable service.
Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune
Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune
100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.5 IN
Cold Side Pipe Inside Diameter: 3 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 0 IN
Core Thickness: 4 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Red
Core Length: 0 IN
Inlet Diameter: 2.5 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 3 IN
Maximum Boost Pressure: 35 PS
Core Color: Black
Maximum Horsepower: 450 HJ
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Black Intercooler Red Pipe
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2015-2021 Subaru WRX
SellingPoint02: Provides 35 F temperature drop compared to stock intercooler on a stage 2 tune
SellingPoint03: Proven 15 whp and 8 wtq bolt-on power increase on a stage 2 tune
SellingPoint04: 100-percent aluminum construction with durable cast end tanks TIG-welded to a highly efficient bar-and-plate core
SellingPoint05: TIG-welded to a highly efficient bar-and-plate core
SellingPoint06: Intercooler core designed for maximum cooling efficiency and minimal pressure drop
SellingPoint07: Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
SellingPoint08: Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability
SellingPoint09: Includes new BPV hoses hot side coupler and silicone throttle body hose
SellingPoint10: Comes with all necessary hardware clamps and brackets for an easy installation
SellingPoint11: Pre-marked area for NPT sensor
SellingPoint12: Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 WRX--2014-2018 Forester XT
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: VA
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): 4
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: FA20DIT

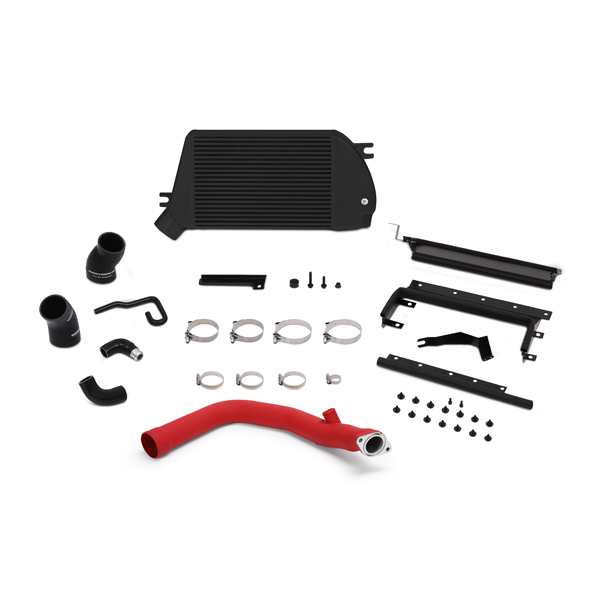

TechSpec Includes: (1) Bar-and-Plate Intercooler--(1) Optional Charge-Pipe--(1) Intercooler Mounting Bracket--(1) Air Diverter with Attached Rubber Gaskets--(1) Charge-Pipe to Intercooler Hose--(1) Intercooler to Throttle Body Hose--(3) Bypass Valve Hoses--(2) 3-in T-bolt Clamp--(2) 3.5-in T-bolt Clamp--(4) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
TechSpec Maximum Recommended Boost Pressure (PSI): 35
TechSpec Maximum Recommended Horsepower: 450
TechSpec Note: This kit is rated for 300-450 whp with maximum limits of approximately 500 whp or 35 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.----Tuning is not necessary after installing our top-mount intercooler and charge-pipe but you will see optimal performance if tuning is performed after the intercooler is installed.----The top-mount intercooler will not fit with the stock engine cover due to its larger size.
TechSpec Outlet (in): 3
TechSpec Overall Height (in): 10
TechSpec Overall Length (in): 24
TechSpec Overall Width (in): 5
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 24.5
