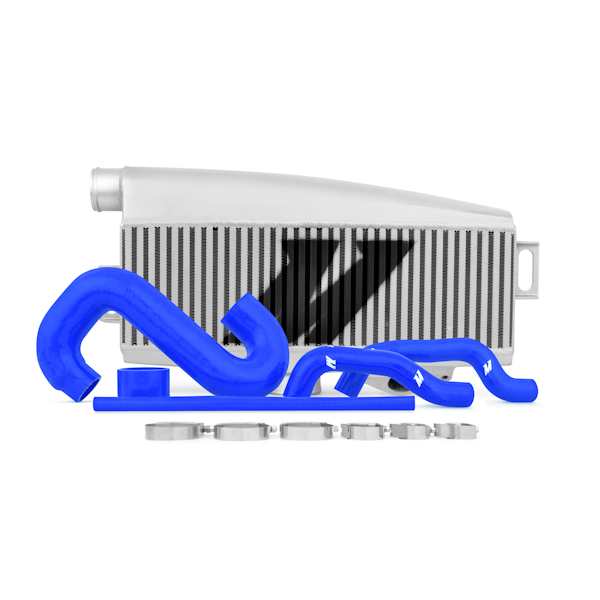

Top-Mount Intercooler Kit, Silver w/ Blue Pipes, fits Subaru WRX/STI 2002-2007 - Mishimoto - MMTMIC-WRX-01SLBL

Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI a silicone crankcase ventilation hose a bypass valve gasket a silicone throttle body hose and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details check out the engineering report! Thanks to a precision engineered and tested core construction this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
High efficiency bar-and-plate core provides increased volume optimal heat transfer and significantly reduces AITs
Durable and precision engineered cast aluminum end tanks provide smooth flow
Includes silicone bypass hose silicone crankcase ventilation hose bypass valve gasket T-bolt clamps and all hardware for installation
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 2.5 IN
Cold Side Pipe Inside Diameter: 2.75 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 6 IN
Core Thickness: 3.5 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Blue
Core Length: 19 IN
Inlet Diameter: 2.5 IN
Coupler Color: Blue
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 2.75 IN
Maximum Boost Pressure: 22 PS
Core Color: Silver
Maximum Horsepower: 305 HJ
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Silver Intercooler Blue Hoses
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2002-2007 Subaru WRX/STI
SellingPoint02: High efficiency bar-and-plate core provides increased volume optimal heat transfer and significantly reduces AITs
SellingPoint03: Durable and precision engineered cast aluminum end tanks provide smooth flow
SellingPoint04: Includes silicone bypass hose silicone crankcase ventilation hose bypass valve gasket T-bolt clamps and all hardware for installation
SellingPoint05: Unique single inlet design provides superior airflow and proper dispersion of air through the core
SellingPoint06: Gained 14 hp and dropped intake temperatures 30 F when installed in 305 hp vehicle with 20-22 psi of boost
SellingPoint07: Will support vehicles with up to 350 hp
SellingPoint08: Available in Sleek Silver or Stealth Black finish
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: GD6--GG6
TechSpec Core Height (in): 6
TechSpec Core Length (in): 19
TechSpec Core Thickness (in): 3.5
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: EJ20--EJ25
TechSpec Includes: (1) Bar-and-Plate Intercooler--(5) Silicone Hoses and Couplers--(1) High-Temp Silicone hose--(2) 3-in T-bolt Clamps--(1) 2.75-in T-bolt Clamp--(1) 2.25-in T-bolt Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting 3/4-in I.D.--(1) WRX specific BPV hose--(1) STI specific BPV hose--(1) Intercooler to throttle body coupler--(1) PCV hose
TechSpec Inlet (in): 2.5
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Maximum Recommended Horsepower: 305
TechSpec Note: This kit is rated for approximately 350 whp or 25PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles.
TechSpec Outlet (in): 2.75
TechSpec Overall Height (in): 11.25
TechSpec Overall Length (in): 22.25
TechSpec Overall Width (in): 3.625
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 17.25
