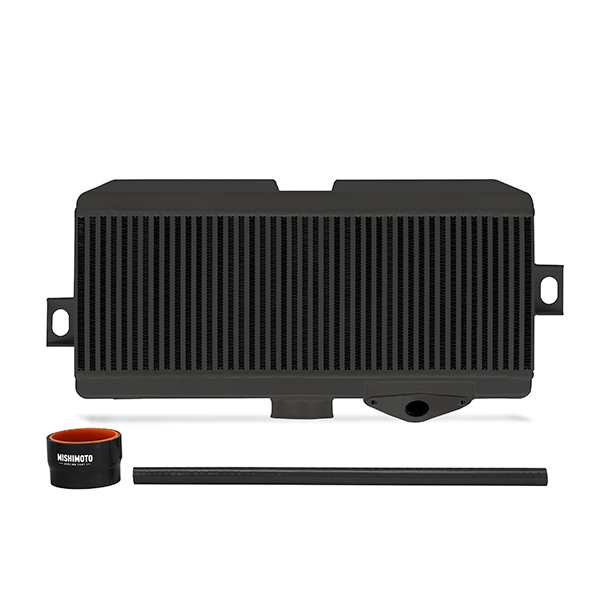

Performance TMIC, Black Hoses Black Cooler, fits Subaru WRX STI 2008-2021 - Mishimoto - MMTMIC-STI-08BKBK

Looking for a way to reduce high intake temperatures on your stock or modified STI? The solution is the Mishimoto direct-fit top-mount intercooler engineered specifically for the 2008-2021 Subaru WRX STI. Mishimoto engineers spent months designing and testing this new intercooler to ensure optimum performance on both the street and track. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient dense bar-and-plate core. The Mishimoto intercooler has a 3.75 inch thick core and a total volume of 584 in3. Thanks to this volume and a very dense offset fin pitch we are able to optimize heat transfer and support vehicles from stock up to 400 whp. This intercooler endured rigorous testing showing a 10 degree Fahrenheit temperature drop as well as a +5 whp and +7 wtq bolt-on power increase for our stock test vehicle. Installation is simple requires no modification to the stock A/C line and can be completed in under 30 minutes. Included with this intercooler are new Y-pipe gaskets a new BPV gasket a silicone PCV hose and a silicone throttle-body coupler. These components negate the need to gather supplies for installation and they ensure years of reliable service. This intercooler is available in a durable powder-coated finish of Stealth Black or Sleek Silver and it includes the Mishimoto Lifetime Warranty.
Provides 10 F temperature drop compared to stock intercooler
Proven 5 whp and 7 wtq bolt-on power increase for stock vehicle
3.75-in thick core with 584 in3 of volume produces optimal heat transfer for vehicles from stock to 400 whp
End Tank Material: Aluminum
Pipe Finish: Powder Coated
Hot Side Pipe Inside Diameter: 0 IN
Cold Side Pipe Inside Diameter: 0 IN
Intercooler Type: Air-to-Air
Core Construction: Bar-and-Plate
End Tank Construction: Cast
Core Height: 7.25 IN
Core Thickness: 3.75 IN
Core Material: Aluminum
Universal Or Specific Fit: Specific
Grade Type: Performance
Pipe Material: Aluminum
Pipe Color: Black
Core Length: 21 IN
Inlet Diameter: 0 IN
Coupler Color: Black
Coupler Material: Silicone
Hose Clamps Included: Yes
Outlet Diameter: 0 IN
Maximum Boost Pressure: 0 PS
Core Color: Black
Maximum Horsepower: 0 HJ
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Black Intercooler Black Hoses
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2008-2021 Subaru WRX STI
SellingPoint02: Provides 10 F temperature drop compared to stock intercooler
SellingPoint03: Proven 5 whp and 7 wtq bolt-on power increase for stock vehicle
SellingPoint04: 3.75-in thick core with 584 in3 of volume produces optimal heat transfer for vehicles from stock to 400 whp
SellingPoint05: 100-percent aluminum construction with durable cast end tanks
SellingPoint06: TIG-welded to a highly efficient bar-and-plate core
SellingPoint07: Easily installs in under 30 minutes
SellingPoint08: Does not require modification to the stock A/C line and functions with the stock intercooler Y-pipe
SellingPoint09: Includes new Y-pipe gaskets BPV gasket silicone PCV hose and silicone throttle-body coupler
SellingPoint10: Available in durable powder-coated Stealth Black or Sleek Silver finish
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2008-2021 Subaru WRX STI
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: GR--GV
TechSpec Core Height (in): 7.25
TechSpec Core Length (in): 21
TechSpec Core Thickness (in): 3.75
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: EJ257--EJ255
TechSpec Includes: (1) Bar-and-Plate Intercooler--(1) Intercooler to Throttle Body Transition Coupler--(1) PCV Hose--(1) Bypass Valve Gasket--(2) Y-pipe to Intercooler Gaskets--(1) Black Nylon Hose Fitting 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting 3/4-in I.D.
TechSpec Inlet (in): N/A
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): N/A
TechSpec Maximum Recommended Horsepower: N/A
TechSpec Note: This kit is rated for 250-450 whp with maximum limits of approximately 500 whp or 30 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 11.5
TechSpec Overall Length (in): 24.5
TechSpec Overall Width (in): 4.25
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): 21
