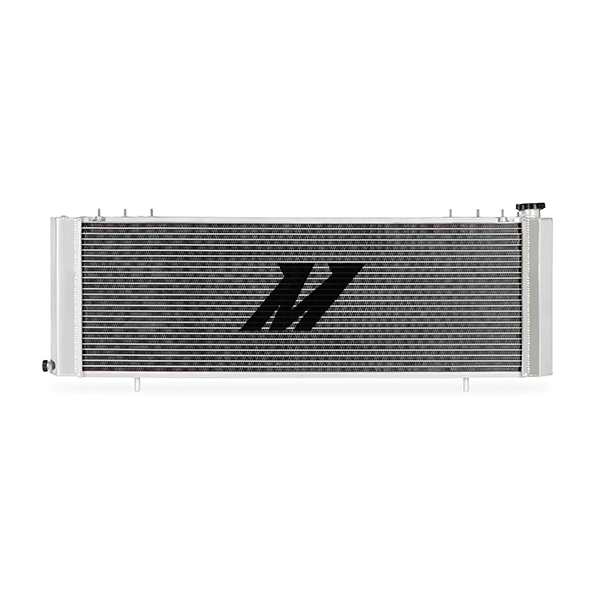

Performance Aluminum Radiator, fits Jeep Cherokee XJ 1989-2001 - Mishimoto - MMRAD-XJ-89

Performance Jeeps deserve performance parts. The Mishimoto Performance Aluminum Radiator for the Jeep Cherokee XJ is the ideal upgrade. With a 90-percent increase in coolant capacity and a 2-row core that is 100-percent larger than the OEM unit this radiator is designed and specifically engineered to maximize cooling efficiency. Whether you use your XJ Cherokee for daily driving or as an off-road powerhouse you need a radiator as tough as your vehicle. This radiator includes provisions for early XJs with closed coolant systems as well as later models with an open coolant system making it a direct-fit upgrade for any 1989-2001 Jeep Cherokee XJ. As with all our Jeep performance parts this Jeep Cherokee XJ radiator is covered under the Mishimoto Lifetime Warranty.
90-percent increase in coolant capacity
10-percent increase in flow vastly improves heat transfer over stock
Strutted tubes with reinforced leading edges protect against flex and impacts on or off-road
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 10.65 IN
Core Height: 10.5 IN
Core Thickness: 2 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 31.3 IN
Core Row Quantity: 2
Inlet Diameter: 1.15 IN
Inlet Location: Top Right
Outlet Diameter: 1.34 IN
Fluid Capacity: 0.82 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 35 IN
Overall Width: 2.8 IN
Install Difficulty: 4
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 1989-2001 Jeep Cherokee XJ
SellingPoint02: 90-percent increase in coolant capacity
SellingPoint03: 10-percent increase in flow vastly improves heat transfer over stock
SellingPoint04: Strutted tubes with reinforced leading edges protect against flex and impacts on or off-road
SellingPoint05: Ideal for use in hauling towing and warm climates
SellingPoint06: Includes Mishimoto M12 x 1.5 Magnetic Drain Plug to capture metallic debris and fragments in cooling system
SellingPoint07: 100-percent increase in fin surface area with a thicker 2-row core design
SellingPoint08: Provision for the older-style temperature switch and a filler neck with a pressure cap for open or closed cooling systems.
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Jeep Cherokee XJ 1989-2001
TechSpec Chassis Codes: XJ
TechSpec Core Height (in): 10.5
TechSpec Core Length (in): 31.3
TechSpec Core Thickness (in): 2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: 4.0L AMC 242 I6 OHV
TechSpec Fluid Capacity (gal): 0.82
TechSpec Includes: Mishimoto Aluminum Radiator-- Mishimoto 1.3 bar high-pressure radiator cap--(2) AC Condenser Brackets-- Overflow nipple-- Fill neck plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.15
TechSpec Material: Aluminum
TechSpec Note: May not fit vehicles equipped with HD cooling package or auxiliary transmission coolers when used in conjunction with Mishimoto fan shroud. Due to the age of many XJ Cherokees Mishimoto recommends thoroughly cleaning and flushing the cooling system prior to installing this radiator.
TechSpec Outlet (in): 1.34
TechSpec Overall Height (in): 10.65
TechSpec Overall Length (in): 35
TechSpec Overall Width (in): 2.8
TechSpec Rows: 2
