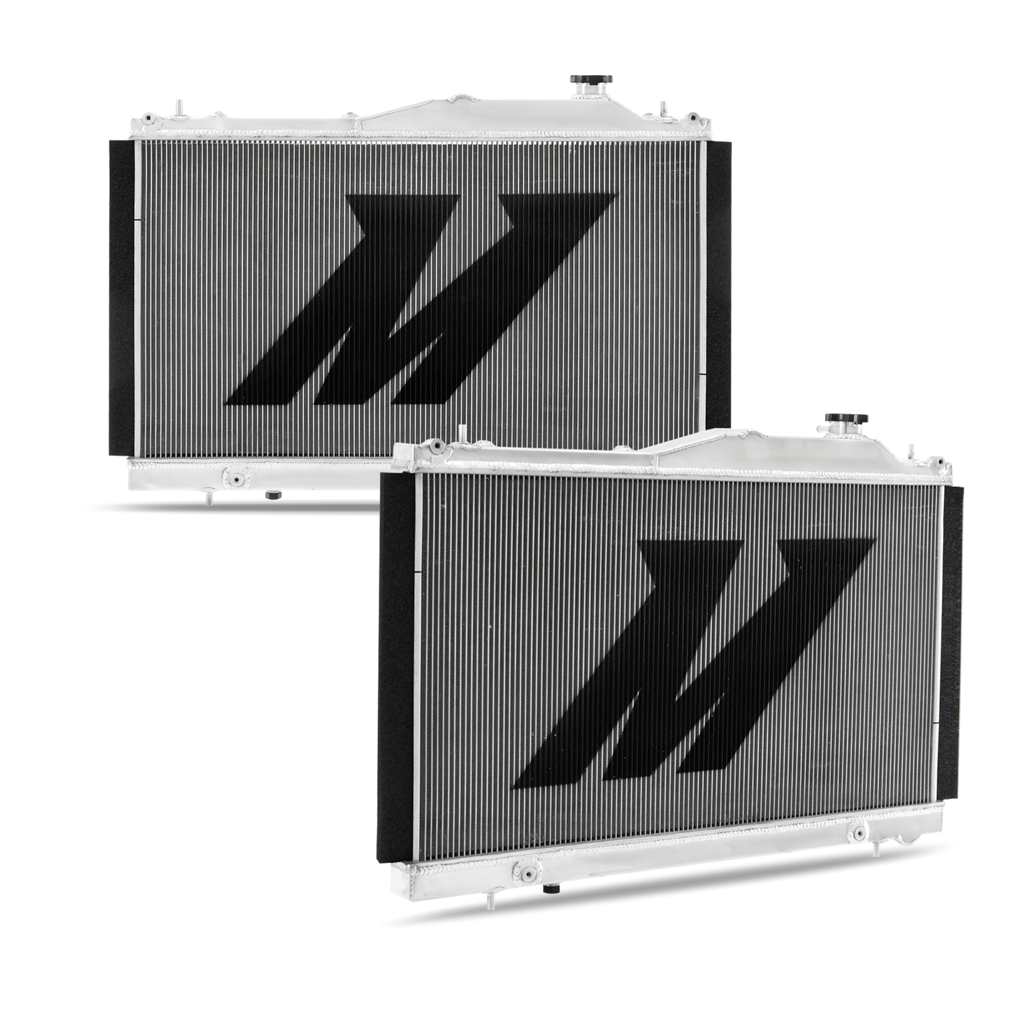

Performance Aluminum Radiator, fits Subaru WRX 2022+ - Mishimoto - MMRAD-WRX-22

The Subaru WRX has a rally pedigree unlike any other mass-market vehicle. When you step into your 2022+ WRX you're stepping into 30 years of hard-earned lessons in building a performance car that's at home on any surface. But going from racing to commuting comes with some sacrifices especially in the cooling department. While Subaru's rally cars get top-of-the-line cooling systems built for going all-out through miles of forest gravel and tarmac the WRX gets the accountants' choice of plastic end tanks and loosely packed core. With this Mishimoto performance aluminum radiator you can take your WRX closer to its rally roots and push it to its limits.----Our radiator features aluminum end tanks that are precision TIG-welded to withstand the vibrations and impacts that rally track or everyday driving throw at it. To help keep your FA24 boxer engine cool for miles of wide-open-throttle we've sandwiched a two-row 36 mm-thick core between those end tanks. This core features densely packed and louvered fins that effectively circulate air throughout the core for maximum heat transfer. The larger core also translates to a 32% increase in core volume meaning our radiator can pull more heat out of more coolant for more efficient cooling. A slotted drain plug helps direct coolant into your drain pan instead of onto the floor during service. Like all Mishimoto radiators this 2022+ Subaru WRX performance aluminum radiator is backed by our Mishimoto Lifetime Warranty.
32 percent increase in core volume over stock for improved cooling efficiency
50 percent greater fin surface area for improved heat transfer
Two-row core balances optimal flow with cooling performance
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 21.49 IN
Core Height: 15.75 IN
Core Thickness: 1.42 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 28 IN
Core Row Quantity: 2
Inlet Diameter: 1.65 IN
Inlet Location: Top Left
Outlet Diameter: 1.65 IN
Fluid Capacity: 0.978 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 29.41 IN
Overall Width: 3.99 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2022+ Subaru WRX
SellingPoint02: 32 percent increase in core volume over stock for improved cooling efficiency
SellingPoint03: 50 percent greater fin surface area for improved heat transfer
SellingPoint04: Two-row core balances optimal flow with cooling performance
SellingPoint05: Precision TIG-welded end tanks resist vibration and impacts on the street gravel or dirt
SellingPoint06: 36mm-thick core with louvered fins makes the most of air moving through the grille
SellingPoint07: Slotted drain plug makes services mess-free
SellingPoint08: Pair with MMHOSE-WRX-22 (link to MMHOSE-WRX-22) for the enhanced cooling performance
SellingPoint09: N/AMishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2022+ Subaru WRX H4 2.4L Turbo
TechSpec Chassis Codes: VB
TechSpec Core Height (in): 15.75
TechSpec Core Length (in): 28
TechSpec Core Thickness (in): 1.42
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec Engine Codes: FA24DIT
TechSpec Fluid Capacity (gal): 0.978
TechSpec Includes: (1) Mishimoto Performance Aluminum Radiator--(1) M12x1.5 Slotted Drain Plug--(1) Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.65
TechSpec Material: 6061-Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.65
TechSpec Overall Height (in): 21.49
TechSpec Overall Length (in): 29.41
TechSpec Overall Width (in): 3.99
TechSpec Rows: 2
