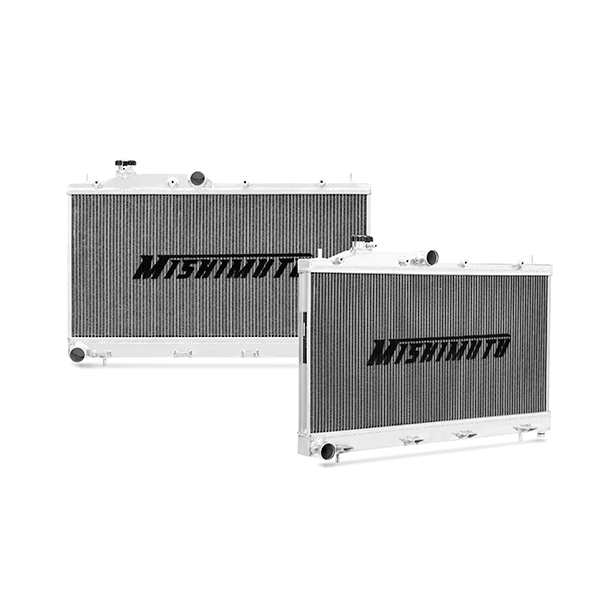

Performance Aluminum Radiator, fits Subaru WRX 2015-2021 - Mishimoto - MMRAD-WRX-15

The Mishimoto 2015-2021 Subaru WRX Performance Aluminum Radiator is designed and engineered to reduce coolant temperatures by +20 Degrees Fahrenheit (+11 Degrees Celsius ) maximize cooling efficiency by up to 15-percent and most importantly to protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto 2015+ Subaru WRX radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine. The engineers at Mishimoto designed this radiator with a 117-percent increase in coolant capacity 42-percent increase in coolant surface area and 34-percent increase in air surface area making it an ideal upgrade to keep your new FA20-DIT running cool! Every Mishimoto aluminum radiator is a direct stock fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and the Mishimoto Lifetime Warranty including accident protection.
Reduces coolant temperatures by 20 F (11 C)
117-percent increase in coolant capacity
42-percent increase in coolant surface area (tubes)
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 21.8 IN
Core Height: 13.39 IN
Core Thickness: 1.34 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 27.41 IN
Core Row Quantity: 2
Inlet Diameter: 1.54 IN
Inlet Location: Top Left
Outlet Diameter: 1.54 IN
Fluid Capacity: 2.45 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 28.1 IN
Overall Width: 3.3 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2015-2021 Subaru WRX
SellingPoint02: Reduces coolant temperatures by 20 F (11 C)
SellingPoint03: 117-percent increase in coolant capacity
SellingPoint04: 42-percent increase in coolant surface area (tubes)
SellingPoint05: 34-percent increase in air surface area (fins)
SellingPoint06: 15-percent more efficient than stock
SellingPoint07: 100-percent brazed aluminum core
SellingPoint08: TIG-welded to perfection
SellingPoint09: Included High-Pressure 1.3 Bar Radiator Cap raises the boiling point of engine coolant to provide a safer and more efficient system
SellingPoint10: Includes Magnetic Drain Plug
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015-2021 Subaru WRX--2010-2014 Subaru Legacy (non-turbo)--2010-2014 Subaru Outback
TechSpec Chassis Codes: VA
TechSpec Core Height (in): 13.39
TechSpec Core Length (in): 27.41
TechSpec Core Thickness (in): 1.34
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: FA20DIT
TechSpec Fluid Capacity (gal): 2.45
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--(4) M6 x 1.0 x 16mm Flange Hex Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.54
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): 1.54
TechSpec Overall Height (in): 21.8
TechSpec Overall Length (in): 28.1
TechSpec Overall Width (in): 3.3
TechSpec Rows: 2
