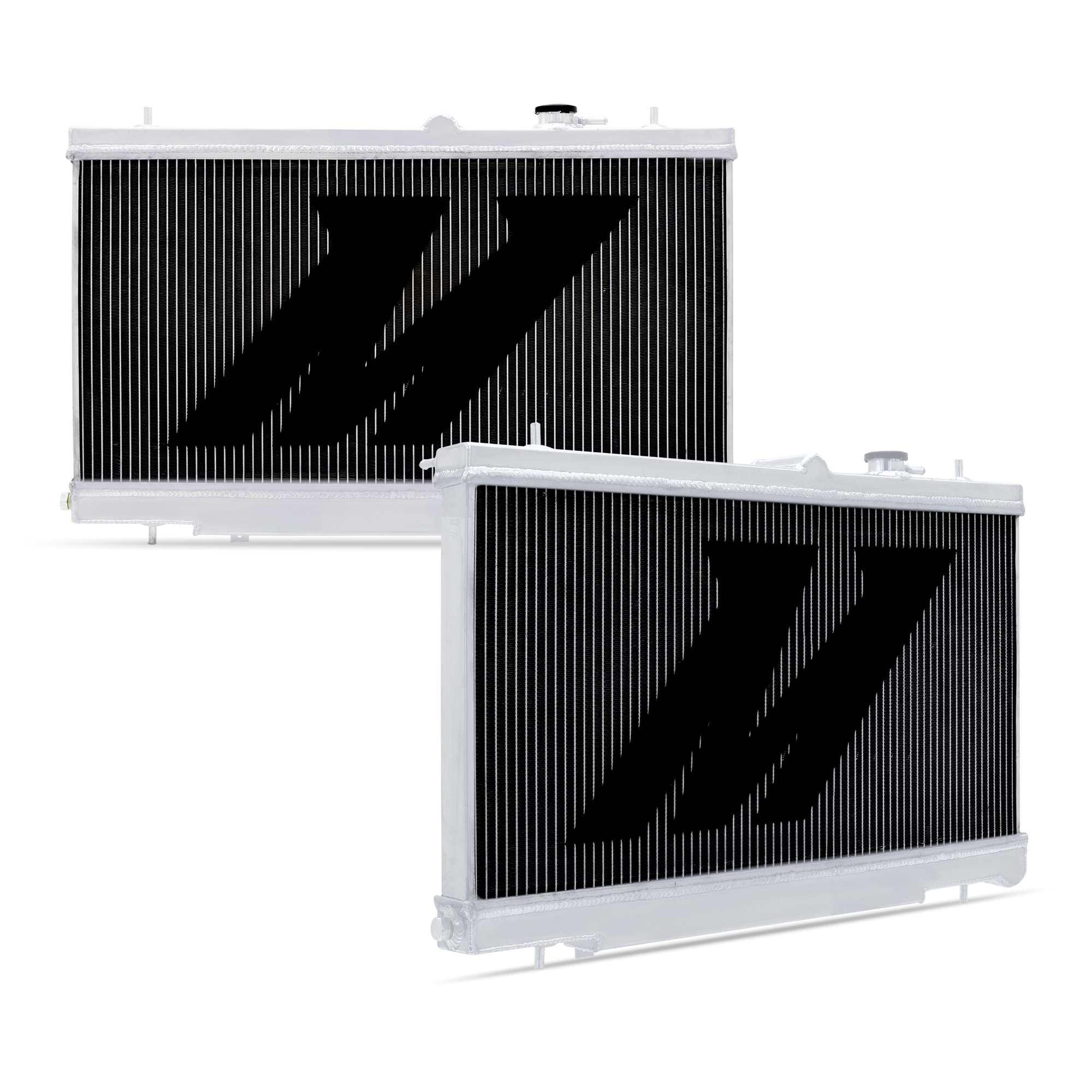

Performance Aluminum Radiator, fits Subaru WRX/STI 2001-2007 - Mishimoto - MMRAD-WRX-01

Whether you daily drive a stock STI or rallycross a modified WRX an efficient cooling system is key to extending the life of your flat-four. The plastic end tanks of the stock radiator are especially prone to cracking from years of constant variation in temperature. A radiator failure can result in overheating head gasket failure and other engine damage that can quickly put an end to a fun day at the track. Protect your investment with the Mishimoto Performance Radiator engineered specifically for the 2001-2007 Subaru WRX and STI. After identifying the radiator in these vehicles as a weak point our engineers set out to provide an efficient durable radiator that can take the abuse of competitive driving and provide the reliability you need for daily commuting. -- The Mishimoto Subaru radiator features all-aluminum construction which provides increased heat and pressure tolerance improved heat dissipation and improved cooling efficiency. The 100% brazed aluminum core and TIG-welded end tanks provide optimal durability and years of efficient and reliable service. This radiator is a complete bolt-in unit that replaces the factory radiator without requiring any modification to your Subaru. The Mishimoto Subaru Performance Aluminum Radiator includes a high-pressure 1.3 bar radiator cap. This cap effectively raises the boiling point of the coolant thus providing a higher threshold for safe temperatures and resulting in a more efficient cooling system. Additionally a second radiator cap is included for use on the expansion tank. This radiator provides a significant increase in coolant capacity which allows for aggressive driving while retaining safe coolant temperatures. Keep your Subaru on the street and out of the shop with the Mishimoto Subaru WRX and STI Performance Aluminum Radiator. As with all our products this radiator includes the Mishimoto Lifetime Warranty.
Full aluminum construction provides increased heat and pressure tolerance improved heat dissipation increased durability and improved cooling efficiency
Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
100% brazed aluminum core for maximum reliability
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 17.2 IN
Core Height: 13.54 IN
Core Thickness: 1.65 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 27.24 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.5 IN
Fluid Capacity: 2.3 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 28.4 IN
Overall Width: 2.15 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Full aluminum construction provides increased heat and pressure tolerance improved heat dissipation increased durability and improved cooling efficiency
SellingPoint02: Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
SellingPoint03: 100% brazed aluminum core for maximum reliability
SellingPoint04: Increased coolant capacity directly results in improved cooling efficiency
SellingPoint05: Now includes two 1.3 bar high-pressure caps raising the boiling point of engine coolant to provide a safer more efficient system
SellingPoint06: Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating
SellingPoint07: Designed to original equipment specifications for the 2001-2007 WRX and STI
SellingPoint08: Includes magnetic drain plug to prevent metal fragments and debris from circulating in coolant system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
TechSpec Chassis Codes: GD
TechSpec Core Height (in): 13.54
TechSpec Core Length (in): 27.24
TechSpec Core Thickness (in): 1.65
TechSpec DPI: 2703
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: EJ205--EJ255--EJ257
TechSpec Fluid Capacity (gal): 2.3
TechSpec Includes: (1) Mishimoto Radiator--(1) Mishimoto Two-Way Radiator Cap--(1) Mishimoto One-Way Radiator Cap--(1)1/16-inch NPT Plug--(1) Magnetic Drain Plug--Fan Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.--Caution--The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).--It is the installer's responsibility to check all thermostat plugs NPT plugs line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals especially during the first few miles after installation. For additional technical information contact [email protected].
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 17.2
TechSpec Overall Length (in): 28.4
TechSpec Overall Width (in): 2.15
TechSpec Rows: 2
