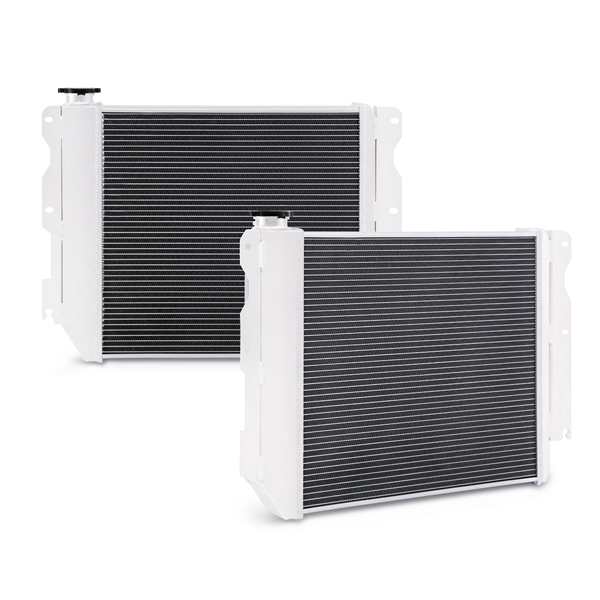

Performance Aluminum Radiator, fits Jeep Wrangler YJ TJ Chevy V8 Swap 1987-2006 - Mishimoto - MMRAD-WRAV8-87X

Performance Jeeps deserve Jeep performance parts. An ideal upgrade for your modified Jeep LS swap this 1987-2006 Jeep Wrangler Performance Aluminum Radiator is designed to handle the additional cooling needs of your Jeep Wrangler V8 swap. Whether you use your Jeep LS swap for daily driving or hit the trail on the weekends many people overlook the importance of installing an upgraded radiator in their engine. The Mishimoto Jeep Wrangler with a Chevy V8 Engine Swap X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance aluminum radiator also includes a Magnetic Drain Plug which effectively removes metal fragments circulating in the cooling system. As with all our products this Jeep LS swap radiator includes the Mishimoto Lifetime Warranty ensuring superior product quality and craftsmanship.
All-aluminum construction with durable TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 25.5 IN
Core Height: 17.5 IN
Core Thickness: 2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 18.2 IN
Core Row Quantity: 3
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.8 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 17.2 IN
Overall Width: 3.9 IN
Install Difficulty: N/A
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: All-aluminum construction with durable TIG-welded end tanks
SellingPoint02: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint03: 3-row core
SellingPoint04: Increased coolant capacity and superior heat dissipation
SellingPoint05: Billet aluminum fill neck
SellingPoint06: Brazed aluminum core
SellingPoint07: Includes magnetic drain plug to capture metallic debris and fragments in cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1987-2006 Jeep Wrangler with Chevrolet V8 Engine Swap
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 17.5
TechSpec Core Length (in): 18.2
TechSpec Core Thickness (in): 2
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 350ci (5.7L) V8
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: This radiator may not fit some vehicles equipped with power steering from the factory.----Transmission Cooler Thread Info:--On Radiator: Female M16 x 1.5--Sealing Face: 70--Hose Fitting: 22mm Hex 8mm OD
TechSpec Outlet (in): 1.8
TechSpec Overall Height (in): 25.5
TechSpec Overall Length (in): 17.2
TechSpec Overall Width (in): 3.9
TechSpec Rows: 3
