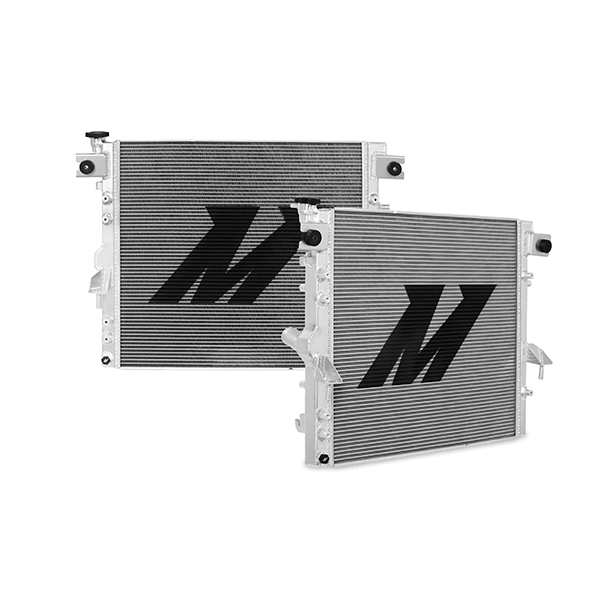

Performance Aluminum Radiator, fits Jeep Wrangler JK 2007-2018 - Mishimoto - MMRAD-WRA-07V2

Performance Jeeps deserve performance Jeep parts. That's why We've developed an update for our 2007-2018 Jeep Wrangler JK radiator. Mishimoto's V1 JK radiator has served as a substantial upgrade over the stock plastic radiator but after hearing feedback from our customers we wanted to push the limits even further. With the off-road enthusiast in mind Mishimoto has developed the V2 2007-2018 Jeep Wrangler JK radiator. This new radiator incorporates several updates that bolster the performance and durability of the Wrangler's cooling system. As with many of our radiators this updated radiator provides a substantial size increase over stock. An 18-percent greater core volume fin area and external tube area along with a 13-percent increase in coolant capacity allow MMRAD-WRA-07V2 to keep up with the cooling needs of even the most demanding off-road machine. Of course reliability is also a major concern for any Wrangler owner. Mishimoto has devoted countless hours of RandD to bring the JK market a stronger more reliable radiator. Our V2 radiator features extruded internally strutted tubes to help combat flex within the core. These strutted tubes provide the radiator with greater rigidity and durability reducing the potential for cracks and leaks. As with all our products MMRAD-WRA-07V2 is backed by Mishimoto's Lifetime Warranty for unparalleled peace of mind.
Extruded tubes with internal struts for increased strength and pressure tolerance
18-percent increase in core volume fin area and external tube area
13-percent increase in coolant capacity
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 22.1 IN
Core Height: 20.66 IN
Core Thickness: 1.26 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 22 IN
Core Row Quantity: 1
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.5 IN
Fluid Capacity: 0.62 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 29.6 IN
Overall Width: 6.4 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2007-2018 Jeep Wrangler JK
SellingPoint02: Extruded tubes with internal struts for increased strength and pressure tolerance
SellingPoint03: 18-percent increase in core volume fin area and external tube area
SellingPoint04: 13-percent increase in coolant capacity
SellingPoint05: 100-percent brazed aluminum core
SellingPoint06: TIG-welded to perfection
SellingPoint07: Includes 19 PSI high-pressure radiator cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Includes magnetic drain plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2007-2018 Jeep Wrangler JK
TechSpec Chassis Codes: JK
TechSpec Core Height (in): 20.66
TechSpec Core Length (in): 22
TechSpec Core Thickness (in): 1.26
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: EGH (3.8L)--Pentastar V6 (3.6L)
TechSpec Fluid Capacity (gal): .62
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Additional Mounting Hardware--Rubber Isolator Bushings--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 22.1
TechSpec Overall Length (in): 29.6
TechSpec Overall Width (in): 6.4
TechSpec Rows: 1
