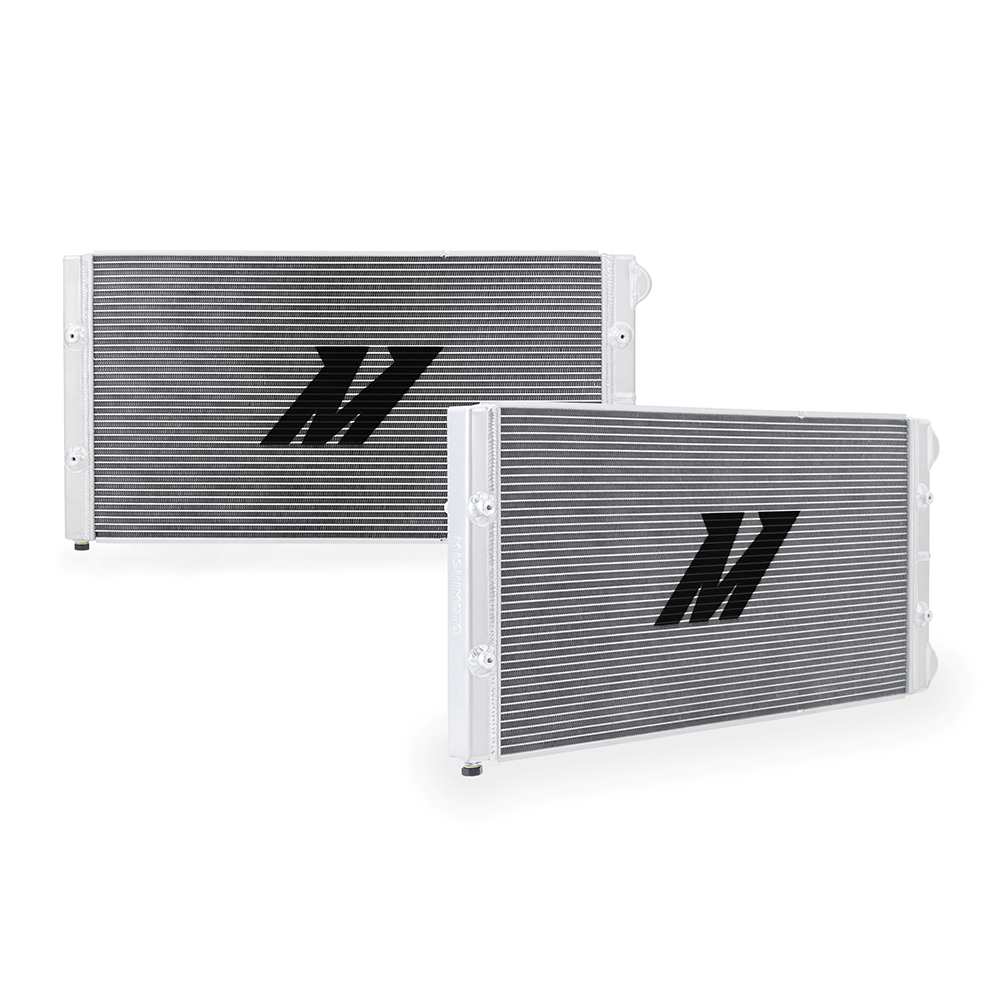

Race-Ready Performance Aluminum Radiator, 29.92 in x 15.28in x 2.75in - Mishimoto - MMRAD-UNI-RRV2

If you demand the absolute most from your cooling system look no further than the Mishimoto Race-Ready Performance Aluminum Radiator. This race-ready radiator is perfect for your custom build. Its 1.26in-thick dual-pass core ensures effective cooling while the strutted tubes can withstand more than 100 psi and resist flexing over rough terrain or hard cornering. Designed with adaptability in mind this radiator features 1-5/8in-12 female threaded inlets and outlets for use with our billet aluminum interchangeable -16AN -20AN 1.25" and 1.5" fittings. This radiator is constructed from aircraft-quality TIG-welded aluminum and like all Mishimoto radiators comes backed by our signature Mishimoto Lifetime Warranty.
Universal fitment for projects requiring exceptional fluid cooling
Unique dual pass design is precision engineered to provide substantial heat transfer
Full aluminum construction with brazed core for optimal durability and pressure tolerance
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 29.92 IN
Core Height: 13.64 IN
Core Thickness: 1.26 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 24.61 IN
Core Row Quantity: 1
Inlet Diameter: 1.63 IN
Inlet Location: Top Left
Outlet Diameter: 1.63 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 15.28 IN
Overall Width: 2.75 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Universal fitment for projects requiring exceptional fluid cooling
SellingPoint02: Unique dual pass design is precision engineered to provide substantial heat transfer
SellingPoint03: Full aluminum construction with brazed core for optimal durability and pressure tolerance
SellingPoint04: Efficient 1.26-in thick core provides substantial fluid capacity and superior fluid temperature reduction
SellingPoint05: Strong internal tubes designed to withstand over 100psi of pressure
SellingPoint06: Female threaded inlet/outlet allows for the use of available -AN fittings or standard push-on hose fittings
SellingPoint07: Compact yet highly efficient design ideal for use on track-specific vehicles requiring an extremely effective heat exchanger
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 13.64
TechSpec Core Length (in): 24.61
TechSpec Core Thickness (in): 1.26
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto Race-Ready Performance Aluminum Radiator--(2) 1/8-inch NPT Plug-- Mishimoto Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.63
TechSpec Material: N/A
TechSpec Note: This radiator is only compatible with our black radiator fittings with 1-5/8-inch-12 threads. It is not compatible with our previous silver fittings with metric threads.----This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.63
TechSpec Overall Height (in): 29.92
TechSpec Overall Length (in): 15.28
TechSpec Overall Width (in): 2.75
TechSpec Rows: 1
