Universal 9in Drag Race Performance Aluminum Radiator, Natural - Mishimoto - MMRAD-UNI-DRGN

Upgrade to the Mishimoto radiator to maximize cooling efficiency durability and performance for your drag car ensuring you stay ahead of the competition with superior cooling capabilities and robust design. The Mishimoto Universal Drag Race Performance Aluminum Radiator is engineered for peak performance on the track. It features convenient threaded adapters for easy hose installation along with threaded inlet and outlet options for optional -16AN fittings ensuring flexibility in setup. Magnetic drain plugs enhance durability and maintenance ease while multiple mounting points and universal brackets cater to various installation preferences. Backed by Mishimoto's Lifetime Warranty this radiator guarantees reliability and peace of mind.
Includes two 1 1/4" barbed adapters for slip-on hoses
Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately)
Magnetic drain plugs on both end tanks ensure easy draining no matter the mounting setup
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 10.16 IN
Core Height: 9.37 IN
Core Thickness: 2.68 IN
Core Material: Aluminum
Outlet Location: Bottom Center
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 9.37 IN
Core Row Quantity: 2
Inlet Diameter: 1 IN
Inlet Location: Top Center
Outlet Diameter: 1 IN
Fluid Capacity: 0.68 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 14.7 IN
Overall Width: 3.52 IN
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Includes two 1 1/4 inch barbed adapters for slip-on hoses
SellingPoint02: Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately)
SellingPoint03: Magnetic drain plugs on both end tanks ensure easy draining no matter the mounting setup
SellingPoint04: Massive 2.7 inch (68mm) thick two-row core for superior heat rejection
SellingPoint05: 9 inch fan draws 700CFM complementing our optimized core
SellingPoint06: Multiple mounting points available to fit any custom build
SellingPoint07: Includes 1/8 inch (3mm) thick powder-coated steel mounting brackets
SellingPoint08: Available in both natural or stealth black powder coat finishes
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 9.37
TechSpec Core Length (in): 9.37
TechSpec Core Thickness (in): 2.68
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 0.68

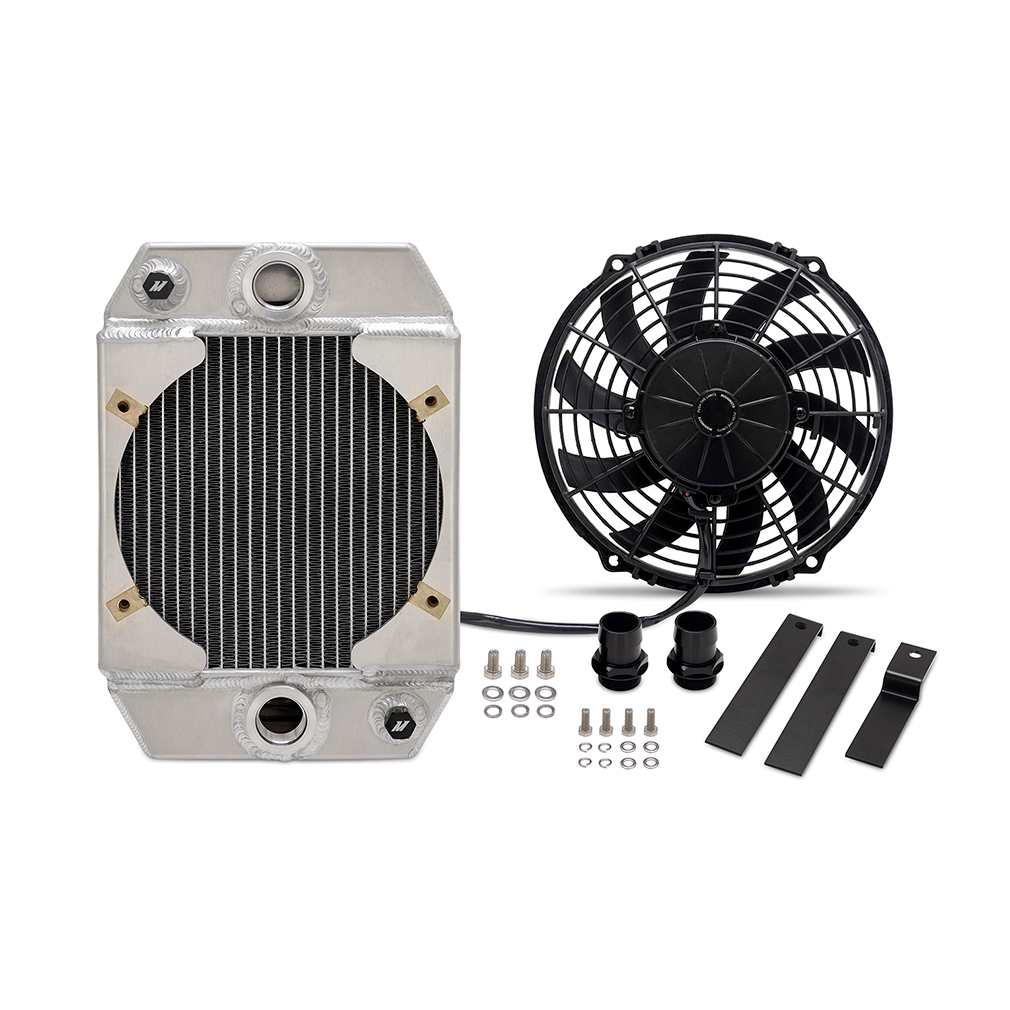

TechSpec Includes: (1) Mishimoto Performance Radiator--(2) -16 ORB To 1-1/4 inch Hose Barb Fittings--(2) Magnetic Slotted Drain Plugs--(1) 9 inch HD Fan--(3) Universal Mounting Brackets--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet (in): -16 ORB
TechSpec Material: 3A21-Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): -16 ORB
TechSpec Overall Height (in): 10.16
TechSpec Overall Length (in): 14.7
TechSpec Overall Width (in): 3.52
TechSpec Rows: 2
