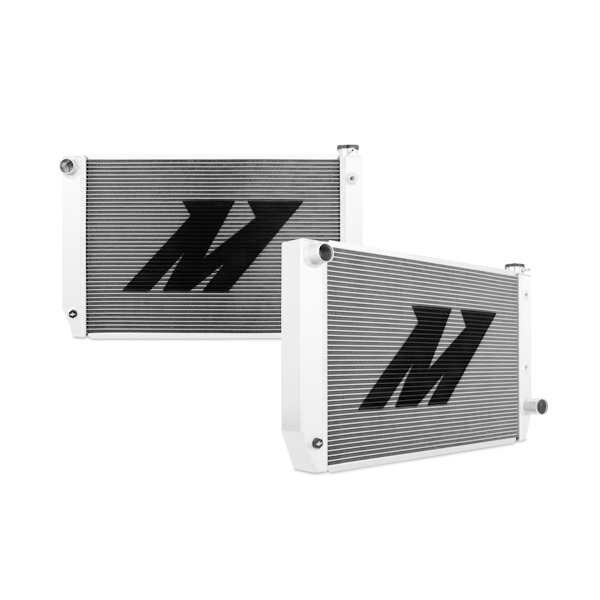

Universal Circle Track Radiator, 31.0in x 19.0in x 3.0in, MT and AT - Mishimoto - MMRAD-UNI-CT

Circle track racing is racing at its finest.Regardless if you have a V8 or a 4 cylinder for power or if you run on dirt or macadam tracks you race to win.At Mishimoto we know that nothing beats the thrill of winning a race and the prize money doesn't hurt either.Both seasoned veterans and first time racers need tough and dependable parts on their car to be a serious contender.That's why Mishimoto has released our ultra-durable light weight 2-row Universal Circle Track Radiator - because you need the best to be the best.
Applicable for use in 4 cylinder or V8 circle track vehicles
Full aluminum construction with brazed core for optimal durability and pressure tolerance
Efficient two-row core measuring 2.24-in thick provides substantial fluid capacity and superior fluid temperature reduction
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 31.9 IN
Core Height: 19.21 IN
Core Thickness: 2.24 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.98 IN
Core Row Quantity: 2
Inlet Diameter: 1.5 IN
Inlet Location: Top Left
Outlet Diameter: 1.77 IN
Fluid Capacity: 0.75 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.5 IN
Overall Width: 5.6 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Applicable for use in 4 cylinder or V8 circle track vehicles
SellingPoint02: Full aluminum construction with brazed core for optimal durability and pressure tolerance
SellingPoint03: Efficient two-row core measuring 2.24-in thick provides substantial fluid capacity and superior fluid temperature reduction
SellingPoint04: Includes in-tank transmission cooler to maintain optimal transmission performance during sustained race use
SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 19.21
TechSpec Core Length (in): 25.98
TechSpec Core Thickness (in): 2.24
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 0.75
TechSpec Includes: Mishimoto Radiator w/ In-Tank Transmission Cooler-- Mishimoto Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Note: Transmission cooler thread: 1/4-inch-18 NPT x 14mm
TechSpec Outlet (in): 1.77
TechSpec Overall Height (in): 31.9
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (in): 5.6
TechSpec Rows: 2
