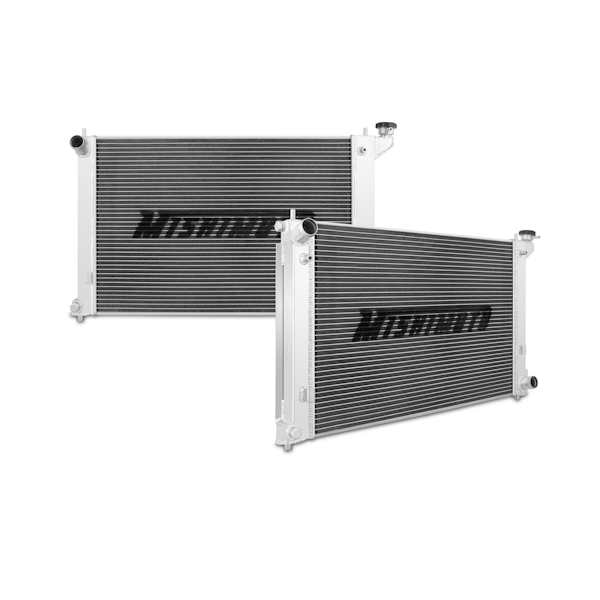

Performance Aluminum Radiator, fits Scion tC 2005-2010 - Mishimoto - MMRAD-TC-05

The Mishimoto Performance Aluminum Radiator for the Scion tC has been designed and engineered to maximize cooling efficiency by up to 30-percent and protect your car from overheating.Mishimoto now offers the first performance radiator available for the 2005-2010 Scion tC featuring a lightweight dual core 100-percent brazed aluminum and polished end tanks.Every Mishimoto performance radiator is designed for a direct OEM fit making installation effortless with no cutting or modification required.This is the perfect upgrade to your stock Scion tC radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection! For even more cooling efficiency check out the Mishimoto'scion tC hose kit.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.57-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 30.5 IN
Core Height: 16.06 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 23.62 IN
Core Row Quantity: 2
Inlet Diameter: 1.34 IN
Inlet Location: Top Left
Outlet Diameter: 1.34 IN
Fluid Capacity: 2.03 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 18.2 IN
Overall Width: 2.07 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2005-2010 Scion tC 2.4L
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.57-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for use on the street or track
SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint07: Engineered for use with both stock and highly modified vehicles
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2007-2008 Scion tC SPEC
TechSpec Chassis Codes: ANT20
TechSpec Core Height (in): 16.06
TechSpec Core Length (in): 23.62
TechSpec Core Thickness (in): 1.57
TechSpec DPI: 2776
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 2AZFE
TechSpec Fluid Capacity (gal): 2.03
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.34
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.34
TechSpec Overall Height (in): 30.5
TechSpec Overall Length (in): 18.2
TechSpec Overall Width (in): 2.07
TechSpec Rows: 2
