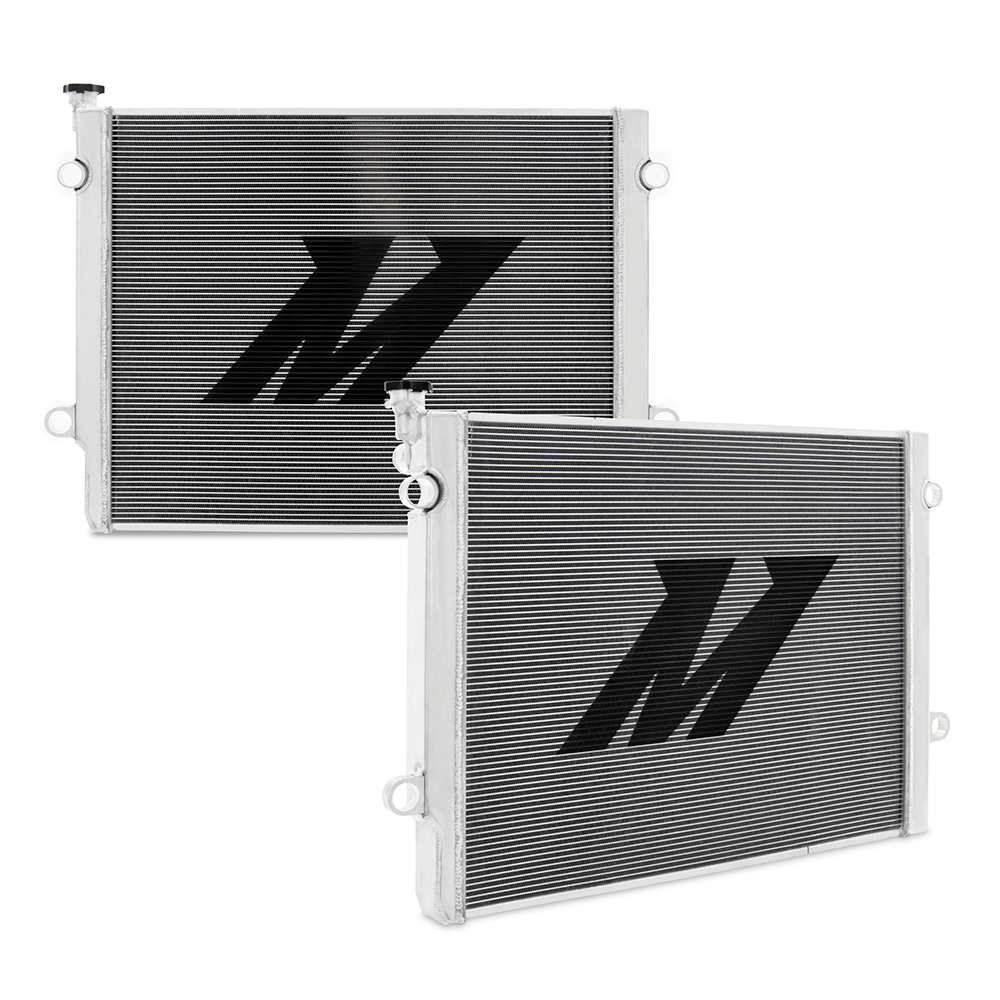

Performance Aluminum Radiator, fits Toyota Tacoma 2.7L/4.0L 2005-2015 - Mishimoto - MMRAD-TAC-05

Toyota's Tacoma has been a force in the small pickup category for years and has continued to impress with each generation proving more durable economical and practical than the previous. The second-generation Tacoma is no different offering a tremendous value and that rugged dependability the name is known for. To continue supporting our Tacoma customers Mishimoto has developed an all-new performance aluminum radiator for the 2.7L/4.0L Tacoma. Our radiator features a full-aluminum design and precisely TIG-welded end tanks for a substantial improvement in durability over the stock plastic radiator. Our aluminum radiator features a 1.65"-thick two-row core with strategically designed fins for maximum cooling efficiency. Packing more fins into our core results in an 84-percent increase in external fin surface area over the stock radiator. This fin surface area increase directly impacts heat transfer resulting in a 53-percent improvement in heat rejection. The stock Tacoma radiator features an in-tank transmission cooler for automatic models. We've also incorporated an extremely efficient liquid-to-liquid stacked plate transmission cooler into the end tank of our radiator ensuring proper control of transmission fluid temperatures. As with all our products this second-generation Toyota Tacoma Performance Aluminum Radiator includes our signature Mishimoto Lifetime Warranty.
All-aluminum design with precision TIG-welded end tanks
Features two-row 1.65-in core with strategically designed fins for maximum cooling efficiency
47-percent increase in core volume
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: No
Overall Height: 22.2 IN
Core Height: 21.4 IN
Core Thickness: 1.65 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 25.6 IN
Core Row Quantity: 2
Inlet Diameter: 1.38 IN
Inlet Location: Top Right
Outlet Diameter: 1.38 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 30.9 IN
Overall Width: 2.2 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2005-2015 Toyota Tacoma with 2.7L/4.0L
SellingPoint02: All-aluminum design with precision TIG-welded end tanks
SellingPoint03: Features two-row 1.65-in core with strategically designed fins for maximum cooling efficiency
SellingPoint04: 47-percent increase in core volume
SellingPoint05: 84-percent increase in external fin surface area for greater heat transfer
SellingPoint06: 53-percent improvement in heat rejection
SellingPoint07: Efficient in-tank transmission cooler ensures optimal transmission fluid temperatures
SellingPoint08: Includes Mishimoto Magnetic Drain Plug to capture metallic debris within the cooling system
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Toyota Tacoma I4 (2.7) 2005-2015--Toyota Tacoma V6 (4.0L) 2005-2015
TechSpec Chassis Codes: N220--N240--N250--N260--N270
TechSpec Core Height (in): 21.4
TechSpec Core Length (in): 25.6
TechSpec Core Thickness (in): 1.65
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: 2TR-FE--1GR-FE
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Aluminum Radiator--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.38
TechSpec Overall Height (in): 22.2
TechSpec Overall Length (in): 30.9
TechSpec Overall Width (in): 2.2
TechSpec Rows: 2
