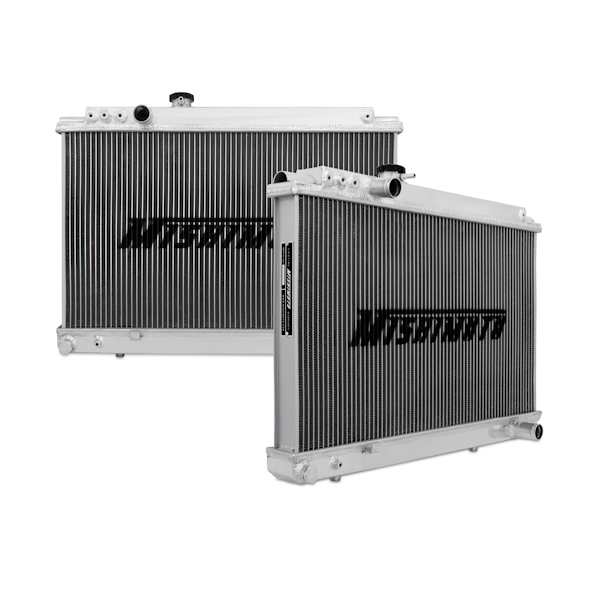

Performance Aluminum Radiator, fits Toyota Supra 1986-1992 - Mishimoto - MMRAD-SUP-86

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Toyota Supra radiator.Designed and engineered to maximize cooling efficiency boost engine functions and most importantly protect your car from overheating.It will undoubtedly extend the lifetime and performance of your Supra engine whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum Toyota Supra radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
Applicable for both turbo and non-turbo models
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 2.2-in thick efficient brazed aluminum core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 26.5 IN
Core Height: 25.12 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.76 IN
Core Row Quantity: 2
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 2.45 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 20.2 IN
Overall Width: 2.7 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 1986-1992 MKIII Toyota Supra 3.0L
SellingPoint02: Applicable for both turbo and non-turbo models
SellingPoint03: Full aluminum construction including durable TIG-welded end tanks
SellingPoint04: Features a two-row 2.2-in thick efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for use on the street or track
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Chassis Codes: MA70JZA70
TechSpec Core Height (in): 25.12
TechSpec Core Length (in): 14.76
TechSpec Core Thickness (in): 2.2
TechSpec DPI: 196
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: 7MGE7MGTE
TechSpec Fluid Capacity (gal): 2.45
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 26.5
TechSpec Overall Length (in): 20.2
TechSpec Overall Width (in): 2.7
TechSpec Rows: 2
