Performance Aluminum Radiator Kit, fits Toyota GR Supra 3.0L 2020+ - Mishimoto - MMRAD-SUP-20K

Help your 2020+ Toyota GR Supra 3.0L stay cool with the Mishimoto Performance Aluminum Radiator kit! The latest Supra has taken over the role of being an icon for the tuning community but even being backed by BMW high coolant temperatures can still bring your track day or canyon carve to a screeching halt. It's a tag-team effort to keep the A90 Supra cool and we here at Mishimoto made sure to overhaul both the primary and auxiliary radiators for optimal cooling performance. All three radiators were revised from the ground up starting with the construction. We ditched the slim stock core and plastic end tanks in favor of a full aluminum TIG-welded construction sure to stand up to the abuse from the street track or drag strip. The primary radiator features a 1.65" thick core not only increasing fluid capacity but also the core volume by 31-percent for improved heat dissipation. In addition the updated tube-and-fin design employed on this radiator also expands the external fin surface area by 57-percent to further improve the transfer of heat. Finally to ensure a rock-solid core we also utilized strutted tubes on our primary radiator for a core that resists chassis flex preventing cracks or leaks in your cooling system. The auxiliary radiators also received a similar treatment and have been revamped with a full aluminum construction. Both cores measure in at 1.57" thick with a 30-percent boost in core volume and 180-percent increase in external fin surface area for maximum cooling properties. All three cores are available in a polished finish and include the Mishimoto Lifetime Warranty for a worry-free installation.

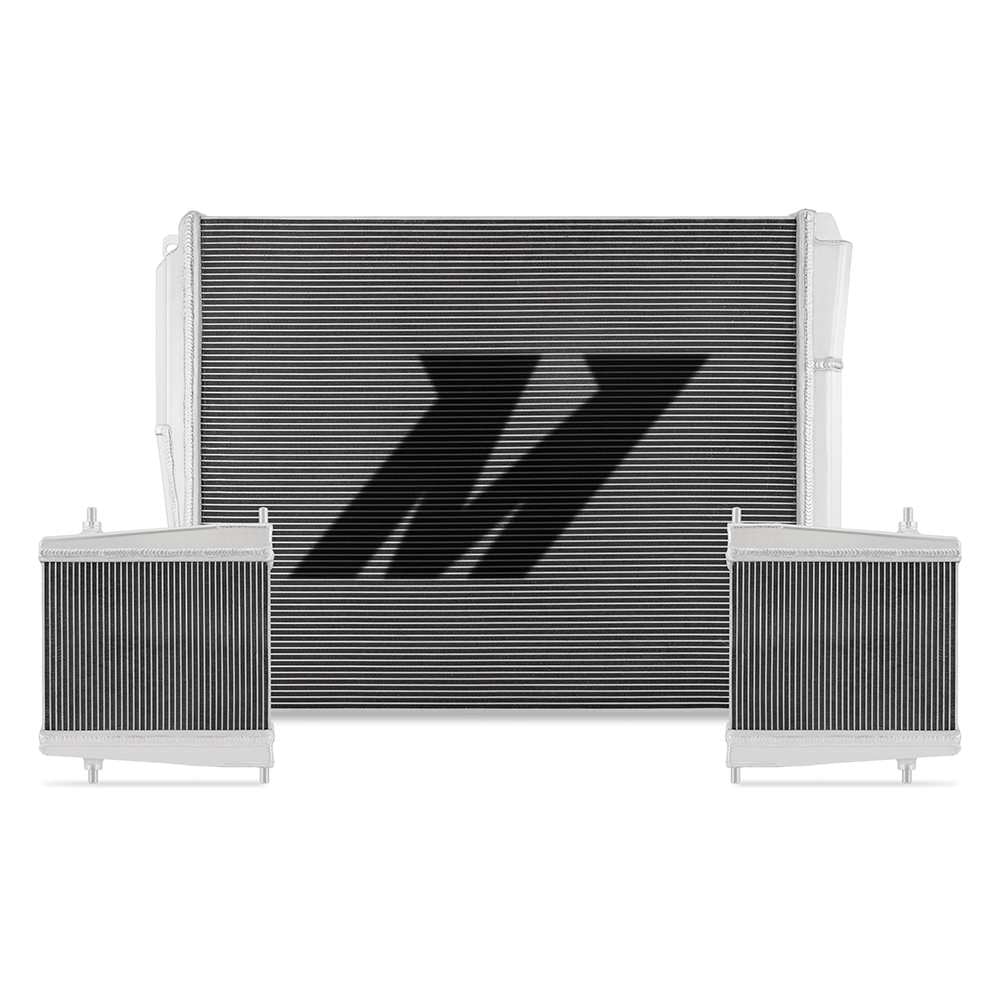

Kit includes Mishimoto Performance Aluminum Radiator and Performance Auxiliary Radiators
Primary radiator features 1.65-in thick core 31-percent increase in core volume and 57-percent increase in fin surface area
Auxiliary radiators feature 1.57-in thick core 30-percent increase in core volume and increase in fin surface area by 180-percent
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: No
Overall Height: 27 IN
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 0 IN
Core Row Quantity: 1
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.7 IN
Overall Width: 4.3 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2020+ Toyota GR Supra 3.0L
SellingPoint02: Kit includes Mishimoto Performance Aluminum Radiator and Performance Auxiliary Radiators
SellingPoint03: Primary radiator features 1.65-in thick core 31-percent increase in core volume and 57-percent increase in fin surface area
SellingPoint04: Auxiliary radiators feature 1.57-in thick core 30-percent increase in core volume and increase in fin surface area by 180-percent
SellingPoint05: Full aluminum construction including durable TIG-welded end tanks
SellingPoint06: Strutted tubes incorporated on primary radiator for maximum durability
SellingPoint07: Increased fluid capacity for optimal heat dissipation
SellingPoint08: Efficient temperature regulation for both stock and modified vehicles
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2020+ Toyota GR Supra 3.0L
TechSpec Chassis Codes: A90
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: B58
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Performance Primary Radiator--(2) Performance Auxiliary Radiators--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 27
TechSpec Overall Length (in): 19.7
TechSpec Overall Width (in): 4.3
TechSpec Rows: 1
