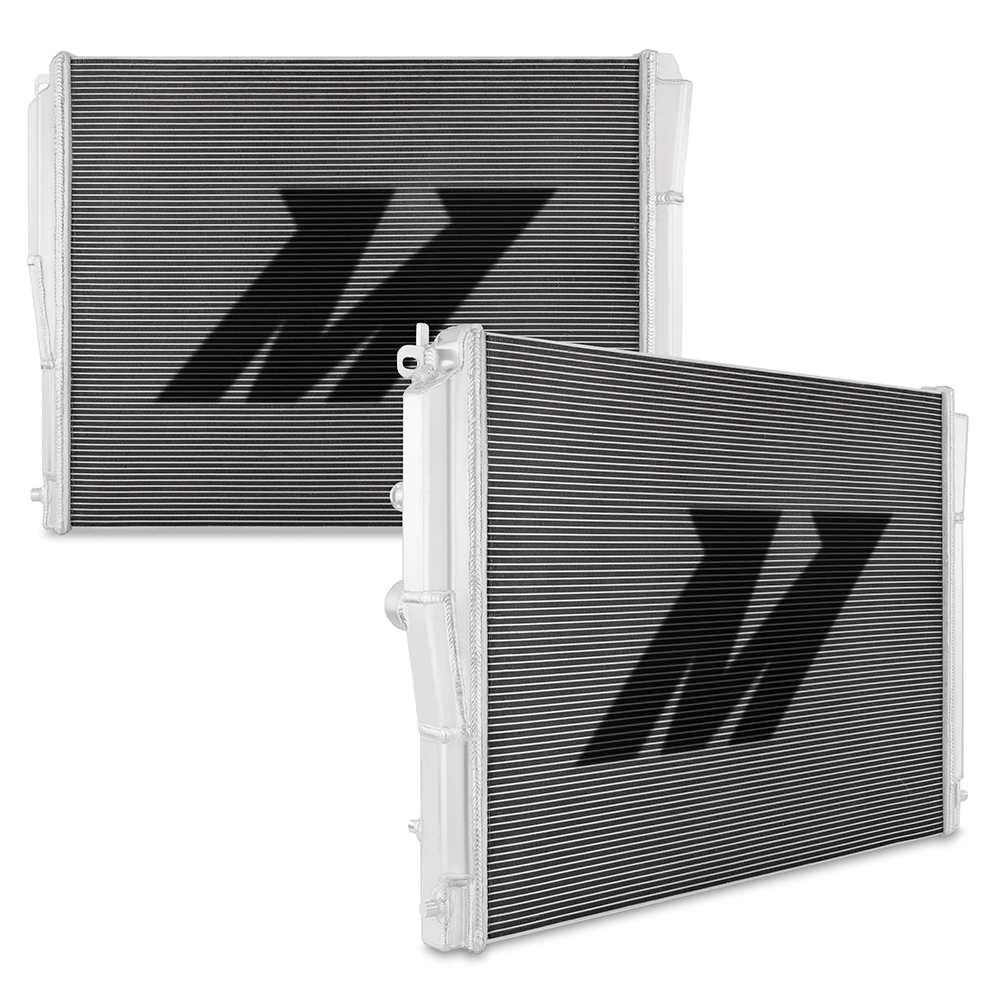

Performance Aluminum Radiator, fits Toyota GR Supra 3.0L 2020+ - Mishimoto - MMRAD-SUP-20

Help your 2020+ Toyota GR Supra 3.0L stay cool with the Mishimoto Performance Aluminum Radiator! The latest Supra has taken over the role of being an icon for the tuning community but even being backed by BMW high coolant temperatures can still bring your track day or canyon carve to a screeching halt. Luckily our radiator is designed to keep your B58 running at optimal temperatures. For starters we entirely replaced the slim stock core and plastic end tanks with a full aluminum TIG-welded construction sure to stand up to the abuse from the street track or drag strip. The core on our new design has also grown. We expanded the core's thickness to 1.65" which bumps the core volume by 31-percent over the stock unit. The updated tube-and-fin design employed on this radiator also expands the external fin surface area by 57-percent for maximum heat dissipation properties primarily when used in conjunction with the Mishimoto Performance Auxiliary Radiators. To ensure a long-lasting radiator we also incorporated strutted tubes throughout the core for improved stability and drastically reduce the risk of breaks or leaks. The Mishimoto Performance Aluminum Radiator is available in a polished finish for a sleek look under the hood of your A90 Supra. Also included is the Mishimoto Lifetime Warranty for a worry-free installation.
31-percent increase in core volume
57-percent increase in fin surface area
Features a 1.65-in thick efficiently brazed aluminum core
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: No
Overall Height: 27 IN
Core Height: 0 IN
Core Thickness: 0 IN
Core Material: Aluminum
Outlet Location: Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 0 IN
Core Row Quantity: 1
Inlet Diameter: 1.25 IN
Inlet Location: Top Left
Outlet Diameter: 1.25 IN
Fluid Capacity: 0 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 19.7 IN
Overall Width: 4.3 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2020+ Toyota GR Supra 3.0L
SellingPoint02: 31-percent increase in core volume
SellingPoint03: 57-percent increase in fin surface area
SellingPoint04: Features a 1.65-in thick efficiently brazed aluminum core
SellingPoint05: Full aluminum construction including durable TIG-welded end tanks
SellingPoint06: Strutted tubes for maximum durability
SellingPoint07: Increased fluid capacity for optimal heat dissipation
SellingPoint08: Efficient temperature regulation for both stock and modified vehicles
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: BMW 330e xDrive Base 2.0L L4 2021-2022--BMW 330e Base 2.0L L4 2021-2022--BMW 330i xDrive Base 2.0L L4 2019-2022--BMW 330i Base 2.0L L4 2019-2022--BMW Z4 M40i First Edition 3.0L L6 2019-2020--BMW Z4 M40i 3.0L L6 2022-2026--BMW Z4 sDrive M40i 3.0L L6 2020-2021--BMW Z4 sDrive30i 2.0L L4 2019-2026--Toyota GR Supra 45th Anniversary Edition 2.0L L4 2024--Toyota GR Supra 45th Anniversary Edition 3.0L L6 2024--Toyota GR Supra A91 Edition 2.0L L4 2021-2022--Toyota GR Supra A91 Edition 3.0L L6 2021-2022--Toyota GR Supra A91-MT Edition 2.0L L4 2023--Toyota GR Supra A91-MT Edition 3.0L L6 2023--Toyota GR Supra Base 2.0L L4 2021-2024--Toyota GR Supra Base 3.0L L6 2020-2026--Toyota GR Supra Launch Edition 3.0L L6 2020--Toyota GR Supra Premium 2.0L L4 2021-2024--Toyota GR Supra Premium 3.0L L6 2020-2026
TechSpec Chassis Codes: A90
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: B58
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Performance Aluminum Radiator--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.25
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.25
TechSpec Overall Height (in): 27
TechSpec Overall Length (in): 19.7
TechSpec Overall Width (in): 4.3
TechSpec Rows: 1
