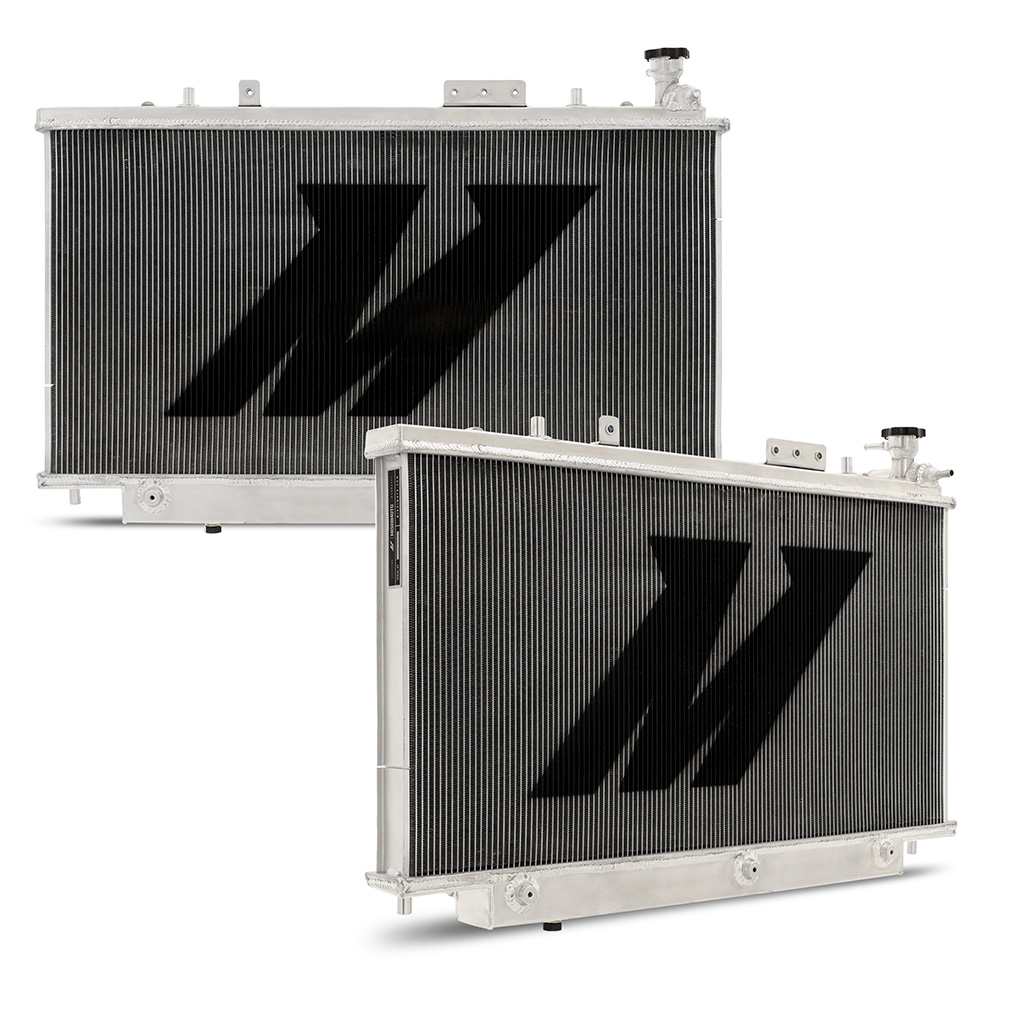

Performance Aluminum Radiator, fits Chevrolet SS 2014-2017 - Mishimoto - MMRAD-SS-14

The 2014-2017 Chevy SS is the ultimate modern sleeper. With four doors and a relatively unassuming exterior most on the road wouldn't know a 415 HP 6.2L LS3 lurks under the hood that's capable of propelling the family sedan to 60 MPH in 4.5 seconds. That would be enough for most people but you bought an LS-powered commuter. You're not like most people. Chances are you've already got a few power-adding parts under the hood and with more power comes more heat.----Luckily Mishimoto has developed a massive upgrade for the stock radiator in your 2014-2017 SS. Our all-aluminum radiator features a two-row 55 mm-thick core that expands core volume by 84 percent compared to the stock radiator. That extra volume means you can hammer the throttle for longer without worrying about coolant temps creeping up. You need an efficient core to pull enough heat out with that much volume. Our radiator increases fin surface area by a whopping 143 percent to effectively transfer heat from the coolant into the passing air.----This Mishimoto performance radiator for the 2014-2017 SS is a beast just like your car but performance isn't everything. Our radiator is built to last with precision TIG-welded aluminum end tanks that won't crack or split over time like the stock plastic tanks. We know the little things make a difference so we've included a slotted drain plug that makes maintenance mess-free. And like all Mishimoto Radiators this Chevy SS radiator is backed by our Mishimoto Lifetime Warranty.
84 percent increase in core volume lets you spend more time on the throttle without overheating
143 percent increase in fin surface area vastly improves heat transfer
50 mm-thick two-row core balances optimal flow and heat transfer
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 21.94 IN
Core Height: 15.55 IN
Core Thickness: 1.97 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 30.39 IN
Core Row Quantity: 2
Inlet Diameter: 1.26 IN
Inlet Location: Top Left
Outlet Diameter: 1.26 IN
Fluid Capacity: 1.27 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 31.71 IN
Overall Width: 6.05 IN
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2014-2017 Chevrolet SS
SellingPoint02: 84 percent increase in core volume lets you spend more time on the throttle without overheating
SellingPoint03: 143 percent increase in fin surface area vastly improves heat transfer
SellingPoint04: 50 mm-thick two-row core balances optimal flow and heat transfer
SellingPoint05: Precision TIG-welded end tanks resist vibration and impacts on the track or street
SellingPoint06: Slotted drain plug makes maintenance mess-free
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Chevrolet SS V8 6.2L 2014-2017--Chevrolet Caprice PPV V8 6.0L 2011-2017
TechSpec Chassis Codes: VF--Zeta
TechSpec Core Height (in): 15.55
TechSpec Core Length (in): 30.39
TechSpec Core Thickness (in): 1.97
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec Engine Codes: LS3--L77
TechSpec Fluid Capacity (gal): 1.27
TechSpec Includes: (1) Performance Aluminum Radiator--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.26
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.26
TechSpec Overall Height (in): 21.94
TechSpec Overall Length (in): 31.71
TechSpec Overall Width (in): 6.05
TechSpec Rows: 2
