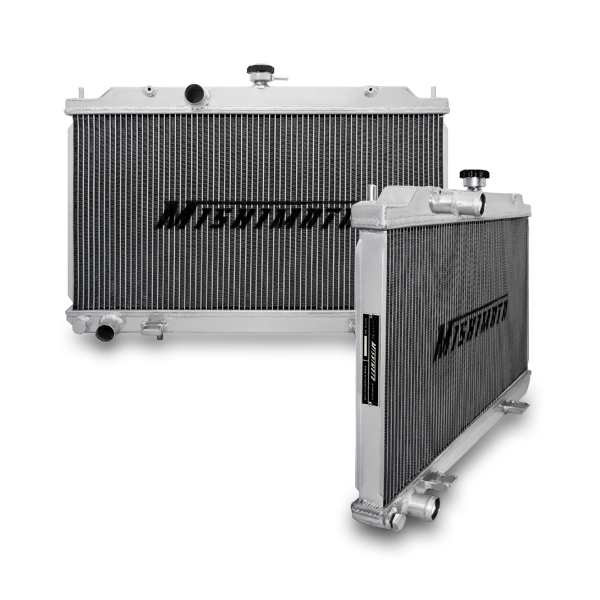

Performance Aluminum Radiator, fits Nissan Sentra SE-R / Spec-V 2002-2006 - Mishimoto - MMRAD-SEN-00

The Mishimoto performance aluminum radiator for the Nissan Sentra SE-R/Spec-V is designed and engineered to maximize cooling efficiency by up to 30-percent boost engine functions and most importantly protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum 2002-2005 Sentra radiator features a lightweight dual core 100-percent brazed aluminum and polished end tanks enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Sentra radiator.
Full aluminum construction including durable TIG-welded end tanks
Features a two-row 1.42-in thick efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 28 IN
Core Height: 27.08 IN
Core Thickness: 1.42 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: Yes
Core Length: 14.37 IN
Core Row Quantity: 2
Inlet Diameter: 1.4 IN
Inlet Location: Top Left
Outlet Diameter: 1.4 IN
Fluid Capacity: 2.03 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 19.8 IN
Overall Width: 1.92 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2002-2006 Nissan Sentra SE-R/Spec-V
SellingPoint02: Full aluminum construction including durable TIG-welded end tanks
SellingPoint03: Features a two-row 1.42-in thick efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for street and/or track use
SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant providing a safer and more efficient system
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2002-2006 Nissan Sentra SE-R--2002-2006 Nissan Sentra Spec-V--2003 Nissan Sentra Limited Edition
TechSpec Chassis Codes: B15
TechSpec Core Height (in): 27.08
TechSpec Core Length (in): 14.37
TechSpec Core Thickness (in): 1.42
TechSpec DPI: 2469
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: QR25DE
TechSpec Fluid Capacity (gal): 2.03
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.4
TechSpec Material: Aluminum
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in): 1.4
TechSpec Overall Height (in): 28
TechSpec Overall Length (in): 19.8
TechSpec Overall Width (in): 1.92
TechSpec Rows: 2
